Toyota MATRIX — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87818COVER, INNER RR VIEW MIRROR
main87818-02050
87908BMIRROR SUB-ASSY, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87909BMIRROR SUB-ASSY, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
SUPER WHITE 2,040
SPORTS PACKAGE,SUPER WHITE 2,040
SILVER ME.,1F7
SPORTS PACKAGE,SILVER ME.,1F7
SPORTS PACKAGE,GRAY ME.,1G3
GRAY ME.,1G3
SPORTS PACKAGE,BLACK MC.,209
BLACK MC.,209
RED M.M.,3R3
SPORTS PACKAGE,RED,3L5
RED,3L5
SPORT PACKAGE(CANADA),RED,3L5
SPORTS PACKAGE,ORANGE ME.,4T6
ORANGE ME.,4T6
DK.GREEN MC.,6V4
SPORT PACKAGE(CANADA),DK.GREEN MC.,6V4
BLUE ME.,8T7
SPORTS PACKAGE,BLUE ME.,8T7
SPORTS PACKAGE,DK.BLUE MC.,8S6
DK.BLUE MC.,8S6
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
SPORTS PACKAGE,SUPER WHITE 2,040
SUPER WHITE 2,040
SILVER ME.,1F7
SPORTS PACKAGE,SILVER ME.,1F7
GRAY ME.,1G3
SPORTS PACKAGE,GRAY ME.,1G3
SPORTS PACKAGE,BLACK MC.,209
BLACK MC.,209
RED M.M.,3R3
RED,3L5
SPORT PACKAGE(CANADA),RED,3L5
SPORTS PACKAGE,RED,3L5
SPORTS PACKAGE,ORANGE ME.,4T6
ORANGE ME.,4T6
DK.GREEN MC.,6V4
SPORT PACKAGE(CANADA),DK.GREEN MC.,6V4
BLUE ME.,8T7
SPORTS PACKAGE,BLUE ME.,8T7
SPORTS PACKAGE,DK.BLUE MC.,8S6
DK.BLUE MC.,8S6
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
9016360024
main90163-60024
90163A0003
main90163-A0003

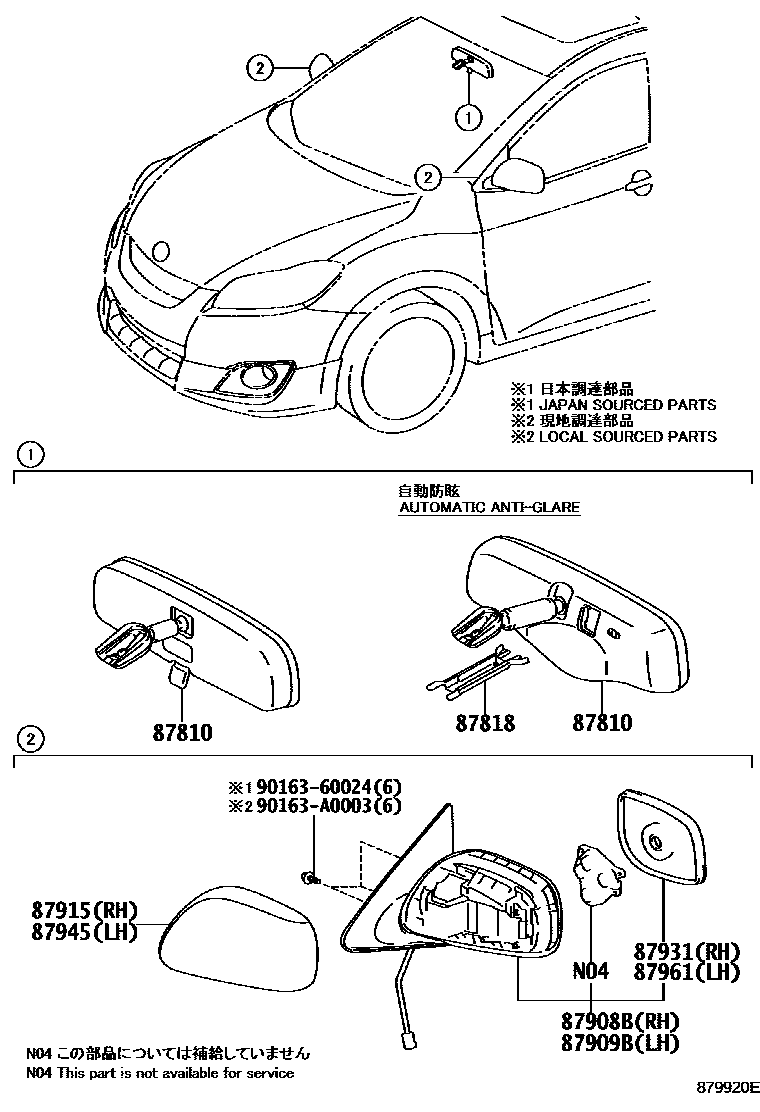

10 parts on this diagram · 1 diagram in section
MIRROR for Toyota MATRIX
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota MATRIX. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH, COVER, OUTER MIRROR, RH.
