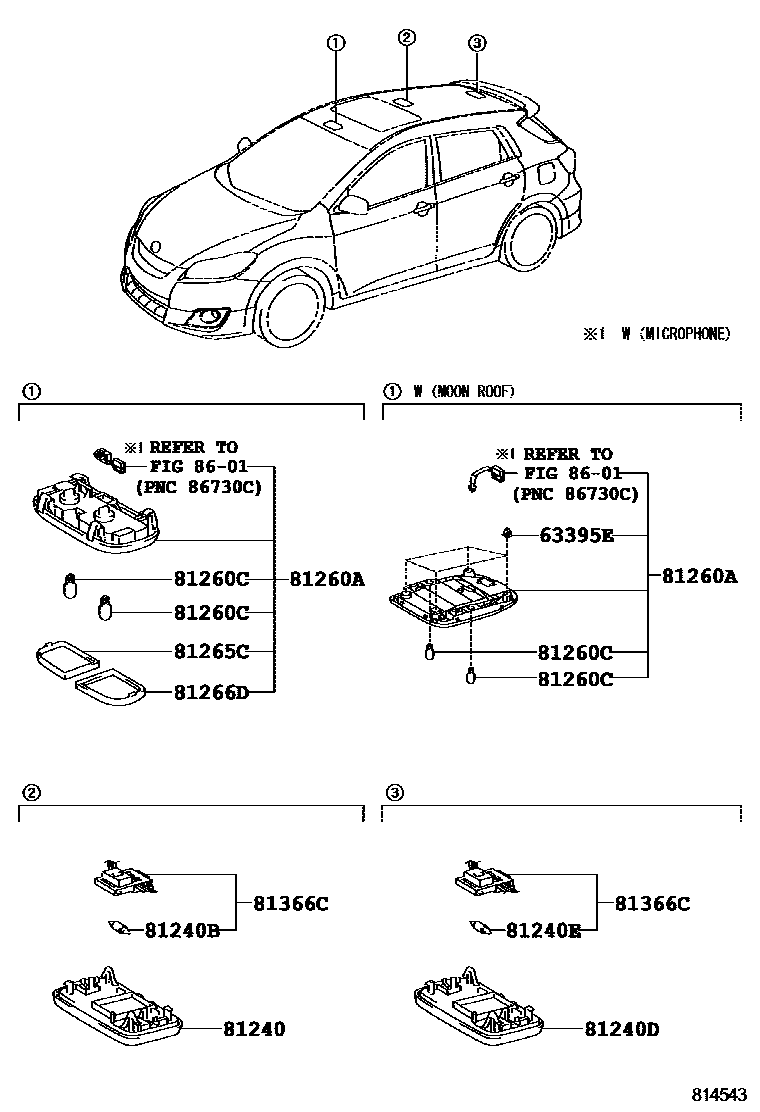

Toyota MATRIX — INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main63395-12150×4i200801-201012

MOON ROOF-WITH; MOON ROOF-WITH&AUDIO-AM/FM CD CHANGER XM JBL-7SP BLUETOOTH

81240LAMP ASSY, ROOM, NO.1

main81240-02090-B0i201012-201406

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200801-201012

12V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-02090-B0i201012-201406

LT.GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-14011i200801-201012

12V 8W

81260ALAMP ASSY, MAP

main81260-52030-B1supersedes 81260-52051-B1i201012-201208

LT.GRAY,TRIM1#

main81260-02330-B0supersedes 81260-52030-B1i201012-201406

MOON ROOF-WITH,LT.GRAY,TRIM1#

main81260-02340-B0i201208-201406

MOON ROOF-WITH&AUDIO-11CY AM/FM CD+HF 6SP(MLT),LT.GRAY,TRIM1#

main81260-52050-B1i200801-200902

AUDIO-AM/FM CD CHANGER XM JBL-7SP BLUETOOTH,LT.GRAY,TRIM1#

main81260-52051-B1i201012-201102

AUDIO-ACCESSORY AUDIO,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2i200801-201012

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020i200801-201012

81266DLENS, MAP LAMP, NO.2

main81266-52020i200801-201012

81366CBASE, ROOM LAMP SWITCH

main81366-02010i200801-201012

LAMP ASSY, ROOM,NO.1,LAMP ASSY, ROOM,NO.2

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

11 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota MATRIX

This section contains 11 genuine Toyota parts for the INTERIOR LAMP system of the Toyota MATRIX. Key components include: CLIP(FOR MAP LAMP), LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
