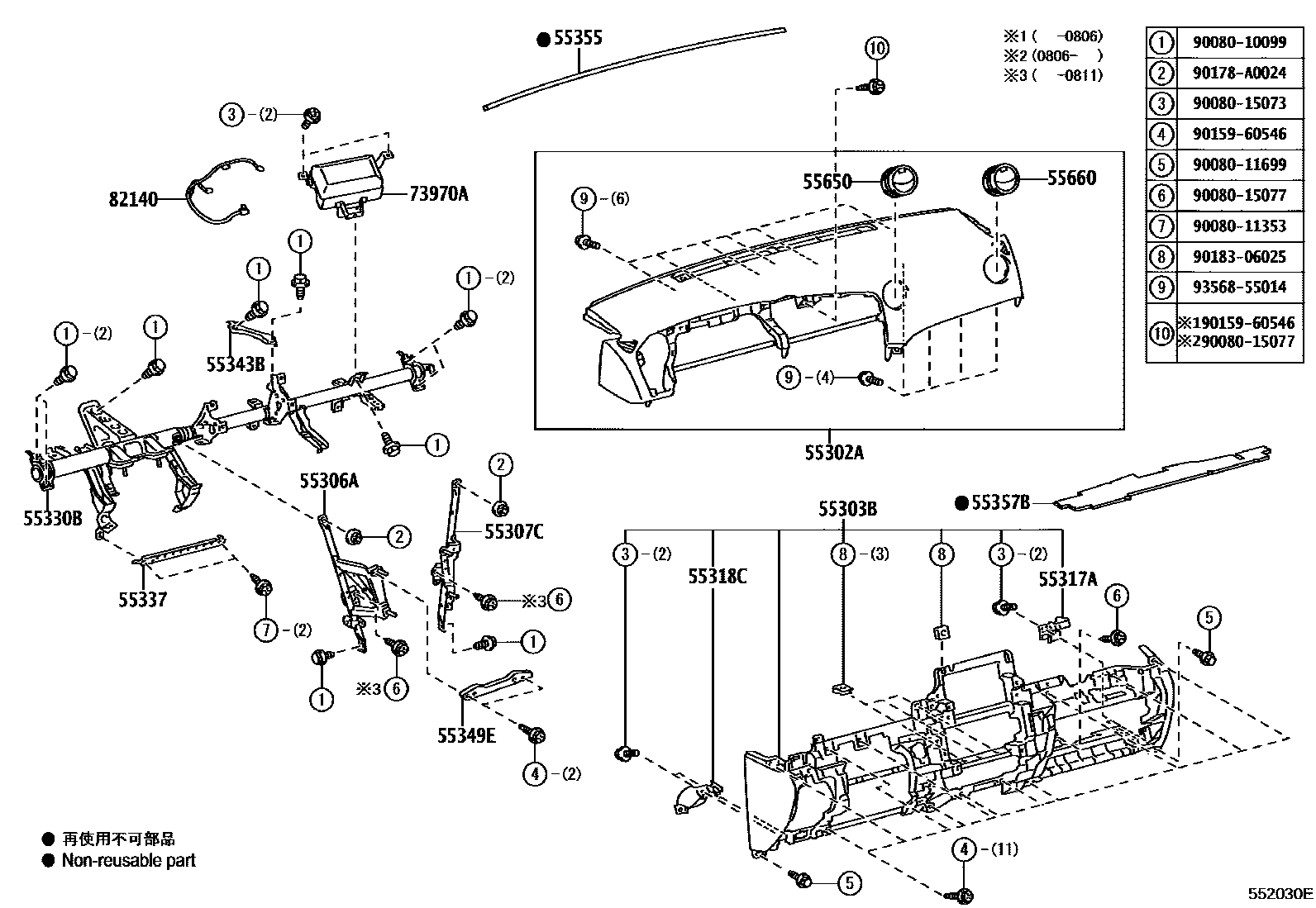

Toyota MATRIX — INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
DK.GRAY,TRIM1#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
DK.GRAY,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
DK.GRAY,TRIM1#
55318CPANEL, INSTRUMENT SIDE, LH
DK.GRAY,TRIM1#
55337REINFORCEMENT, INSTRUMENT PANEL SUB
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER
55355CUSHION, INSTRUMENT PANEL, NO.1
55357BCUSHION, INSTRUMENT PANEL, NO.3
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
DK.GRAY,TRIM1#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
DK.GRAY,TRIM1#
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
sub73970-02091
82140WIRE ASSY, INSTRUMENT PANEL
9008010099
main90080-10099
9008011353
main90080-11353
9008011699
main90080-11699
9008015073
main90080-15073
9008015077
main90080-15077
9015960546
main90159-60546
90178A0024
main90178-A0024
9018306025
main90183-06025
9356855014
main93568-55014
25 parts on this diagram · 5 diagrams in section
