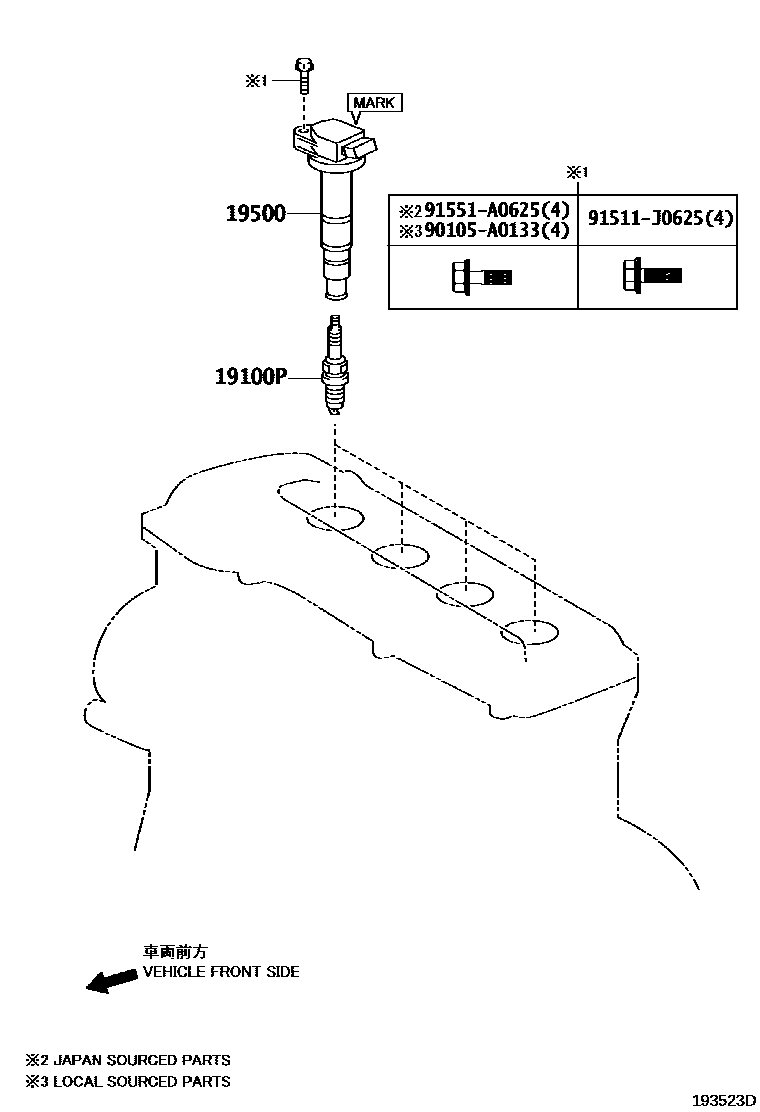

Toyota MATRIX — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90080-91180×4i200801-201012

SK20R11,*108

main90919-01237×4i201204-201206

SK20R11,*195

main90919-01240×4i201206-201308

SK16R11

main90919-01253×4i201012

SC20HR11

19500COIL ASSY, IGNITION

main90919-02244×4i200801-201009

*195

main90919-02252×4i200801-201004

main90919-02258×4i201012

main90919-02266×4i201009-201012

*195,MARK90919-02266

main90919-A2001×4i201012-201203

*108MARK 90919-A2001

main90919-A2006×4i201012-201204

*108MARK 90919-A2006

90105A0133

main90105-A0133

91511J0625

main91511-J0625

91551A0625

main91551-A0625

5 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota MATRIX

This section contains 7 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota MATRIX. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
