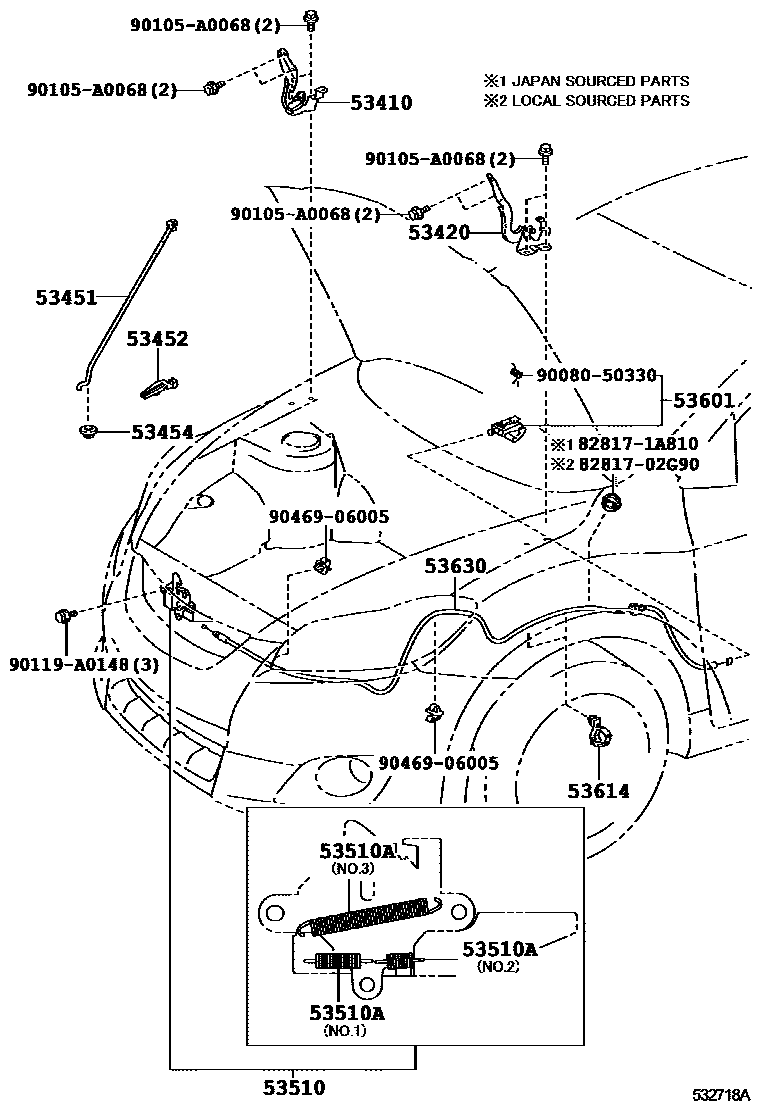

Toyota MATRIX — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02170i201012

53420HINGE ASSY, HOOD, LH

main53420-02170i200801-201012

53451ROD, HOOD SUPPORT

main53440-12140i200801-201012

53452HOLDER, HOOD STAY

main53452-02080i201012

53454CLIP, HOOD SUPPORT ROD

main53454-12040i200801-201012

53510LOCK ASSY, HOOD

main53510-02310i200801-201012

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i200801-201012

WD=0.9,CW=21,NO.1

main90506-12063i200801-201012

WD=1.2,CW=8.5,NO.2

main90506-16077i200801-201012

WD=1.6,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02020-B1i200801-201012

DK.GRAY,TRIM1#

main53601-02020-C0i201308-201406

BLACK,TRIM1#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-12040×2i200801-201012

main82711-1E350×2i201301

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02190i200801-201012

8281702G90PROTECTOR, WIRING HARNESS, NO.1

main82817-02G90

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9008050330

main90080-50330

90105A0068

main90105-A0068

90119A0148

main90119-A0148

9046906005

main90469-06005

16 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota MATRIX

This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota MATRIX. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, HOLDER, HOOD STAY, CLIP, HOOD SUPPORT ROD.
