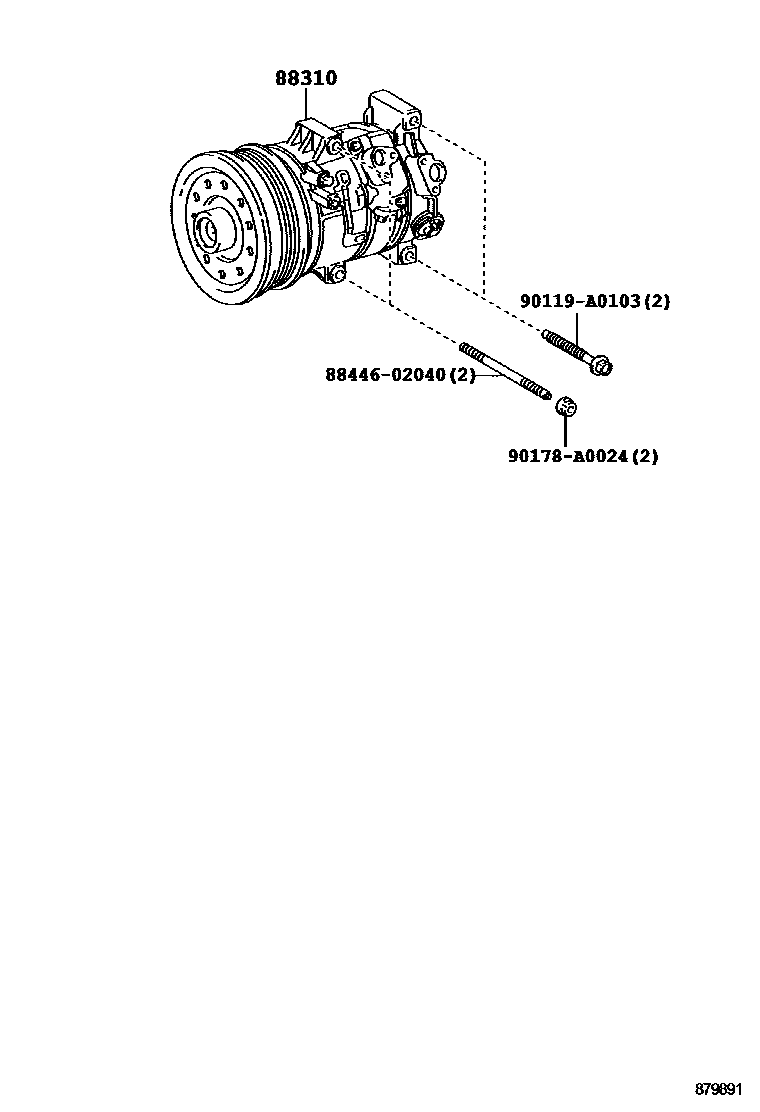

Toyota MATRIX — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-02510iZRE142200801-201012

AIR CONDITIONER-WITHOUT

main88310-02520iAZE14#200801-201308

main88310-02710iZRE142..CND201012-201211

AIR CONDITIONER-WITHOUT

sub88310-02711

main88310-02711iZRE142201212

AIR CONDITIONER-WITHOUT

8844602040BOLT, IDLE PULLEY

main88446-02040

90119A0103

main90119-A0103

90178A0024

main90178-A0024

4 parts on this diagram · 2 diagrams in section
