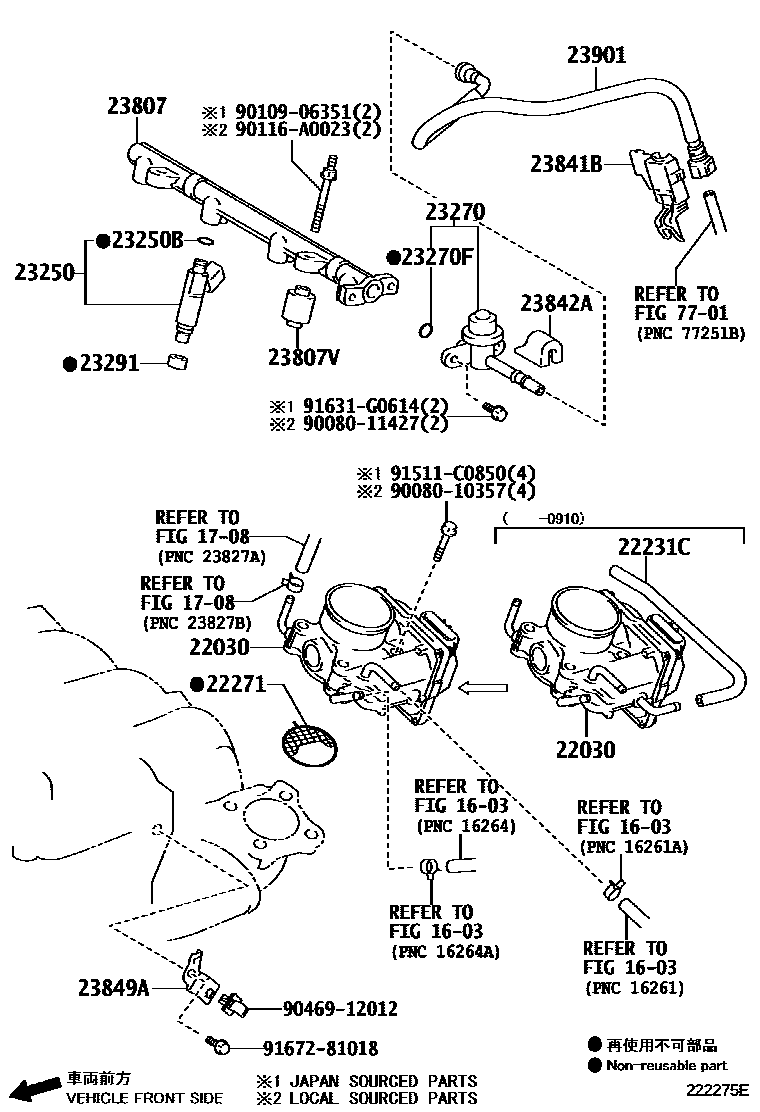

Toyota MATRIX — FUEL INJECTION SYSTEM
1603
1708
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(L)
(J)
22231CHOSE, THROTTLE BODY, NO.1
22271GASKET, THROTTLE BODY
(L)
(J)
23250INJECTOR ASSY, FUEL
(L)
(L),*108
*108
*195
(J),*108
(J),TYPE A
(J)
(J),TYPE B
23250BRING, O(FOR FUEL INJECTOR)
*195
*108
(J)
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
*108
*195
23270FRING, O(FOR PULSATION DAMPER)
*195
*108
23291INSULATOR, INJECTOR VIBRATION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
*108
*195
23807VSPACER, NO.1(FOR DELIVERY PIPE)
*108
*195
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
7701
9008010357
main90080-10357
9008011427
main90080-11427
9010906351
main90109-06351
90116A0023
main90116-A0023
9046912012
main90469-12012
91511C0850
main91511-C0850
91631G0614
main91631-G0614
9167281018
main91672-81018
25 parts on this diagram · 2 diagrams in section
