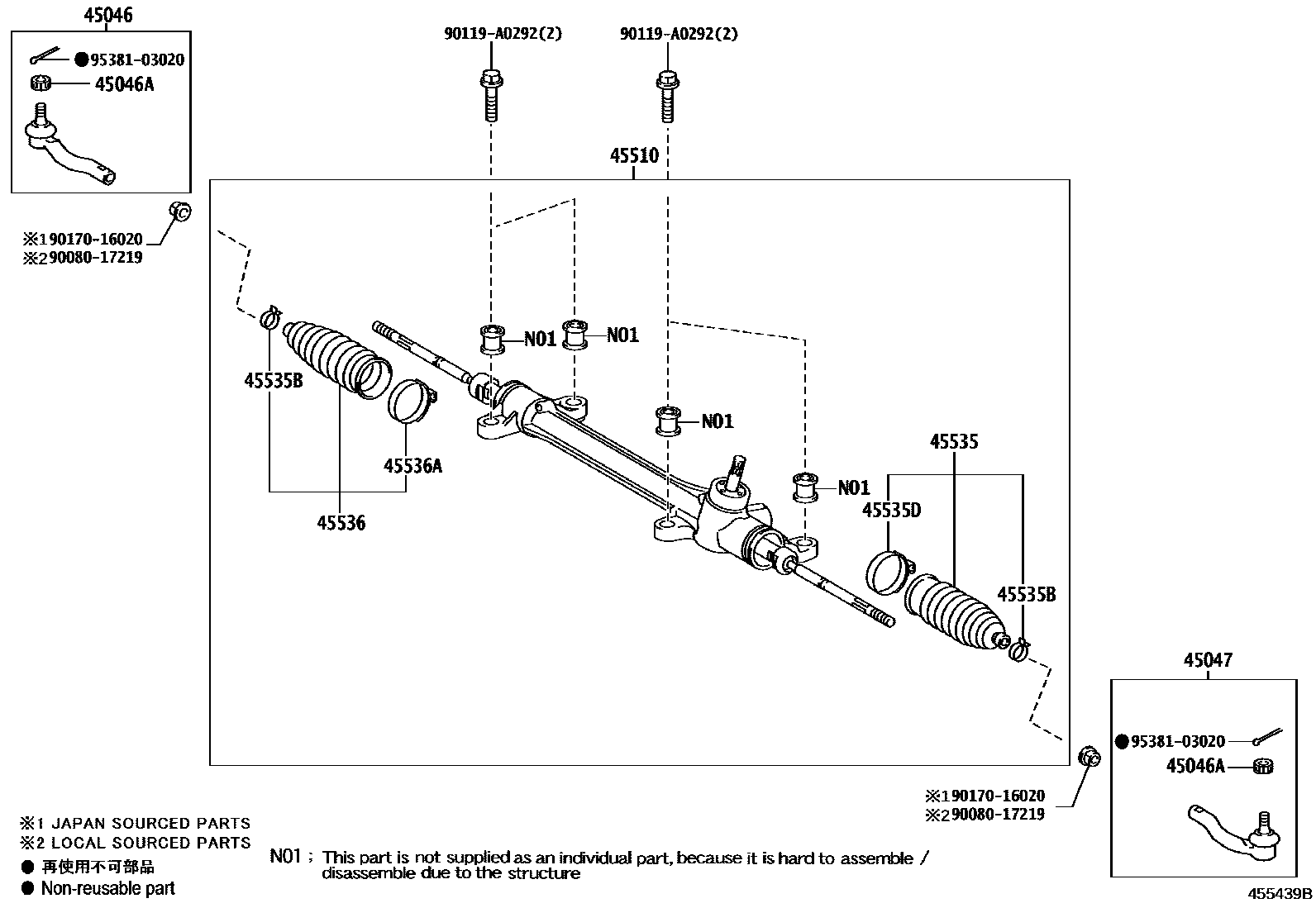

Toyota MATRIX — FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09600iAZE14#,ZRE142200801-201012

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220iAZE14#,ZRE142200801-201012

45047END SUB-ASSY, TIE ROD, LH

main45046-09600iAZE14#,ZRE142200801-201012

45510GEAR ASSY, STEERING

main45510-02150iAZE141,ZRE142200801-201012

main45510-02160iAZE144200801-201308

main45510-02230iAZE146200801-201308

45535BOOT, STEERING RACK, NO.1

main45535-09200iAZE14#,ZRE142200801-201012

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020iAZE14#,ZRE142200801-201012

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-02030iAZE14#,ZRE142200801-201012

45536BOOT, STEERING RACK, NO.2

main45535-09200iAZE14#,ZRE142200801-201012

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02030iAZE14#,ZRE142200801-201012

9008017219

main90080-17219

90119A0292

main90119-A0292

9017016020

main90170-16020

9538103020

main95381-03020

13 parts on this diagram · 2 diagrams in section
