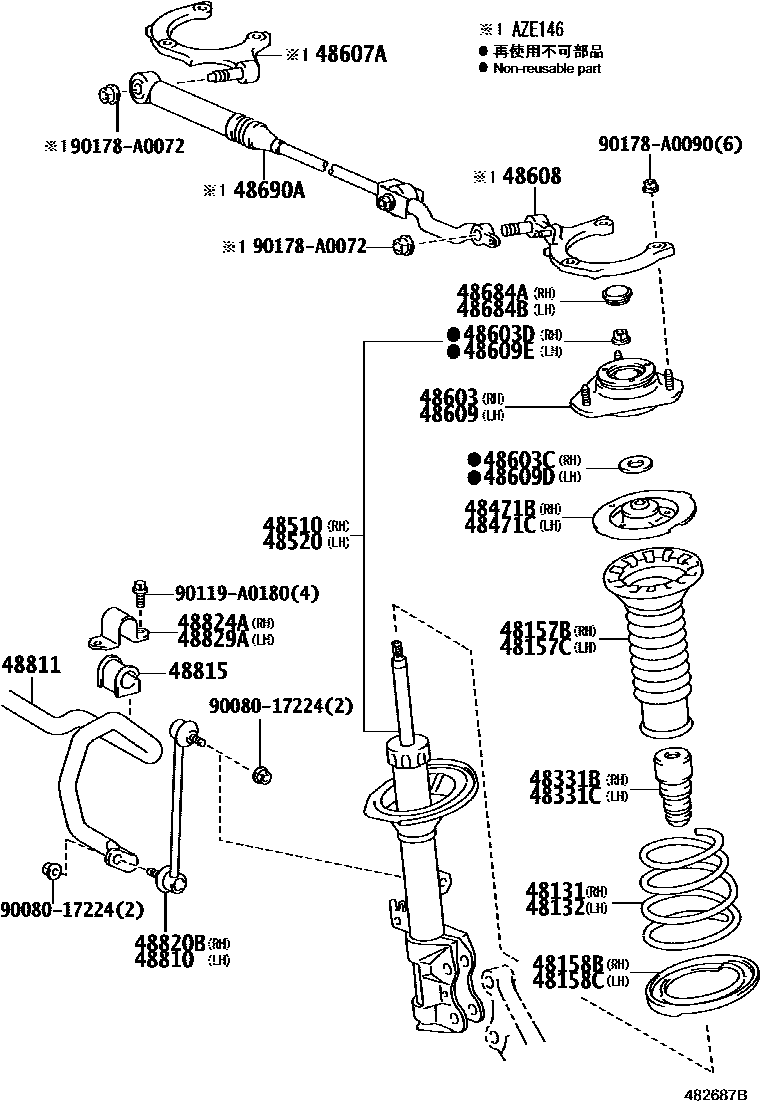

Toyota MATRIX — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
MEXICO SPEC
MEXICO SPEC
MEXICO SPEC
48132SPRING, FRONT COIL, LH
MEXICO SPEC
MEXICO SPEC
MEXICO SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-02510
MARK 48510-02530
MARK 48510-02520
MARK 48510-02500
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-02510
MARK 48520-02530
MARK 48520-02520
MARK 48520-02500
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48607ABRACKET SUB-ASSY, TOWER BAR, RH
48608BRACKET SUB-ASSY, TOWER BAR, LH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
(L)
(J)
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
(L)
(J)
48690ADAMPER ASSY, SUSPENSION TOWER
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9008017224
main90080-17224
90119A0180
main90119-A0180
90178A0072
main90178-A0072
90178A0090
main90178-A0090
33 parts on this diagram · 1 diagram in section
