Toyota MATRIX — FRONT FENDER APRON & DASH PANEL

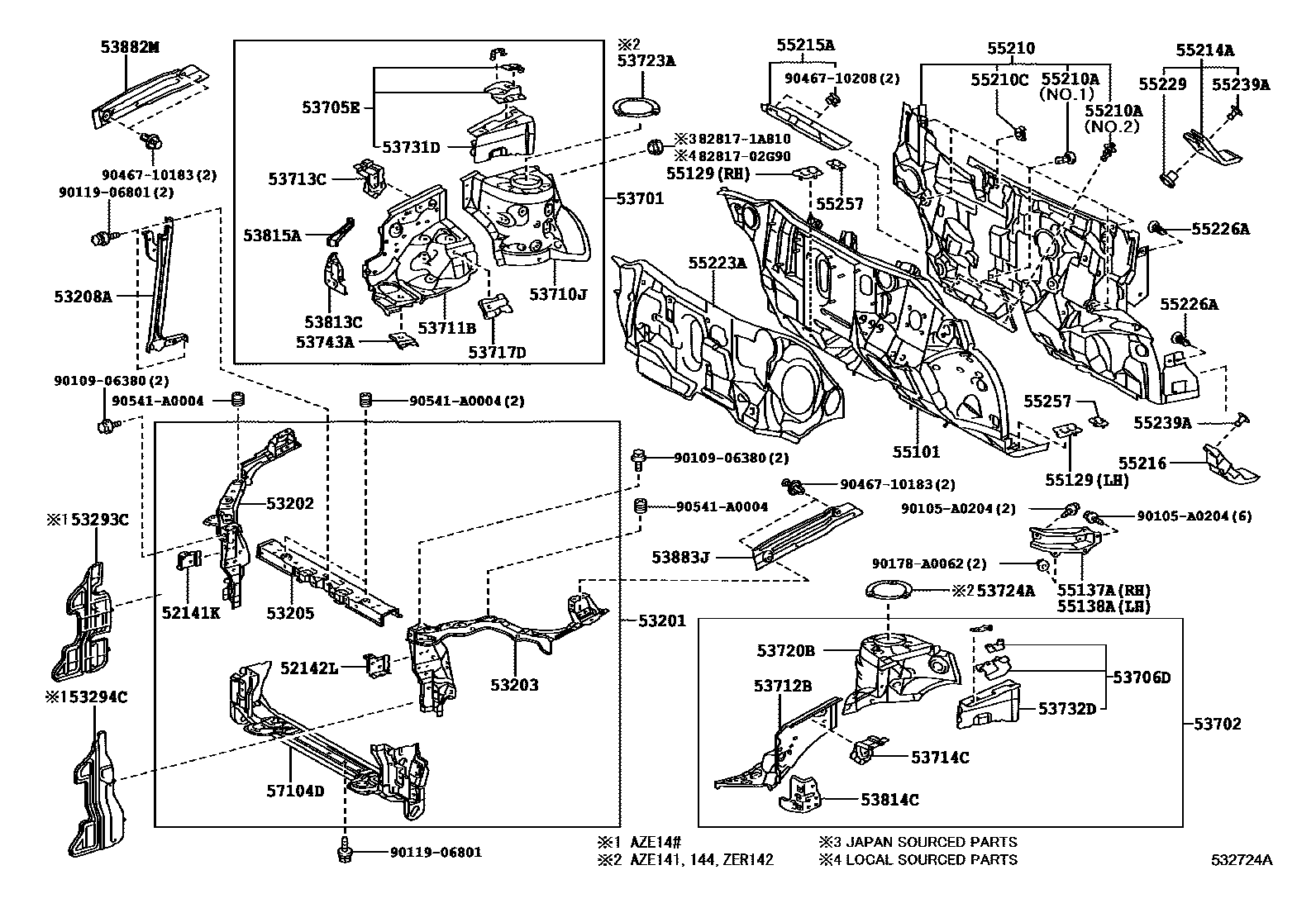

Parts diagram
52141KBRACKET, FRONT ENERGY ABSORBER MOUNTING, RH
main52141-02090i200801-201012
52142LBRACKET, FRONT ENERGY ABSORBER MOUNTING, LH
main52142-02050i200801-201012
53201SUPPORT SUB-ASSY, RADIATOR
main53201-02220i200801-201012
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-02110i200801-201012
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-02120i200801-201012
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-02150i200801-201008
main53205-02151i201008-201012
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53208-02090i200801-201012
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-02060i200801-201012
main53293-02120i201012-201308
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-02060i200801-201012
main53294-02120i201012-201308
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-02180i200801-201012
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-02130i200801-201012
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
main53705-02030i200801-201012
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
main53706-02030i200801-201012
53710JAPRON ASSY, FRONT FENDER, RH
main53710-02903i200801-201012
53711BAPRON, FRONT FENDER, FRONT RH
main53711-02090i200801-201012
53712BAPRON, FRONT FENDER, FRONT LH
main53712-02100i200801-201012
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
main53713-02060i200801-201012
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-02050i200801-201012
53717DGUSSET, FENDER APRON, RH
main53717-02020i200801-201012
53720BAPRON ASSY, FRONT FENDER, LH
main53720-02903i200801-201012
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
main53723-02080i200801-201012
SPORTS PACKAGE
main53723-02081i201111
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
main53723-02080i200801-201012
SPORTS PACKAGE
main53723-02081i201111
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-02060i200801-201012
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-02050i200801-201012
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-02010i200801-201012
53813CEXTENSION, FRONT FENDER, RH
main53813-02070i200801-201012
53814CEXTENSION, FRONT FENDER, LH
main53814-02070i200801-201012
53815AREINFORCEMENT, FRONT SIDE PANEL, RH
main53815-02010i200801-201012
53882MSEAL, FRONT FENDER
main53882-02040i201012
53883JSEAL, FRONT FENDER, LH
main53883-02040i200801-201012
55101PANEL SUB-ASSY, DASH
main55101-02860supersedes 55101-02890i201012-201308
main55101-02870supersedes 55101-02A00i200801-201012
REAR WINDOW WIPER-WITH
main55101-02880i201012-201308
55129COVER, DASH PANEL HOLE
main55129-02060i200801-201012
RH
main55139-02050i200801-201012
LH
55137ABRACE, DASH TO FRAME, RH
main55137-02060i201012-201307
main55137-02061i201308
55138ABRACE, DASH TO FRAME, LH
main55138-02050i200801-201012
main55138-02051i201308
55210INSULATOR ASSY, DASH PANEL
main55210-02300i200801-201003
main55210-02301i201004-201012
55210ACLIP
main90467-11122×5i200801-201012
NO.1
main90467-11127×2i201012
NO.2
55210CCLIP
main90467-18016i200801-201012
55214APAD, DASH PANEL INSULATOR, NO.2
main55214-02060i200801-201004
main55214-02100i201005-201012
55215APAD, DASH PANEL INSULATOR, NO.3
main55215-02060i200801-201012
55216PAD, DASH PANEL INSULATOR, NO.4
main55216-02010i201012
55223AINSULATOR, DASH PANEL, OUTER
main55223-02210i200801-201012
55226ACLIP
main90467-08186-C0×4i200801-201012
BLACK
55229PLATE, DASH PANEL INSULATOR, NO.4
main55229-48010i200801-201012
55239APLATE, DASH PANEL INSULATOR, NO.3
main55239-48020i200801-201012
55257COVER, DASH PANEL OPENING
main55257-02010×2i200801-201012
57104DMEMBER SUB-ASSY, FRONT CROSS
main57104-02140i200801-201008
main57104-02142i201009-201012
main57104-02143i201210
8281702G90PROTECTOR, WIRING HARNESS, NO.1
main82817-02G90
828171A810PROTECTOR, WIRING HARNESS, NO.1
main82817-1A810
90105A0204
main90105-A0204
9010906380
main90109-06380
9011906801
main90119-06801
90178A0062
main90178-A0062
9046710183
main90467-10183
9046710208
main90467-10208
90541A0004
main90541-A0004

55 parts on this diagram · 1 diagram in section
