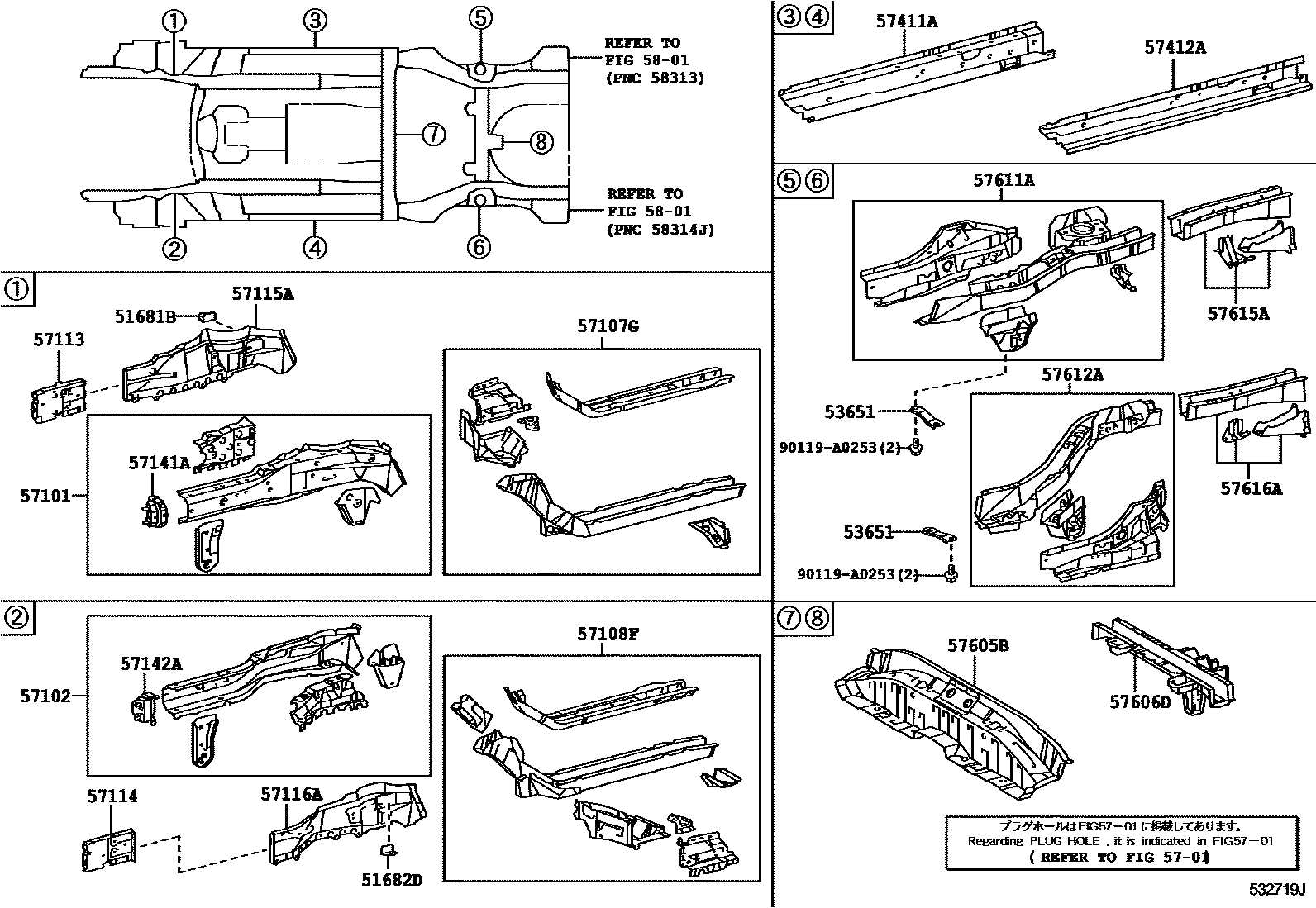

Toyota MATRIX — FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-02020i200801-201012

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-02020i200801-201012

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-02020×2i201012

main53651-02030i201012-201308

5701HOLE PLUG

→ Go to FIG 57-01

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02915i200801-201012

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-02919i200801-201012

main57102-02920i201012

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-02902i201012

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-02902i200801-201012

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02100i200801-201008

main57113-02101i201008-201012

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02100i200801-201008

main57114-02101i201008-201012

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-02030i200801-201012

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-02030i200801-201012

main57116-02031i201211

57141ASUPPORT, FRONT BUMPER ARM, RH

main57013-02060i200801-201012

57142ASUPPORT, FRONT BUMPER ARM, LH

main57014-02060i200801-201012

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02140i200801-201012

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02140i201012-201406

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02080i200801-201012

main57605-02090i200801-201012

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-01040i200801-201012

main57606-01050i201012-201308

main57606-02130i200801-201012

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-02904i200801-201012

main57611-02905i200801-201012

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-02904i200801-201012

main57612-02905i200801-201012

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-01904i200801-201012

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-01905i200801-201012

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90119A0253

main90119-A0253

24 parts on this diagram · 4 diagrams in section

FLOOR SIDE MEMBER for Toyota MATRIX

This section contains 28 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota MATRIX. Key components include: PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH, BRACE, REAR FLOOR SIDE MEMBER, HOLE PLUG, MEMBER SUB-ASSY, FRONT SIDE, RH.
