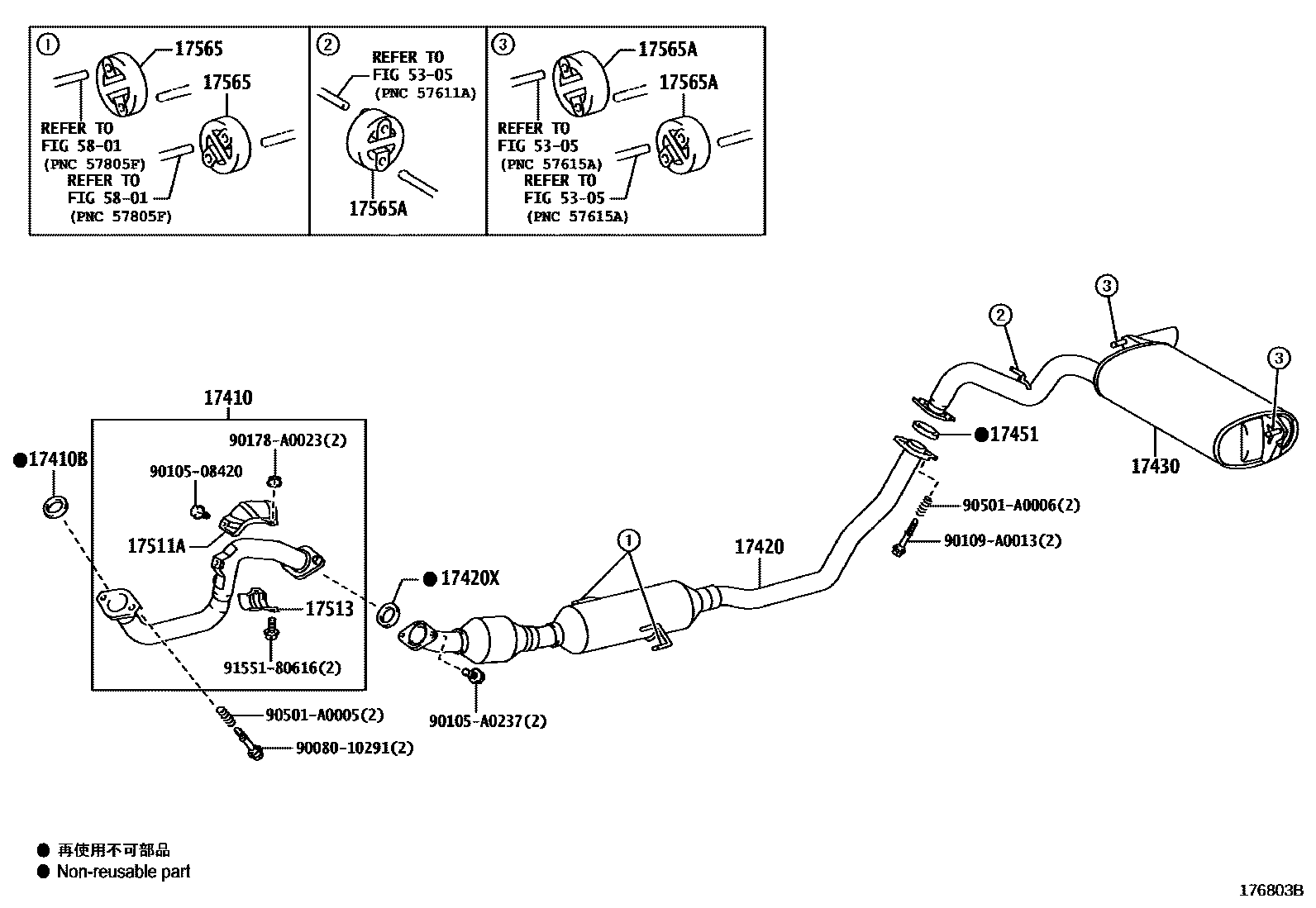

Toyota MATRIX — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
main17430-0D540supersedes 17430-0D550i2AZFE..AZE144..CND; 2AZFE..AZE146;2AZFE..AZE144..USA201003-201012
SPORTS PACKAGE&EXHAUST TAIL PIPE & DIFFUSER-WITH(DIFFUSER)
17451GASKET, EXHAUST PIPE
17511AINSULATOR, EXHAUST PIPE, UPPER NO.1
17513INSULATOR, EXHAUST PIPE, LOWER NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
9008010291
main90080-10291
9010508420
main90105-08420
90105A0237
main90105-A0237
90109A0013
main90109-A0013
90178A0023
main90178-A0023
90501A0005
main90501-A0005
90501A0006
main90501-A0006
9155180616
main91551-80616
20 parts on this diagram · 4 diagrams in section
EXHAUST PIPE for Toyota MATRIX
This section contains 24 genuine Toyota parts for the EXHAUST PIPE system of the Toyota MATRIX. Key components include: BAFFLE SUB ASSY, EXHAUST TAILPIPE, PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER.
