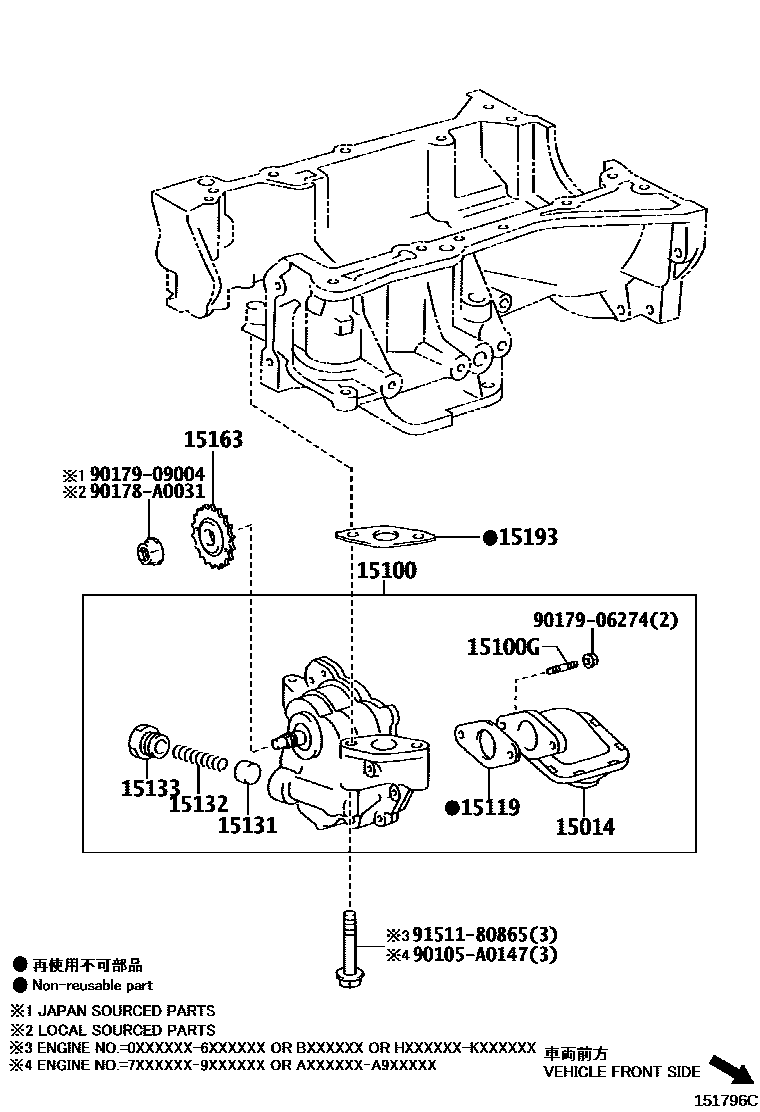

Toyota MATRIX — ENGINE OIL PUMP

15014STRAINER SET, OIL PUMP

main15014-0H010i200801-201012

*108

main15014-28020i200801-201012

*195

15100PUMP ASSY, OIL

main15100-0H010i200801-201012

*108

main15100-0T010i201012

(L)

main15100-28020i201204-201308

main15100-37030i200801-201012

(J)

15100GBOLT,STUD(FOR OIL PUMP)

main15183-0H010×2i200902-201012

*108

main15183-28020×2i200801-201012

*195

15119GASKET, OIL PUMP COVER

main15119-0H010i201012-201204

*108

main15119-28020i200801-201012

*195

15131VALVE, OIL PUMP RELIEF

main15131-0A040i201012

main15131-46040i200801-201012

*108; *195

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0A020i200801-201012

*108

main15132-46020i201204-201308

main15132-46060i200801-201012

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0H010i201012-201204

*108

main15133-28020i200801-201012

*195

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i200801-201012

(L); *108

main15163-28010i200801-201012

(J); *195

15193GASKET, OIL PUMP

main15193-0H010i200902-201012

*108

main15193-28010i201204-201308

90105A0147

main90105-A0147

90178A0031

main90178-A0031

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

14 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota MATRIX

This section contains 19 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota MATRIX. Key components include: COVER SUB-ASSY, OIL PUMP, STRAINER SET, OIL PUMP, PUMP ASSY, OIL, BOLT,STUD(FOR OIL PUMP), GASKET, OIL PUMP COVER.
