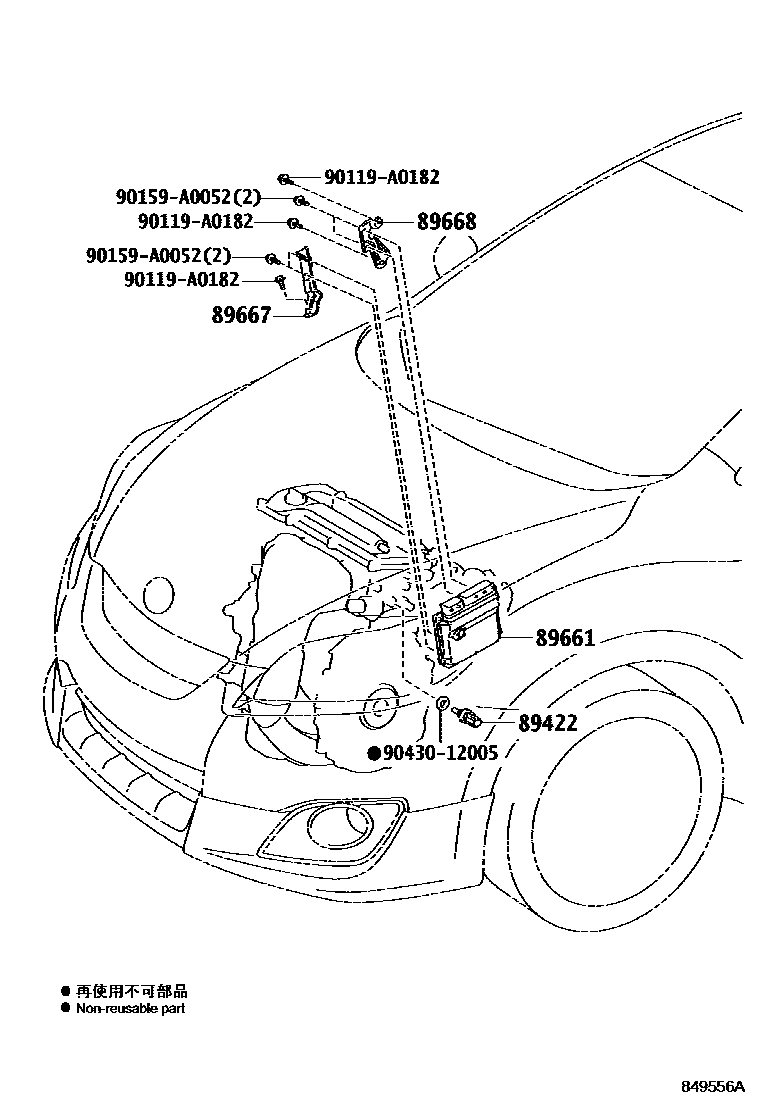

Toyota MATRIX — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAZE14#,ZRE142200801-201012

89661COMPUTER, ENGINE CONTROL

main89661-02L10iAZE141,146..5F200801-200902

sub89661-02L11

main89661-02L20iAZE141..5FC200801-200803

sub89661-02L21

main89661-02L21iAZE141..5FC200804-200902

sub89661-02L22

main89661-02L30iAZE146..5FC200801-200803

sub89661-02L31

main89661-02L31iAZE146..5FC200804-200902

sub89661-02L32

main89661-02L40iAZE144200801-200902

sub89661-02L41

main89661-02L70iZRE142..4FC200801-200805

sub89661-02L71

main89661-02L71iZRE142..4FC200806-200809

sub89661-02L72

main89661-02L72iZRE142..4FC200809-200902

sub89661-02V31

main89661-02L80iZRE142..5F200801-200805

sub89661-02L81

main89661-02L81iZRE142..5F200806-200809

sub89661-02L82

main89661-02L82iZRE142..5F200809-200902

sub89661-02U71

main89661-02U70iZRE142..5F200902-200904

sub89661-02U71

main89661-02U71iZRE142..5F200905-200911

sub89661-02U72

main89661-02U72iZRE142..5F200912-201012

sub89661-02U73

main89661-02V00iAZE141,146..5F200902-201007

sub89661-02V01

main89661-02V01iAZE141,146..5F201007-201012

main89661-02V30iZRE142..4FC200902-200904

sub89661-02V31

main89661-02V31iZRE142..4FC200905-200911

sub89661-02V32

main89661-02V32iZRE142..4FC200912-201012

sub89661-02V33

main89661-02V50iAZE141..5FC200902-200903

sub89661-02V51

main89661-02V51iAZE141..5FC200903-201006

sub89661-02V52

main89661-02V52iAZE141..5FC201007-201012

main89661-02V60iAZE146..5FC200902-200903

sub89661-02V61

main89661-02V61iAZE146..5FC200903-201006

sub89661-02V62

main89661-02V62iAZE146..5FC201007-201012

main89661-02V70iAZE144200902-201006

sub89661-02V71

main89661-02V71iAZE144201007-201012

main89661-02Z90iAZE141,146..5F201012-201112

main89661-0Z150iAZE141..5FC201012-201112

main89661-0Z160iAZE146..5FC201012-201112

main89661-0Z170iAZE144201012-201112

main89661-0Z540iZRE142..4FC201012-201109

sub89661-0Z541

main89661-0Z541iZRE142..4FC201109-201112

sub89661-0ZA51

main89661-0Z560iZRE142..5F201012-201112

sub89661-0Z561

main89661-0ZA30iAZE141,146..5F201112-201308

main89661-0ZA50iZRE142..4FC201112-201206

sub89661-0ZA51

main89661-0ZA51iZRE142..4FC201207

main89661-0ZA60iZRE142..5F201112-201206

sub89661-0ZA61

main89661-0ZA61iZRE142..5F201207

main89661-0ZB00iAZE141..5FC201112-201308

main89661-0ZB10iAZE146..5FC201112-201308

main89661-0ZB20iAZE144201112-201308

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02220iZRE142200801-201012

main89667-02230iAZE14#200801-201308

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02190iZRE142200801-201012

main89668-02200iAZE14#200801-201308

90119A0182

main90119-A0182

90159A0052

main90159-A0052

9043012005

main90430-12005

7 parts on this diagram · 2 diagrams in section
