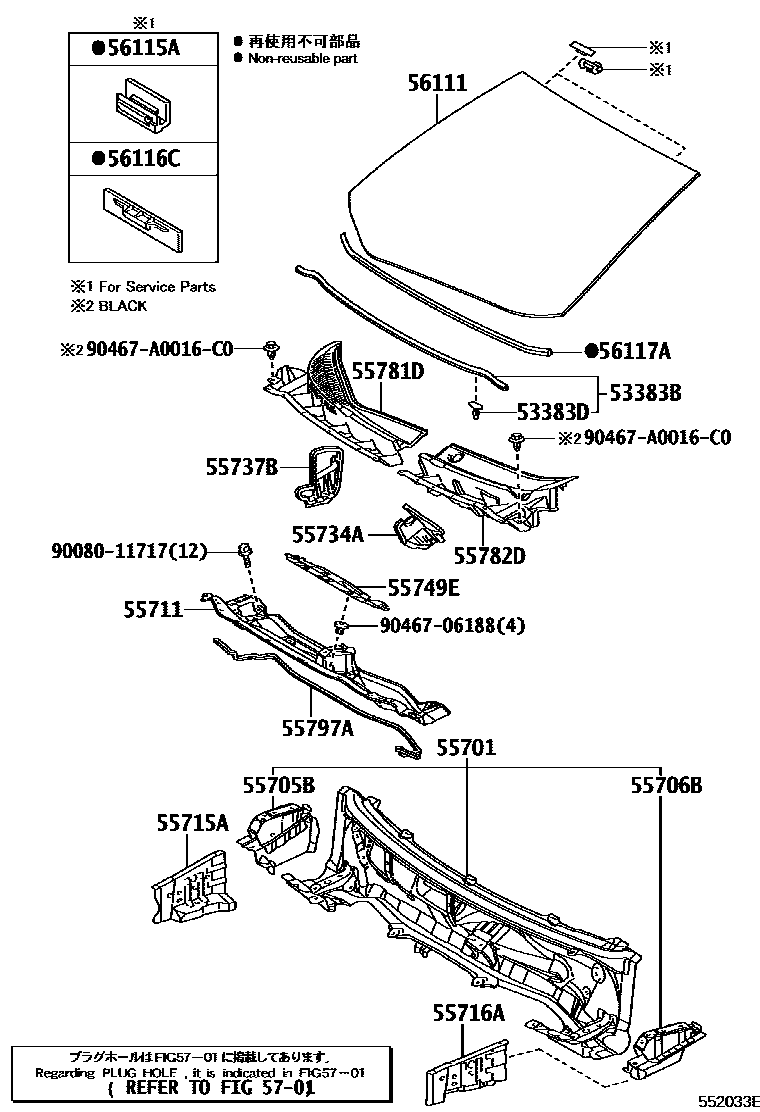

Toyota MATRIX — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02130iAZE14#,ZRE142200801-201012

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7iAZE14#,ZRE142201012

main67868-02020×7iAZE14#,ZRE142200801-201012

55701PANEL SUB-ASSY, COWL

main55700-02380iAZE14#,ZRE142201012

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02070iAZE14#,ZRE142200801-201012

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02070iAZE14#,ZRE142200801-201012

55711PANEL, COWL TOP, OUTER

main55701-02240iAZE14#,ZRE142201012

55715ABRACE, COWL TOP TO APRON, RH

main55715-02020iAZE14#,ZRE142200801-201012

55716ABRACE, COWL TOP TO APRON, LH

main55716-02020iAZE14#,ZRE142200801-201012

55734APLATE, WATER GUARD, RH

main55734-02060iAZE14#,ZRE142200801-201012

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02050iAZE14#,ZRE142200801-201012

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-02050iAZE14#,ZRE142200801-201012

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02391supersedes 55708-02401iAZE14#,ZRE142..USA200801-201012

COLD AREA SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02281iAZE14#,ZRE142200801-201012

55797ASEAL, COWL WATER EXTRACT

main55797-02040iAZE14#,ZRE142200801-201012

56111GLASS, WINDSHIELD

main56101-02440iAZE14#,ZRE142200801-200904

*LAM,T=4.76,GREEN

main56101-02760iAZE14#,ZRE142200904-201012

*LAM,T=4.76,GREEN

main56101-02G80iAZE14#,ZRE142201208

*HSEAL,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iAZE14#,ZRE142200801-201012

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iAZE14#,ZRE142200801-201012

56117ADAM, WINDOW GLASS ADHESIVE

main90998-91004iAZE14#,ZRE142200801-201012

L=1370

5701

9008011717

main90080-11717

9046706188

main90467-06188

90467A0016C0

main90467-A0016C0

22 parts on this diagram · 1 diagram in section
