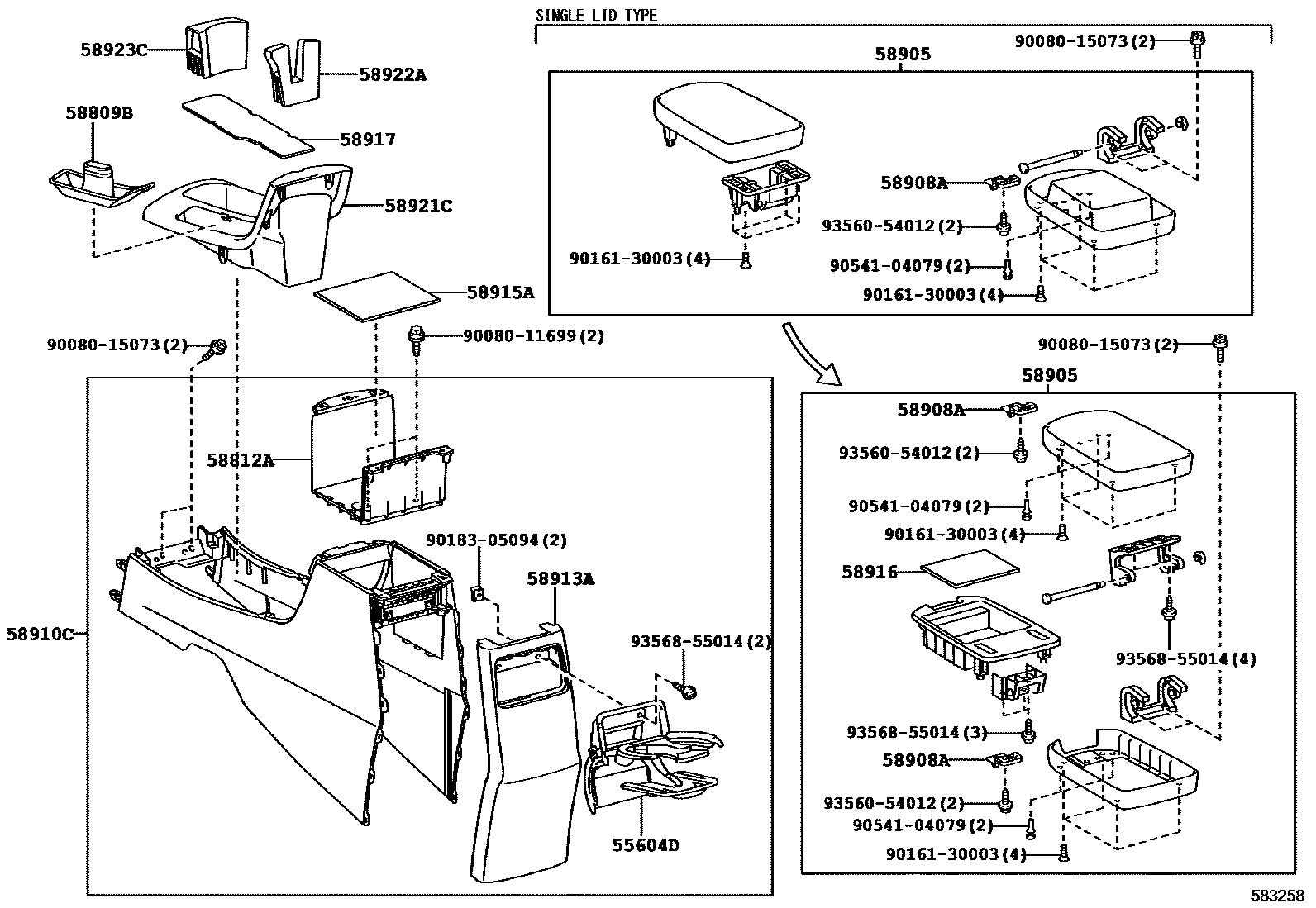

Toyota MATRIX — CONSOLE BOX & BRACKET

55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-02020-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-02010-B0iAZE14#,ZRE142200801-201012

DK.GRAY,TRIM1#

sub58809-02020

main58809-02020-B0iAZE14#,ZRE142201012-201406

DK.GRAY,TRIM1#

58812ABOX, CONSOLE, LOWER

main58812-02100-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02430-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

main58905-02430-B0iZRE142200801-201012

CONSOLE BOX-WITH(SINGLE LID TYPE),DK.GRAY,TRIM1#

main58905-02440-B0iAZE14#200801-201012

DK.GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32040iAZE14#,ZRE142201012

main58908-32040iZRE142200801-201012

CONSOLE BOX-WITH(SINGLE LID TYPE)

58910CBOX ASSY, CONSOLE, REAR

main58910-02100-B0iAZE141,146,ZRE142200801-201406

DK.GRAY,TRIM1#

main58910-02110-B0iAZE144200801-201308

DK.GRAY,TRIM1#

58913APANEL, BOX, NO.3

main58913-02010-B0iAZE141,146,ZRE142200801-201406

DK.GRAY,TRIM1#

main58913-02020-B0iAZE144200801-201308

DK.GRAY,TRIM1#

58915ADAMPER, CONSOLE BOX, REAR

main58915-02030iAZE14#,ZRE142200801-201012

58916MAT, BOX BOTTOM

main58916-02100iAZE14#200801-201012

58917MAT, BOX BOTTOM, NO.2

main58917-01020-B0iAZE14#,ZRE142200801-200904

DK.GRAY,TRIM1#

58921CPLATE, BOX, UPPER NO.1

main58921-02010-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

58922APLATE, BOX, UPPER NO.2

main58922-02010-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

58923CPLATE, BOX, UPPER NO.3

main58923-02050-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

9008011699

main90080-11699

9008015073

main90080-15073

9016130003

main90161-30003

9018305094

main90183-05094

9054104079

main90541-04079

9356054012

main93560-54012

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
