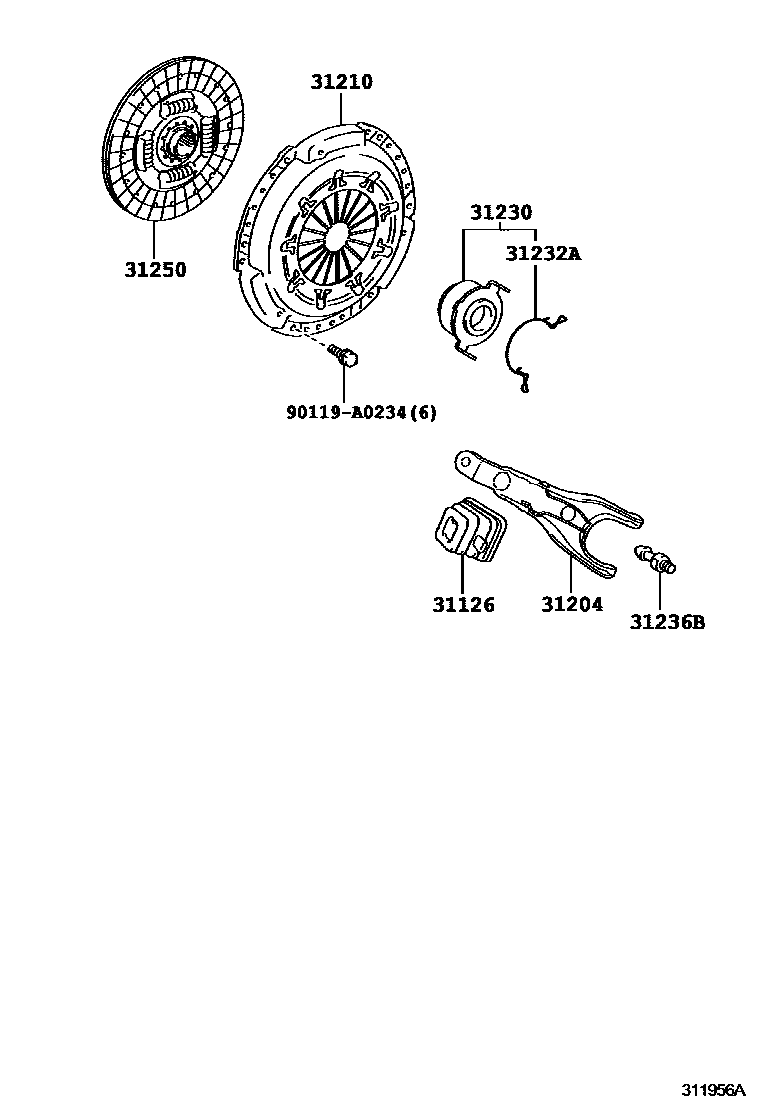

Toyota MATRIX — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZRE142..5F200801-201012

main31126-32010iAZE141,146..5F200801-201012

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iAZE141,146..5F201012-201308

main31204-52010iZRE142..5F200801-201012

31210COVER ASSY, CLUTCH

main31210-02300iZRE142..5F201012

main31210-33042iAZE141,146..5F200801-201012

31230BEARING ASSY, CLUTCH RELEASE

main31230-12191iZRE142..5F200801-201012

main31230-33020iAZE141,146..5F201012-201308

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZRE142..5F200801-201012

main31232-20020iAZE141,146..5F201012-201308

31236BSUPPORT, RELEASE FORK

main31236-12020iZRE142..5F201012

main31236-20060iAZE141,146..5F201012-201308

31250DISC ASSY, CLUTCH

main31250-02240iZRE142..5F200801-201012

main31250-33040iAZE141,146..5F200801-201012

main31250-33041iAZE141,146..5F201112-201308

sub31250-33042

90119A0234

main90119-A0234

8 parts on this diagram · 2 diagrams in section
