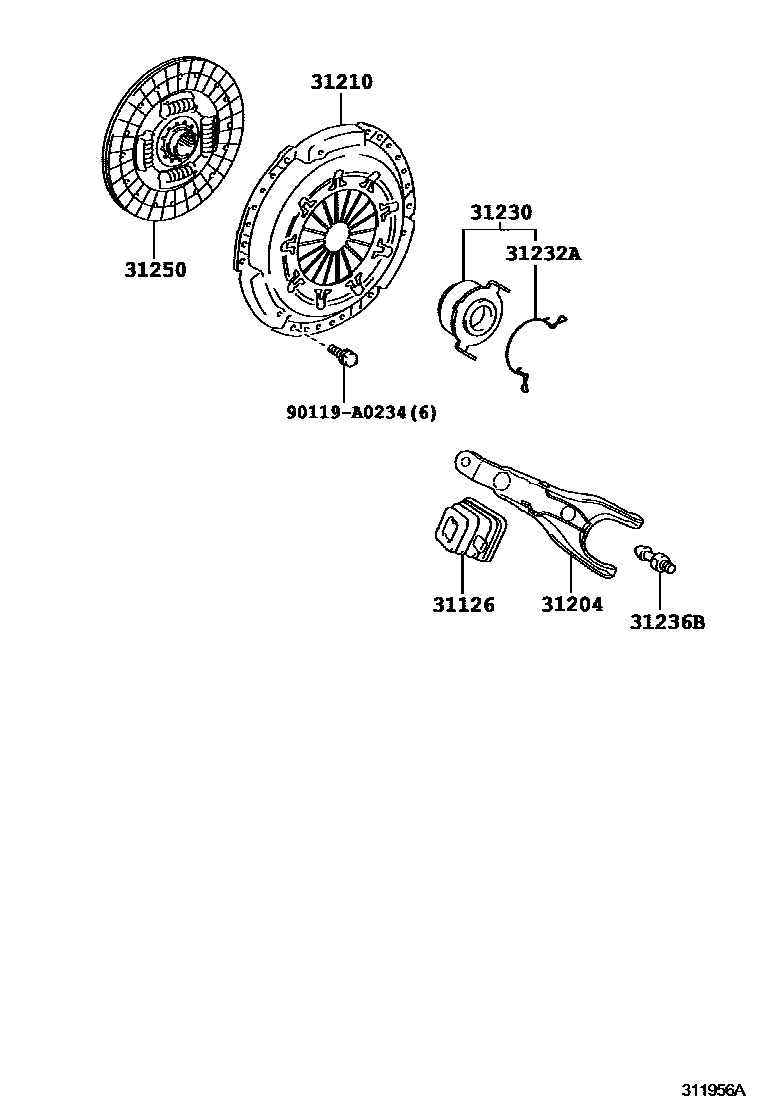

Toyota MATRIX — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
90119A0234
main90119-A0234
8 parts on this diagram · 2 diagrams in section
CLUTCH & RELEASE FORK for Toyota MATRIX
This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota MATRIX. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
