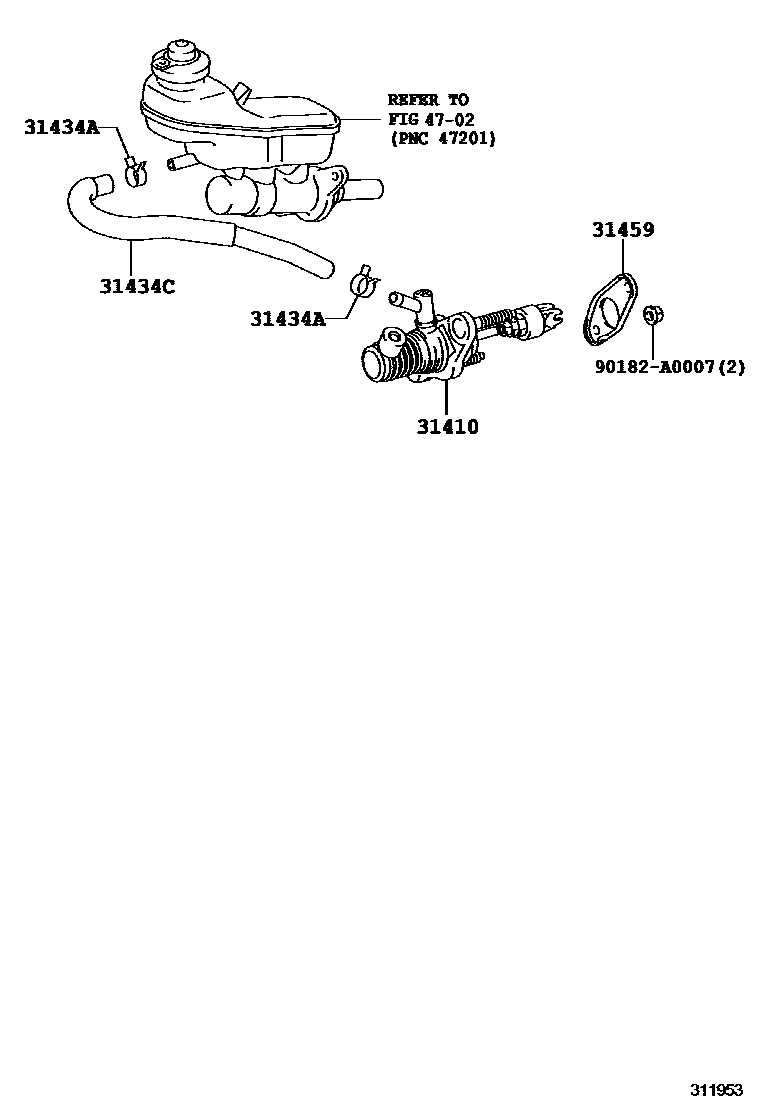

Toyota MATRIX — CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12030i201012

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-A0013×2i201106

(L)

main96136-41801×2i201106

(J)

31434CTUBE, CLUTCH RESERVOIR

main31434-02060i200801-201012

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040i200801-201012

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182A0007

main90182-A0007

6 parts on this diagram · 1 diagram in section

CLUTCH MASTER CYLINDER for Toyota MATRIX

This section contains 6 genuine Toyota parts for the CLUTCH MASTER CYLINDER system of the Toyota MATRIX. Key components include: CYLINDER ASSY, CLUTCH MASTER, CLIP(FOR CLUTCH RESERVOIR TUBE), TUBE, CLUTCH RESERVOIR, BRACKET, CLUTCH MASTER CYLINDER, BRAKE MASTER CYLINDER.
