Toyota MATRIX — BATTERY CARRIER

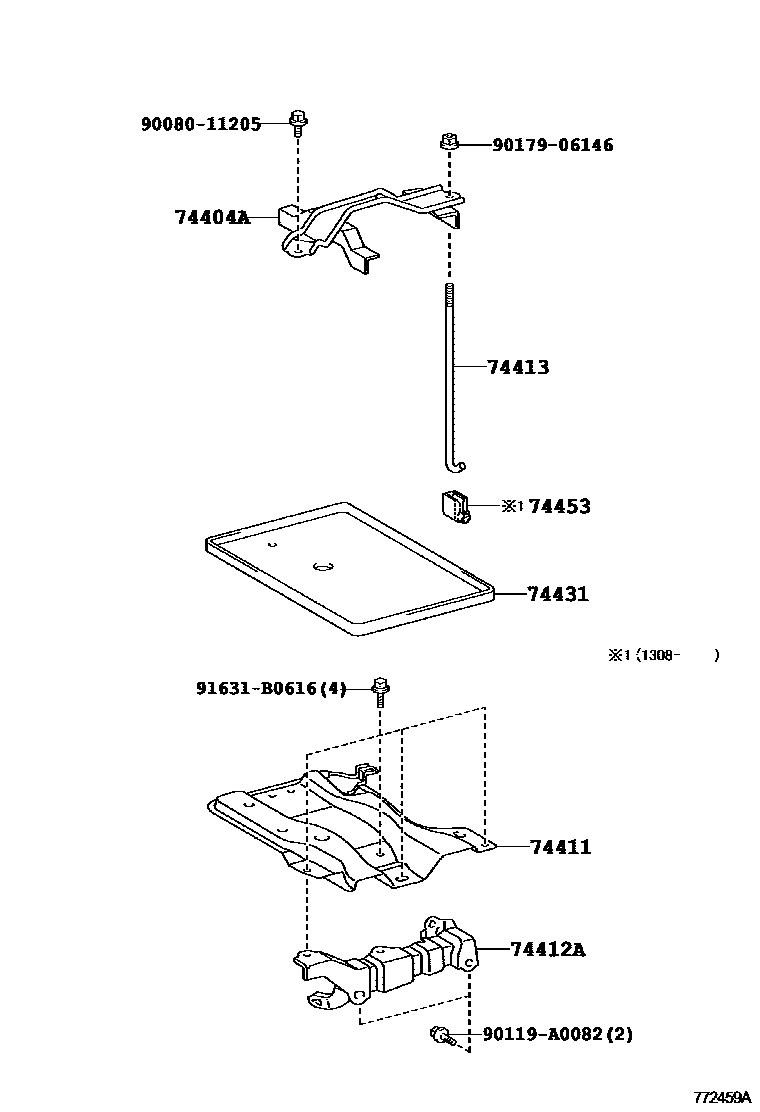

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-02230i200801-201012

74411CARRIER, BATTERY

main74401-02040i200801-201012

main74401-02090i201308

74412ACARRIER, BATTERY, NO.2

main74410-02080i200801-201012

main74410-02210i201308

74413BOLT, BATTERY CLAMP

main74451-02080i201012

74431TRAY, BATTERY

main74431-02110i201012

main74431-02250i200801-201012

74453SUPPORT, BATTERY CARRIER

main74454-28020i201308

9008011205

main90080-11205

90119A0082

main90119-A0082

9017906146

main90179-06146

91631B0616

main91631-B0616

10 parts on this diagram · 1 diagram in section

BATTERY CARRIER for Toyota MATRIX

This section contains 10 genuine Toyota parts for the BATTERY CARRIER system of the Toyota MATRIX. Key components include: CLAMP SUB-ASSY, BATTERY, CARRIER, BATTERY, CARRIER, BATTERY, NO.2, BOLT, BATTERY CLAMP, TRAY, BATTERY.
