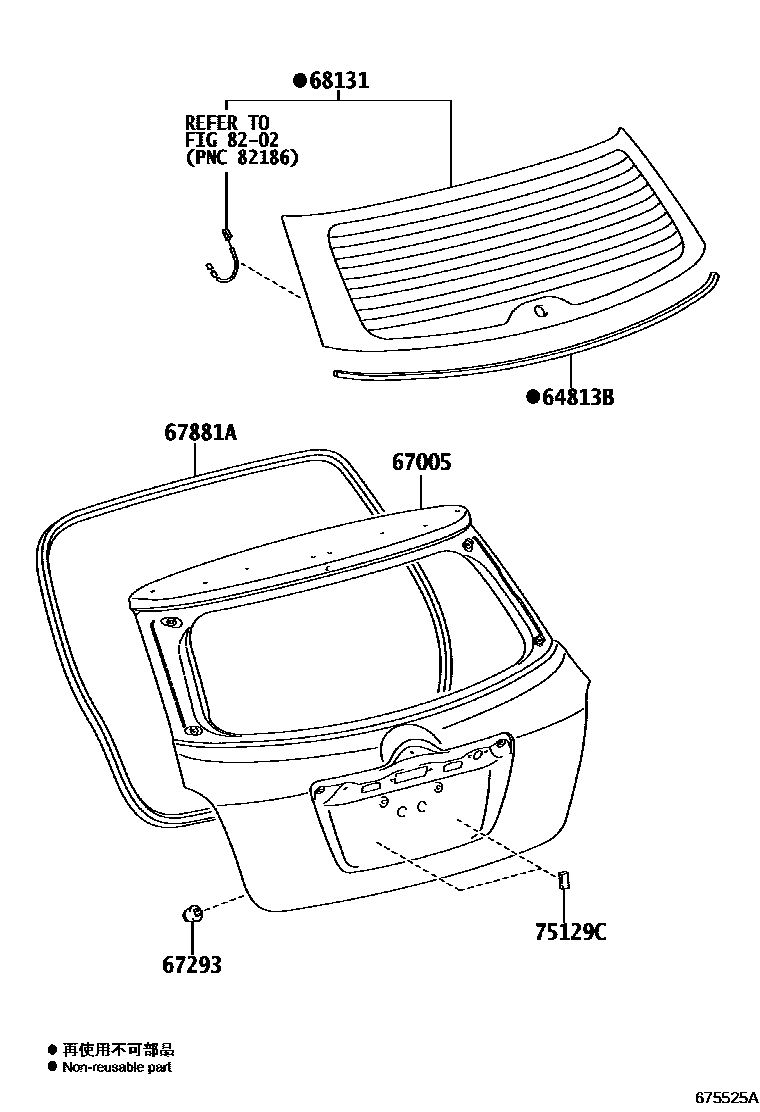

Toyota MATRIX — BACK DOOR PANEL & GLASS

64813BDAM, BACK WINDOW GLASS ADHESIVE

main04562-12010i200801-201012

67005PANEL SUB-ASSY, BACK DOOR

main67005-02160supersedes 67005-02180i200801-201012

REAR SPOILER-WITH BUMP LWR & ROOF END; REAR SPOILER-WITH BUMP LWR & ROOF END&REAR WINDOW WIPER-WITH; REAR SPOILER-WITH ROOF END ONLY; REAR SPOILER-WITH ROOF END ONLY&REAR WINDOW WIPER-WITH

main67005-02170supersedes 67005-02190i200801-201012

REAR SPOILER-WITH BUMP LWR & ROOF END; REAR SPOILER-WITH ROOF END ONLY

main67005-02180supersedes 67005-02190i201012

REAR WINDOW WIPER-WITH

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-12100×2i200801-201012

67881AWEATHERSTRIP, BACK DOOR

main67881-02090i200801-201012

68131GLASS, BACK DOOR

main68105-02140supersedes 68105-02150i200801-201012

*HSEA,T=3.1,GREEN; *HSEA,T=3.1,GREEN,REAR WINDOW WIPER-WITH

75129CCUSHION, REAR LICENCE PLATE

main75129-02020×2i200801-201012

main75129-AC010×2i201308

8202WIRING & CLAMP

→ Go to FIG 82-02

7 parts on this diagram · 2 diagrams in section

BACK DOOR PANEL & GLASS for Toyota MATRIX

This section contains 15 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota MATRIX. Key components include: DAM, BACK WINDOW GLASS ADHESIVE, PANEL SUB-ASSY, BACK DOOR, CUSHION, BACK DOOR LOWER STOPPER, BOARD ASSY, BACK DOOR TRIM, WEATHERSTRIP, BACK DOOR.
