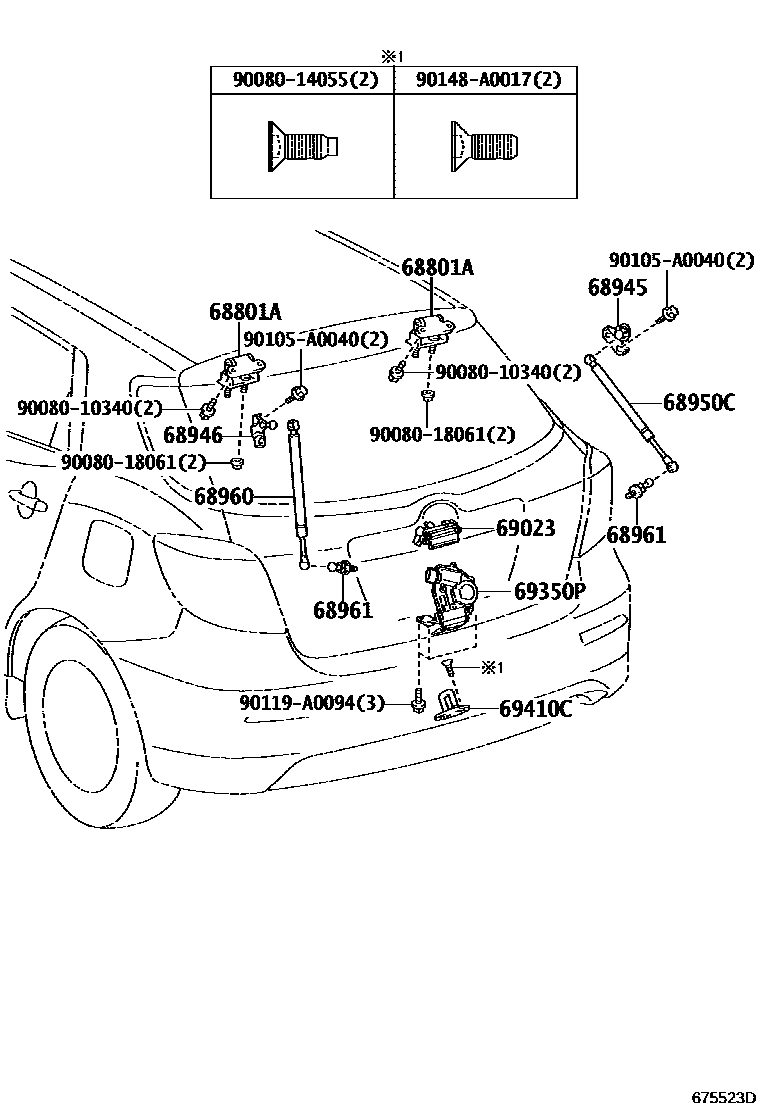

Toyota MATRIX — BACK DOOR LOCK & HANDLE
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
PAD T=1.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH
68960STAY ASSY, BACK DOOR, LH
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH
68961BOLT, BACK DOOR STAY
69023HANDLE SUB-ASSY, BACK DOOR OUTSIDE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
9008010340
main90080-10340
9008014055
main90080-14055
9008018061
main90080-18061
90105A0040
main90105-A0040
90119A0094
main90119-A0094
90148A0017
main90148-A0017
15 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota MATRIX
This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota MATRIX. Key components include: HINGE SUB-ASSY, BACK DOOR, UPPER, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, STAY ASSY, BACK DOOR, RH, STAY ASSY, BACK DOOR, LH.
