Toyota MATRIX — ARMREST & VISOR

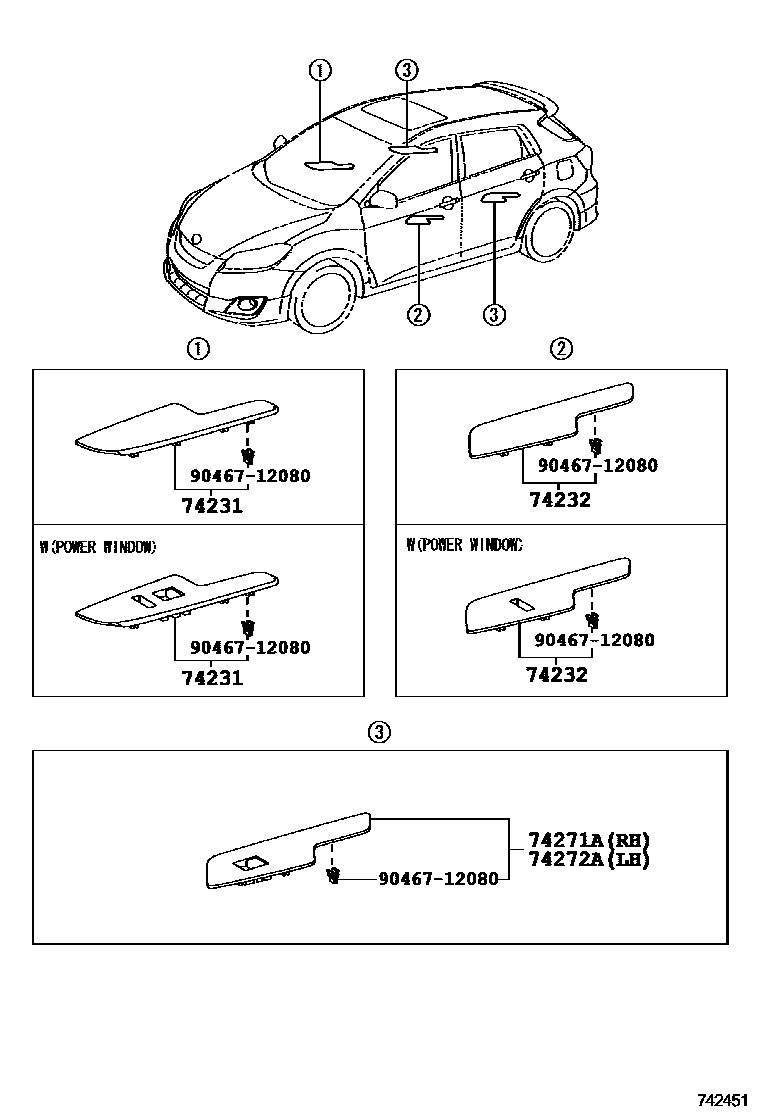

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02670-B0supersedes 74231-02660-B0iZRE142200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02680-B0supersedes 74232-02670-B0iZRE142200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02220-B0supersedes 74271-02210-B0iZRE142200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02210-B0supersedes 74272-02200-B0iZRE142200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#

9046712080

main90467-12080

5 parts on this diagram · 2 diagrams in section
