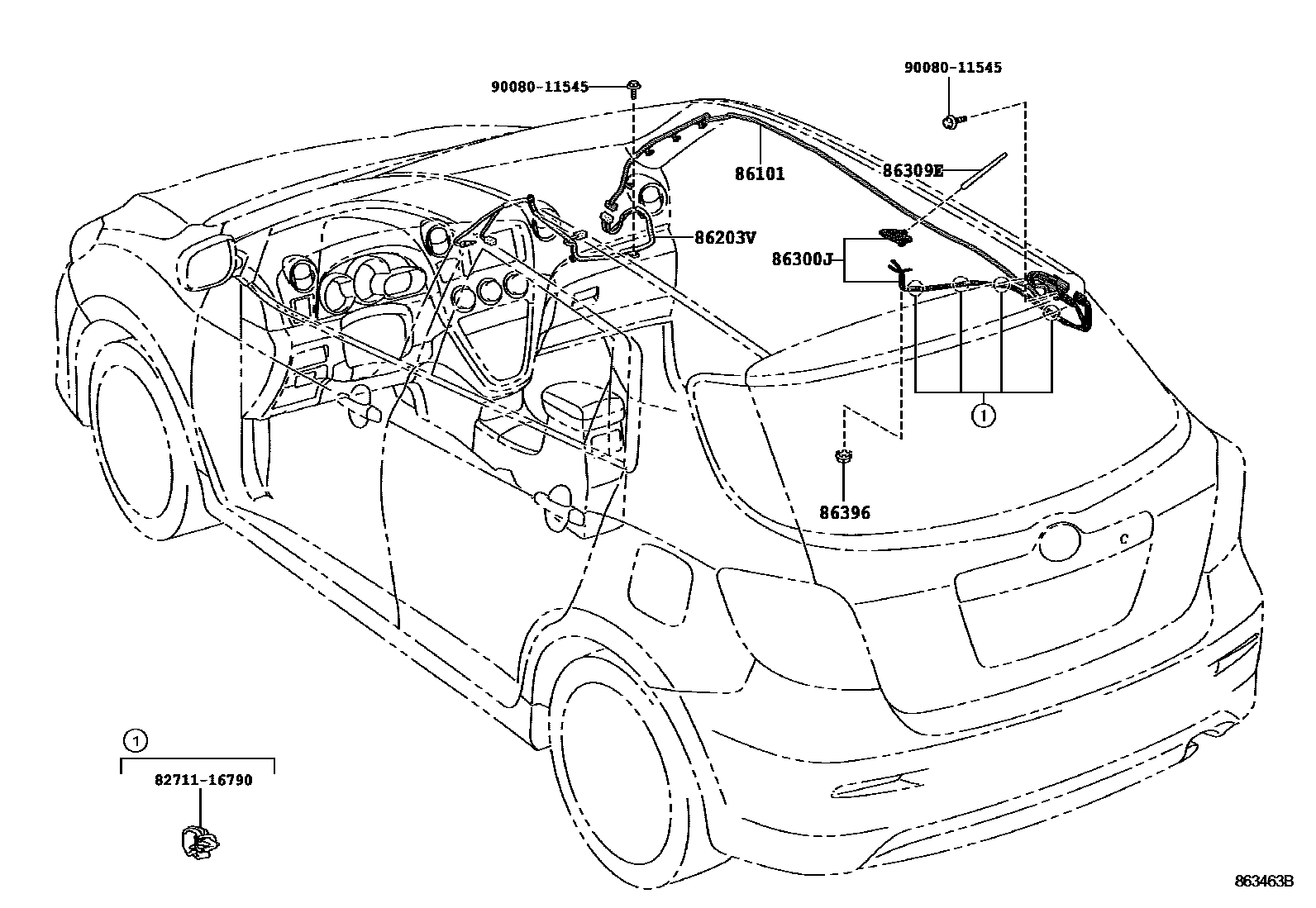

Toyota MATRIX — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-02350iAZE14#,ZRE142200801-201012

main86101-02440iAZE14#,ZRE142201012

sub86101-02450

86203VWIRE SUB ASSY, RADIO

main86203-02070iAZE14#,ZRE142200801-201208

main86203-02200iAZE14#201208-201308

86300JANTENNA ASSY, ROOF

main86300-02390iAZE14#;ZRE142..USA201202-201308

main86960-02020-A0iAZE14#,ZRE142200801-201012

SUPER WHITE 2,040

main86960-02020-B0iAZE14#,ZRE142200801-201012

SILVER ME.,1F7

main86960-02020-B1iAZE14#,ZRE142200801-201012

GRAY ME.,1G3

main86960-02020-C0iAZE14#,ZRE142200801-201012

BLACK MC.,209

main86960-02020-D0iAZE14#,ZRE142200801-201012

RED,3L5

main86960-02020-E0iAZE14#,ZRE142200801-201012

ORANGE ME.,4T6

main86960-02020-J0iAZE14#,ZRE142200801-201012

DK.BLUE MC.,8S6

main86960-02020-J1iAZE14#,ZRE142200801-201012

BLUE ME.,8T7

main86960-02031iAZE14#,ZRE142201012-201202

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-02090iAZE14#,ZRE142200801-200902

main86309-02100iZRE142..CND200903-201308

86396NUT, ANTENNA

main86396-30050iAZE14#,ZRE142200801-201007

main86396-47010iAZE14#,ZRE142201008-201308

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9008011545

main90080-11545

7 parts on this diagram · 1 diagram in section
