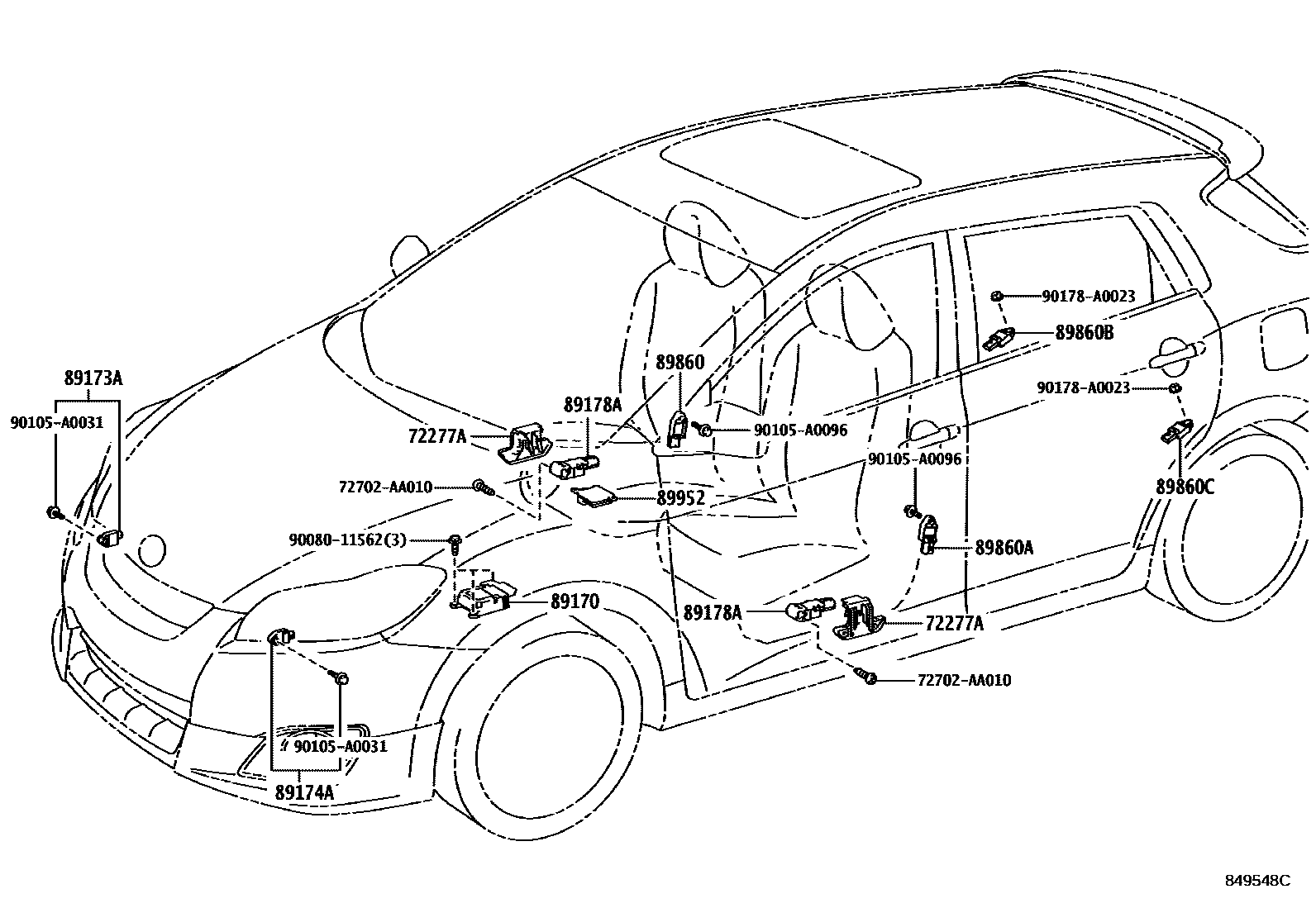

Toyota MATRIX — AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-06010×2i201012

89170SENSOR ASSY, AIRBAG

main89170-01100supersedes 89170-01090i200801-201012

main89170-02A70i201012-201201

main89170-02C50i201201-201203

main89170-02C51i201204-201206

main89170-02C52i201207-201208

main89170-02C53i201208-201308

main89170-01090i200801-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER)

89173ASENSOR, AIRBAG, FRONT RH

main89173-09510i200801-201012

main89173-09690i201012-201308

89174ASENSOR, AIRBAG, FRONT LH

main89173-09510i200801-201012

main89173-09690i201012-201308

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06030×2i200801-201012

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-01010i200801-201012

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02110i201012

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-01010i200801-201012

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02110i201012-201308

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-02090i200801-201012

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02120i201012-201308

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-02090i200801-201012

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02120i201012-201308

89952COMPUTER, OCCUPANT DETECTION

main89952-02020i200801-201006

main89952-02021i201007-201011

72702AA010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-AA010

9008011562

main90080-11562

90105A0031

main90105-A0031

90105A0096

main90105-A0096

90178A0023

main90178-A0023

15 parts on this diagram · 1 diagram in section

AIR BAG for Toyota MATRIX

This section contains 15 genuine Toyota parts for the AIR BAG system of the Toyota MATRIX. Key components include: PROTECTOR, SEAT SLIDE POSITION SENSOR, SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH, SENSOR, SEAT POSITION AIRBAG.
