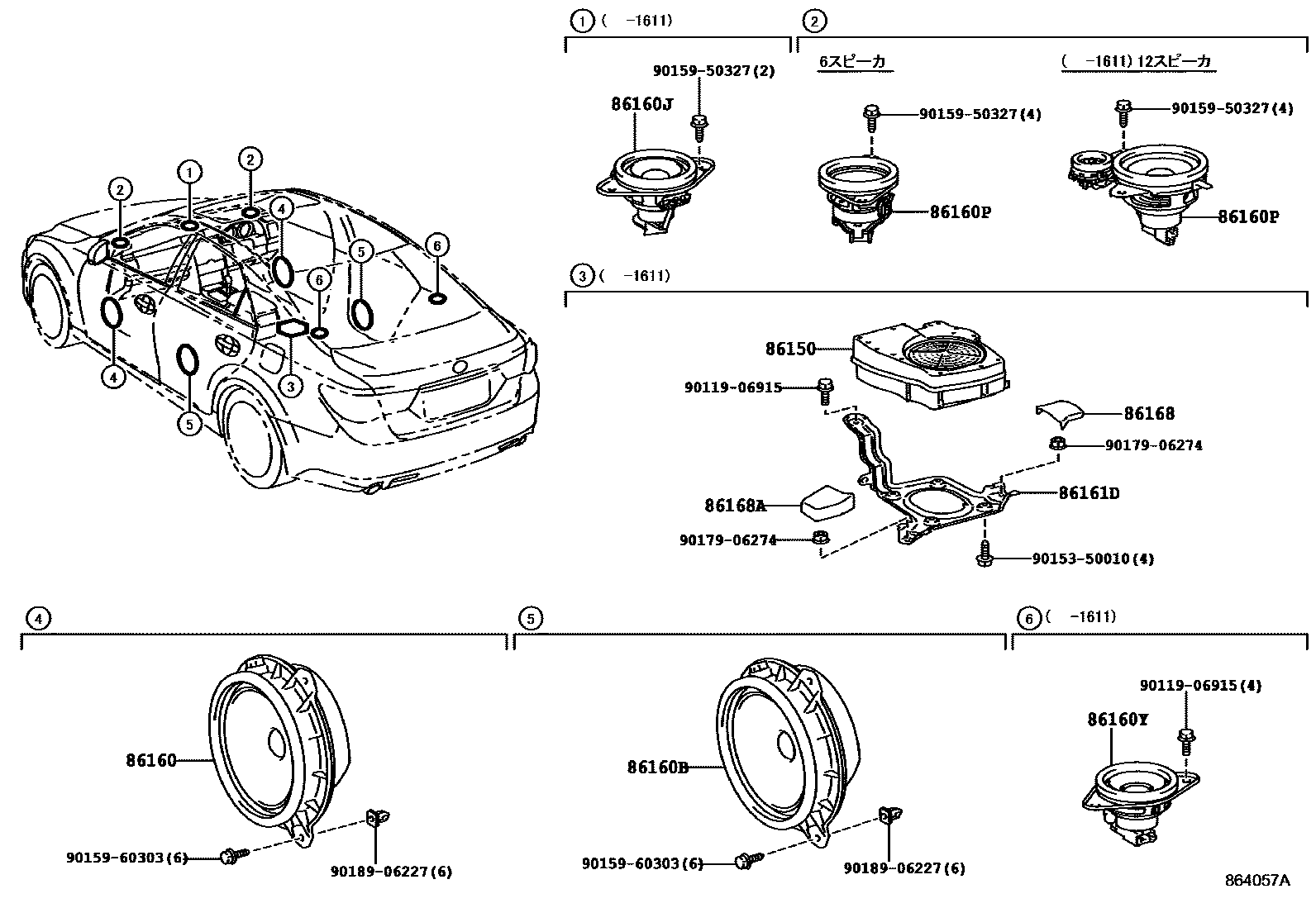

Toyota MARK X — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-22040iGRX133..PREM201208-201611

86160SPEAKER ASSY, FRONT NO.1

main86160-2B580×2iGRX13#200910-201208

main86160-52300×2iGRX13#201208-201611

main86160-22A90×2iGRX133..PREM201208-201611

86160BSPEAKER ASSY, REAR

main86160-2B580×2iGRX13#200910-201208

main86160-52300×2iGRX13#201611

main86160-22A90×2iGRX133..PREM201208-201611

86160JSPEAKER ASSY, FRONT NO.3

main86160-22B20iGRX133..PREM201208-201611

86160PSPEAKER ASSY, FRONT NO.2

main86160-58260×2iGRX13#201208-201611

main86160-22B00iGRX133..PREM201208-201611

main86160-22B10iGRX133..PREM201208-201611

86160YSPEAKER ASSY, REAR NO.2

main86160-22B30×2iGRX133..PREM200910-201208

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-22020iGRX133..PREM201208-201611

86168COVER, SPEAKER MOUNTING

main86168-22010-A2iGRX133..PREM200910-201208

main86168-22010-C0iGRX133..PREM201208-201611

86168ACOVER, SPEAKER MOUNTING, NO.2

main86168-22020-A2iGRX133..PREM200910-201208

main86168-22020-C0iGRX133..PREM201208-201611

9011906915

main90119-06915

9015350010

main90153-50010

9015950327

main90159-50327

9015960303

main90159-60303

9017906274

main90179-06274

9018906227

main90189-06227

15 parts on this diagram · 1 diagram in section
