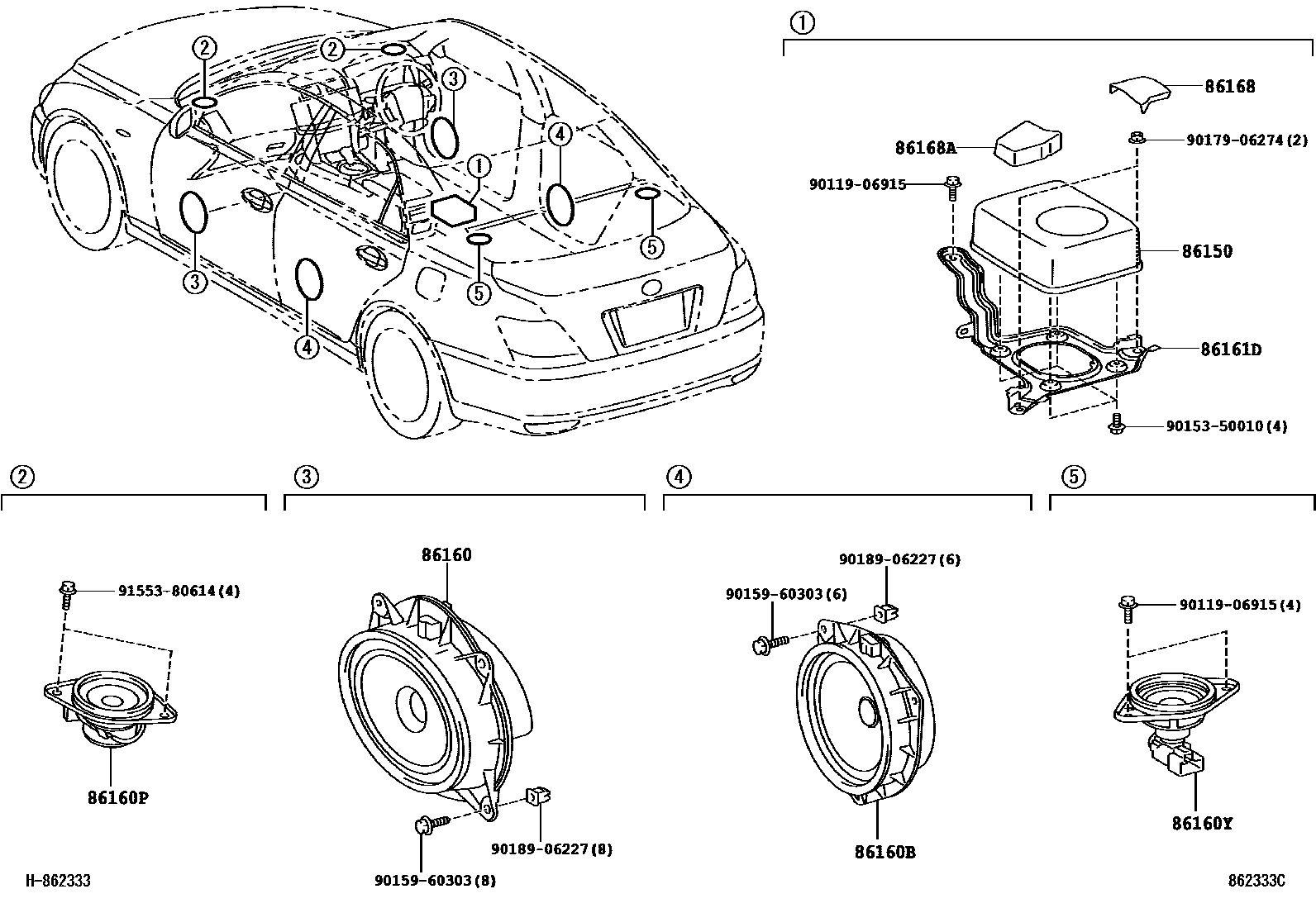

Toyota MARK X — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-21010iGRX121200411-200610

86160SPEAKER ASSY, FRONT NO.1

main86160-22A00×2iGRX12#200610

main86160-22A50×2iGRX121..300GP200610

86160BSPEAKER ASSY, REAR

main86160-22A10×2iGRX12#200610

main86160-22A70×2iGRX121200411-200610

86160PSPEAKER ASSY, FRONT NO.2

main86160-22A20iGRX12#200411-200610

main86160-22A30iGRX12#200411-200610

main86160-22A40iGRX121..300GP200610

main86160-22A60iGRX121200411-200610

86160YSPEAKER ASSY, REAR NO.2

main86160-22A80×2iGRX121200411-200610

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-22020iGRX121200411-200610

86168COVER, SPEAKER MOUNTING

main86168-22010-A0iGRX121200411-200610

main86168-22010-C0iGRX121..300GP200411-200610

main86168-22010-E0iGRX121200411-200610

86168ACOVER, SPEAKER MOUNTING, NO.2

main86168-22020-A0iGRX121200411-200610

main86168-22020-C0iGRX121..300GP200411-200610

main86168-22020-E0iGRX121200411-200610

9011906915

main90119-06915

9015350010

main90153-50010

9015960303

main90159-60303

9017906274

main90179-06274

9018906227

main90189-06227

9155380614

main91553-80614

14 parts on this diagram · 1 diagram in section
