Toyota MARK X — SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
75392ARETAINER, OUTSIDE MOULDING, NO.1
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,062
ICE TITANIUM M.M.,1H4
BLACK,202
PRECIOUS BLACK,219
GINGER RED M.M.,3R6
DK. RED M.M.,3Q3
BRILLIANT YELLOW,5B7
DK.BLUE MC.,8S6
DK.BLUE MC.,8T5
TRUE BLUE M.M.,8W1
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK.BLUE MC.,8T5
75857ACOVER, ROCKER PANEL MOULDING, RH
75858ACOVER, ROCKER PANEL MOULDING, LH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
PRECIOUS BLACK,219
GINGER RED M.M.,3R6
DK. RED M.M.,3Q3
BRILLIANT YELLOW,5B7
DK.BLUE MC.,8S6
DK.BLUE MC.,8T5
TRUE BLUE M.M.,8W1
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK.BLUE MC.,8T5
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
9015960622
main90159-60622
9015960623
main90159-60623
9016240034
main90162-40034
9018904059
main90189-04059
9018906006
main90189-06006
9026904051
main90269-04051

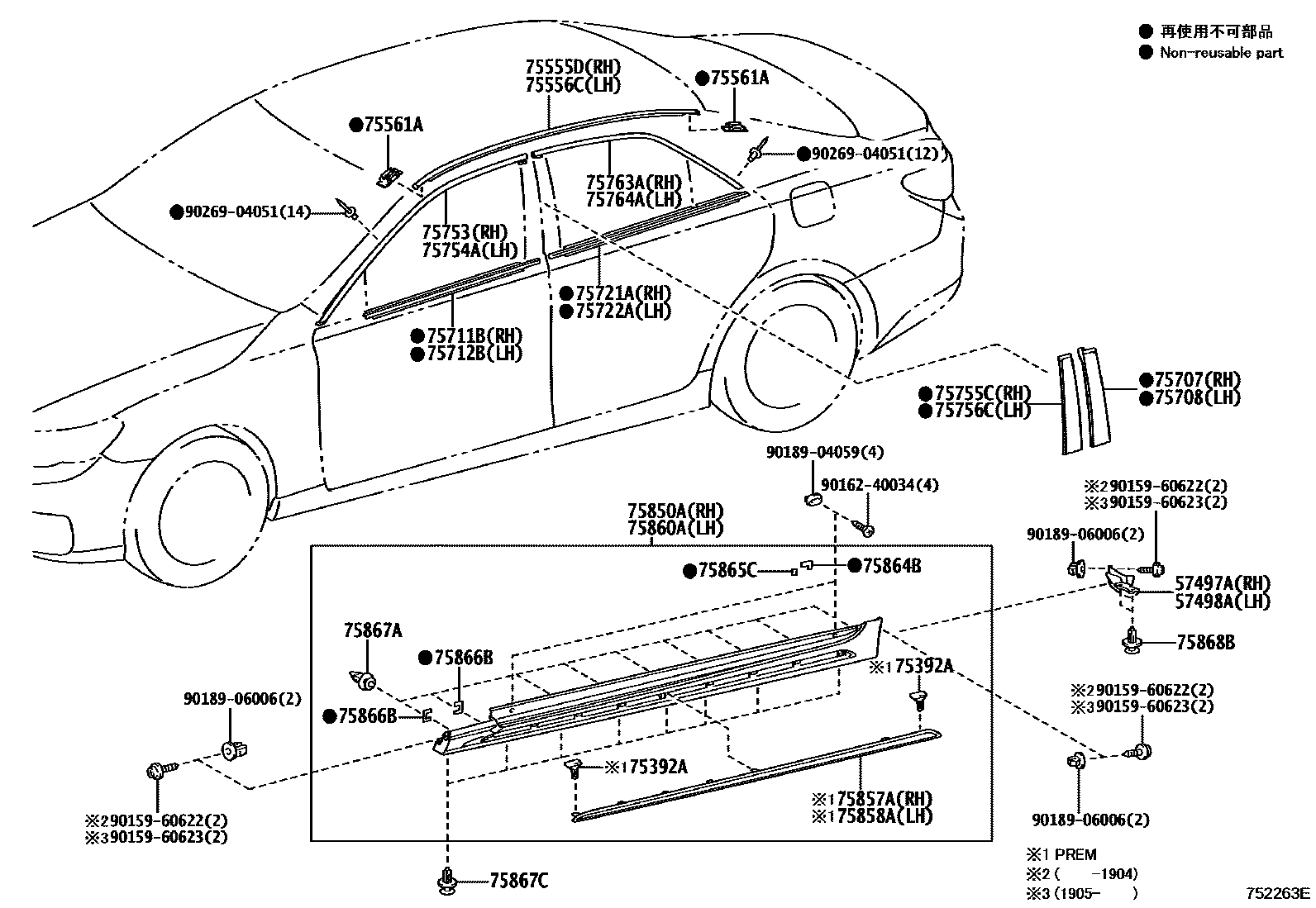

34 parts on this diagram · 1 diagram in section
