Toyota MARK X — PARTIAL ENGINE ASSEMBLY

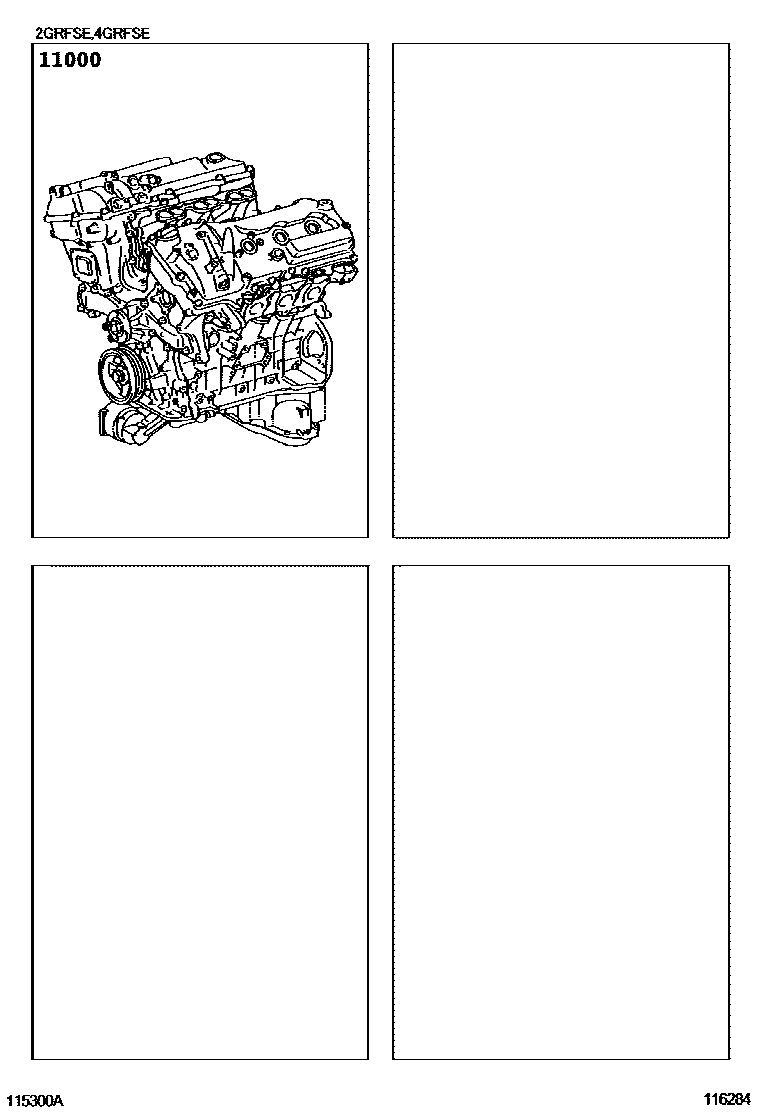

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31A92i201611

main19000-31B11i200910-201105

main19000-31B12i201208-201403

main19000-31B13i201403-201611

main19000-31B21i201208-201611

main19000-31F90i200910-201106

main19000-31G00i200910-201106

1 parts on this diagram · 1 diagram in section
