Toyota MARK X — PARTIAL ENGINE ASSEMBLY

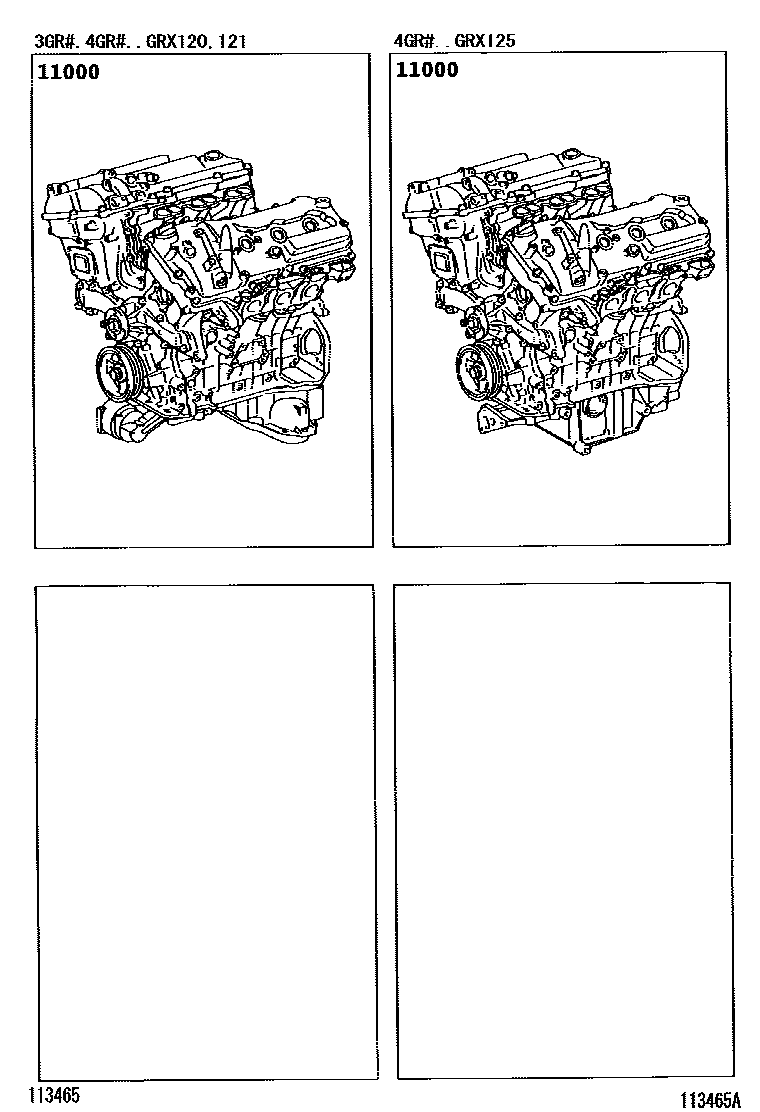

11000ENGINE ASSY, PARTIAL

main19000-31371i4GRFSE..GRX120200411-200610

sub15330-31020

main19000-31382i3GRFSE..GRX121200610-200802

sub19000-31383

sub15330-31020

main19000-31384i3GRFSE..GRX121200802

main19000-31870i4GRFSE..GRX125200411-200610

sub15330-31020

main19000-31A92i4GRFSE..GRX120200802

main19000-31B21i4GRFSE..GRX125200802

1 parts on this diagram · 1 diagram in section
