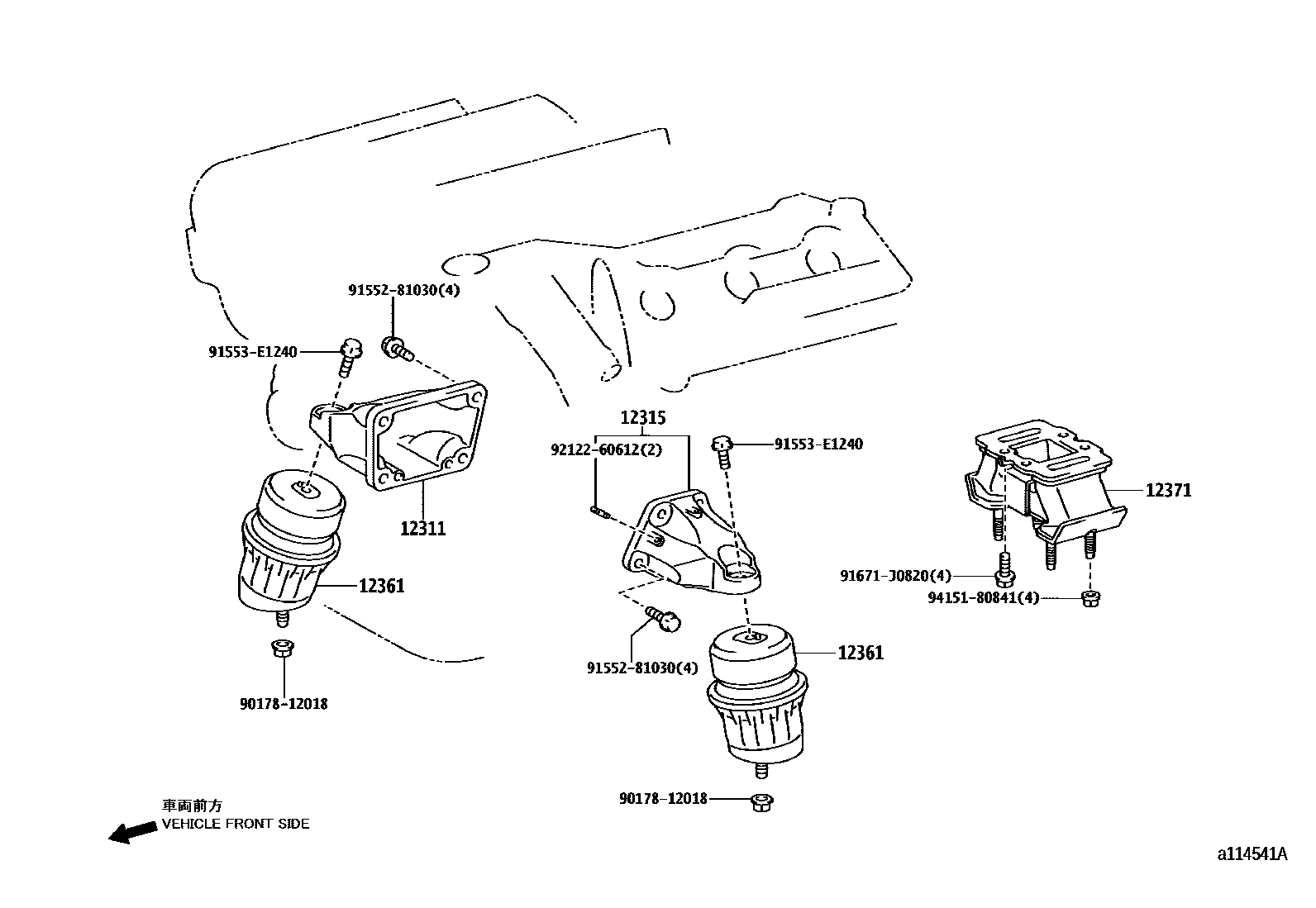

Toyota MARK X — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i3GRFSE,4GRFSE..GRX120,121200411-200610

main12311-31050i4GRFSE..GRX125200411-200610

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i3GRFSE,4GRFSE..GRX120,121200411-200610

main12302-31020i4GRFSE..GRX125200610

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31100×2i3GRFSE,4GRFSE..GRX120,121200411-200610

sub12361-31101

main12361-31110×2i4GRFSE..GRX125200411-200610

main12361-31111×2i4GRFSE..GRX125200906

sub12361-31112

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31070i3GRFSE,4GRFSE..GRX120,121200411-200610

main12371-31081i4GRFSE..GRX125200411-200610

sub12371-31082

9017812018

main90178-12018

9155281030

main91552-81030

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9212260612

main92122-60612

9415180841

main94151-80841

10 parts on this diagram · 2 diagrams in section
