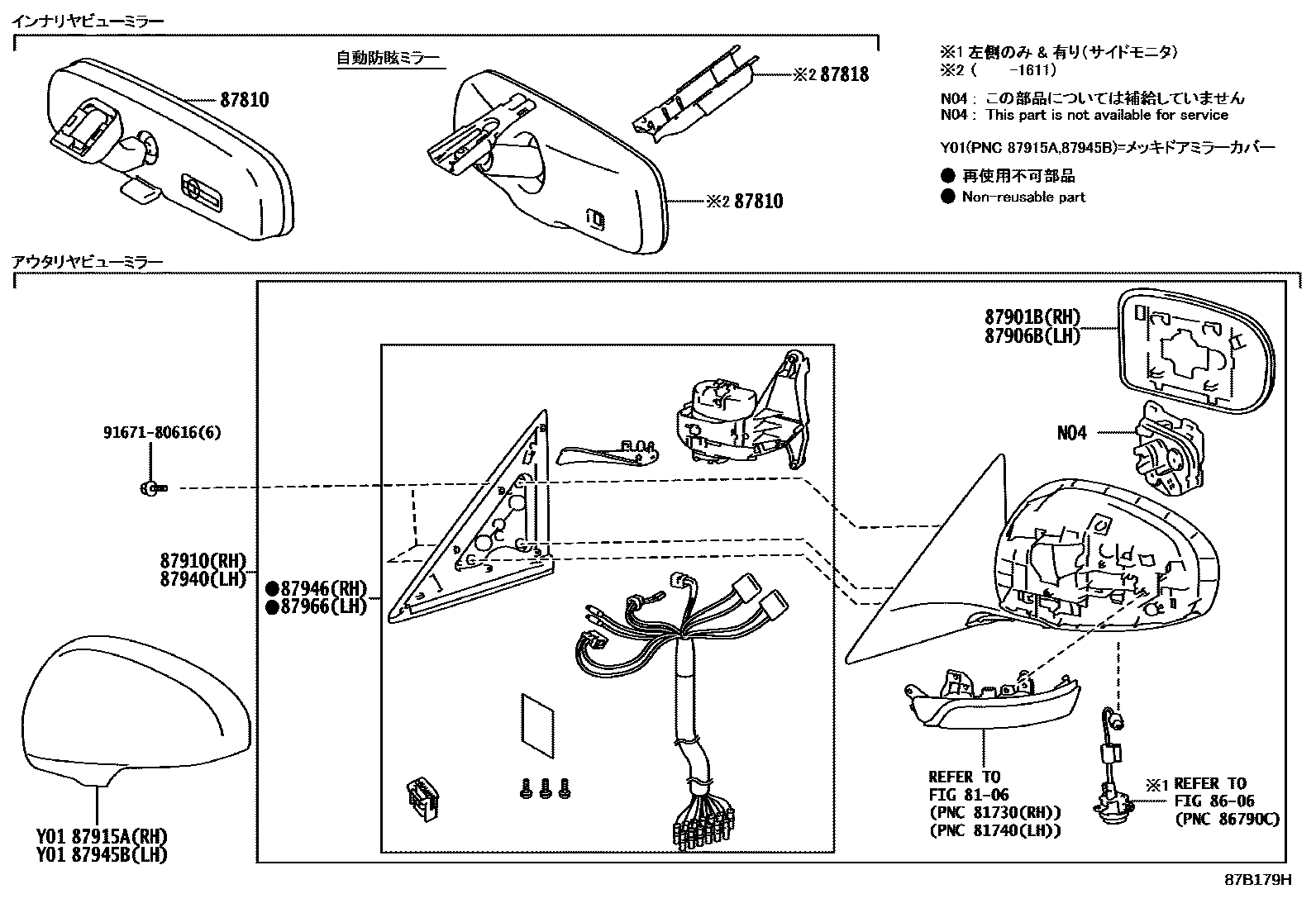

Toyota MARK X — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87818COVER, INNER RR VIEW MIRROR
main87818-30030
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
PRECIOUS BLACK,219
GINGER RED M.M.,3R6
DK. RED M.M.,3Q3
BRONZE M.M.,4T3
BRILLIANT YELLOW,5B7
DK.BLUE MC.,8T5
DK.BLUE MC.,8S6
TRUE BLUE M.M.,8W1
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
PRECIOUS BLACK,219
GINGER RED M.M.,3R6
DK. RED M.M.,3Q3
BRONZE M.M.,4T3
BRILLIANT YELLOW,5B7
DK.BLUE MC.,8T5
DK.BLUE MC.,8S6
TRUE BLUE M.M.,8W1
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9167180616
main91671-80616
13 parts on this diagram · 1 diagram in section
