Toyota MARK X — MIRROR

0001 1 0002 1

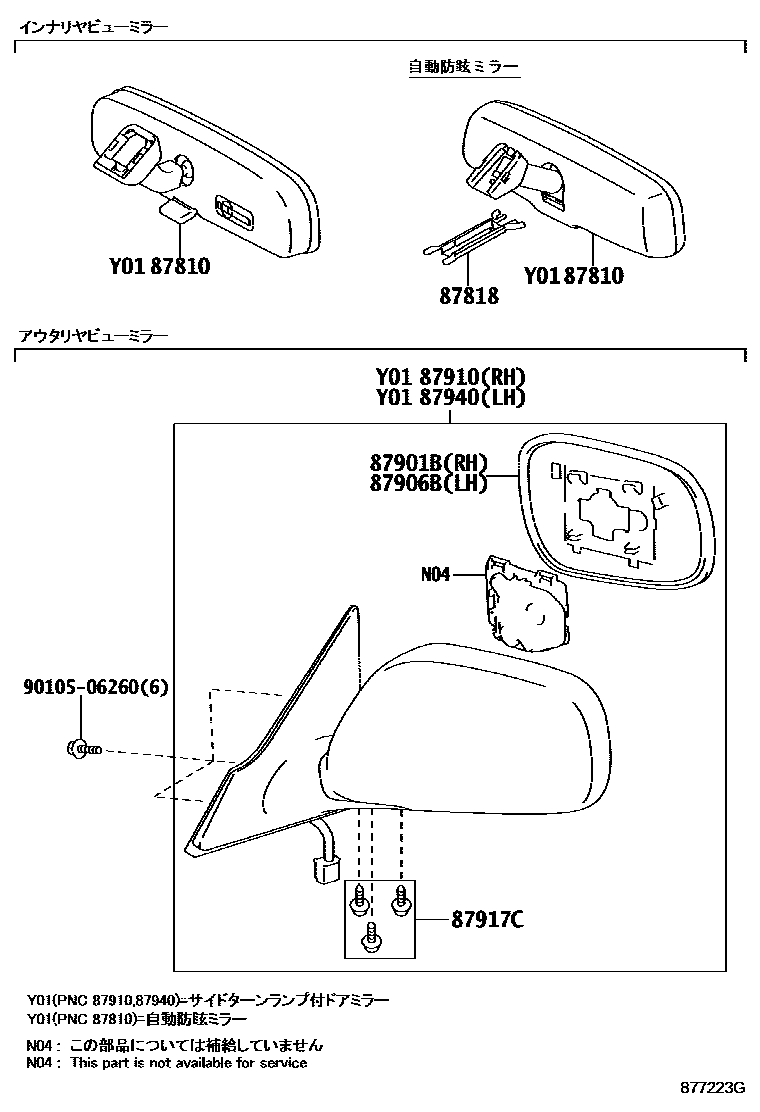

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W060iGRX120,125200411-200607

main87810-0W061supersedes 87810-60191iGRX121200610-200909

87818COVER, INNER RR VIEW MIRROR

main87818-48010iGRX121200610

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-22A00iGRX120,125200411-200610

main87931-22A20supersedes 87931-47120iGRX120,125200610-200909

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-22A10iGRX120,125200411-200610

main87961-22A30supersedes 87961-47120iGRX120,125200610-200909

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-22A00-A0iGRX120,125200411-200610

main87910-22A00-B0iGRX120,125200411-200610

main87910-22A00-C0supersedes 87910-2A120-C0iGRX120,125200411-200610

main87910-22A00-D0supersedes 87910-2A120-D0iGRX120,125200411-200610

main87910-22A00-J0iGRX120,125200411-200610

main87910-22A00-J1supersedes 87910-2A120-J1iGRX120,125200411-200610

main87910-22A20-A0iGRX120,125200610-200806

main87910-22A20-A1supersedes 87910-2A120-A0iGRX120,125200806-200909

main87910-22A20-B0supersedes 87910-2A120-B0iGRX120,125200610-200909

main87910-22A20-C0supersedes 87910-22A10-C0iGRX120,125200610-200909

main87910-22A20-D0supersedes 87910-22A10-D0iGRX120,125200610-200909

BLACKISH RED MC.,3R0

main87910-22A20-H0supersedes 87910-22A10-H0iGRX120,125200610-200909

main87910-22A20-J0supersedes 87910-2A120-J0iGRX120,125200610-200909

main87910-22A00-A1supersedes 87910-22A10-A0iGRX120,125200603-200609

main87910-22A00-B1iGRX120,125200603-200609

main87910-22A20-B1supersedes 87910-22A10-B1iGRX120,125200709-200805

main87910-2A120-A1supersedes 87910-22A10-A0iGRX120,125200603-200609

main87910-2A120-B1iGRX12#200411-200610

87917CSCREW, OUTER MIRROR

main87929-12010×2iGRX12#200411-200610

main87929-12030×2iGRX12#200610-200909

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-22A10-A0iGRX120,125200411-200610

main87940-22A10-B0iGRX120,125200411-200610

main87940-22A10-C0supersedes 87940-22A00-C0iGRX120,125200411-200610

main87940-22A10-D0supersedes 87940-22A00-D0iGRX120,125200411-200610

main87940-22A10-J0iGRX120,125200411-200610

main87940-22A10-J1supersedes 87940-22A00-J1iGRX120,125200411-200610

main87940-22A30-A0supersedes 87940-22A20-A0iGRX120,125200610-200806

main87940-22A30-A1supersedes 87940-22A20-A1iGRX120,125200806-200909

main87940-22A30-B0supersedes 87940-22A20-B0iGRX120,125200610-200909

main87940-22A30-C0supersedes 87940-22A20-C0iGRX120,125200610-200909

main87940-22A30-D0supersedes 87940-22A20-D0iGRX120,125200610-200909

BLACKISH RED MC.,3R0

main87940-22A30-H0supersedes 87940-22A20-H0iGRX120,125200610-200909

main87940-22A30-J0supersedes 87940-22A20-J0iGRX120,125200610-200909

main87940-22A00-A1supersedes 87940-22A20-A0iGRX120,125200603-200609

main87940-22A00-B1iGRX120,125200603-200609

main87940-22A10-A1iGRX121..300G200604-200609

main87940-22A10-B1iGRX120,125200603-200609

main87940-22A30-B1supersedes 87940-22A20-B1iGRX120,125200709-200805

9010506260

main90105-06260

8 parts on this diagram · 2 diagrams in section
