Toyota MARK X — METER

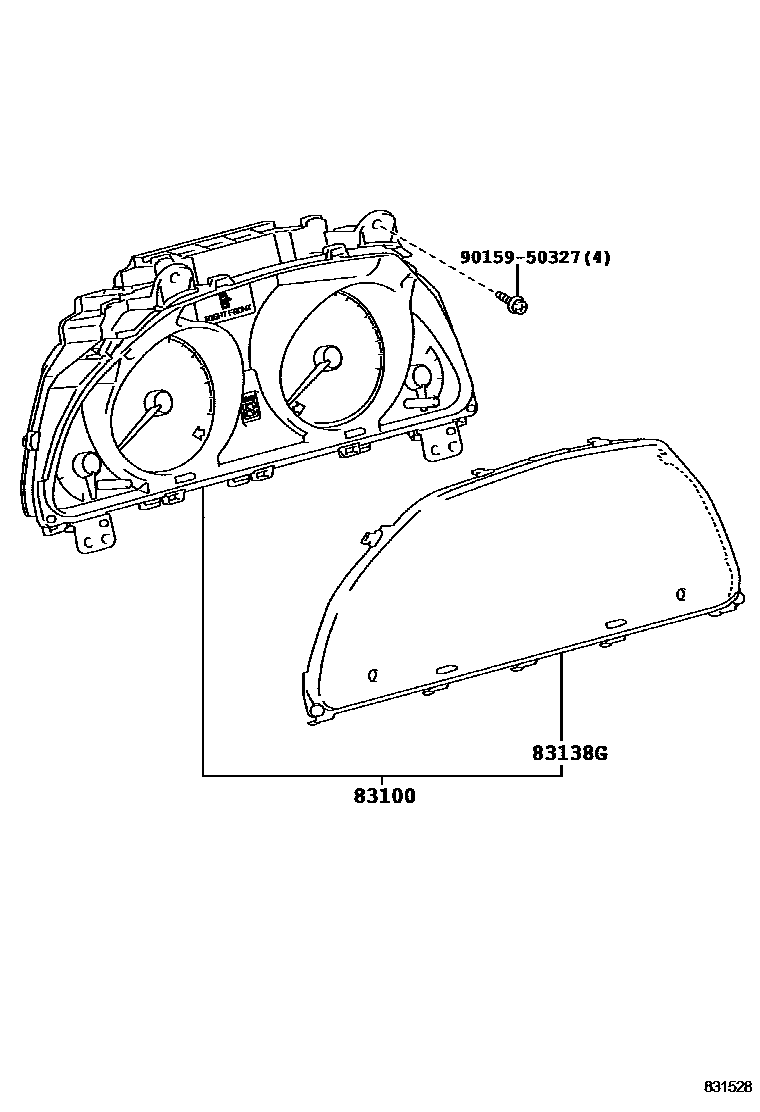

Parts diagram

83100METER ASSY, COMBINATION

main83800-22800i200910-201208

main83800-22860i201208-201611

main83800-22A40i201611

main83800-22830supersedes 83800-22850i200910-201208

main83800-22840supersedes 83800-22870i200910-201208

main83800-22880supersedes 83800-22850i201208-201611

main83800-22A10i201210-201611

main83800-22A30i201505-201510

main83800-22A60i201709

main83800-22A70i201903

83138GGLASS, COMBINATION METER

main83852-22800i201208-201611

main83852-22830i201210-201611

main83852-22A30i201505-201510

9015950327

main90159-50327

3 parts on this diagram · 1 diagram in section
