Toyota MARK X — IGNITION COIL & SPARK PLUG / GLOW PLUG

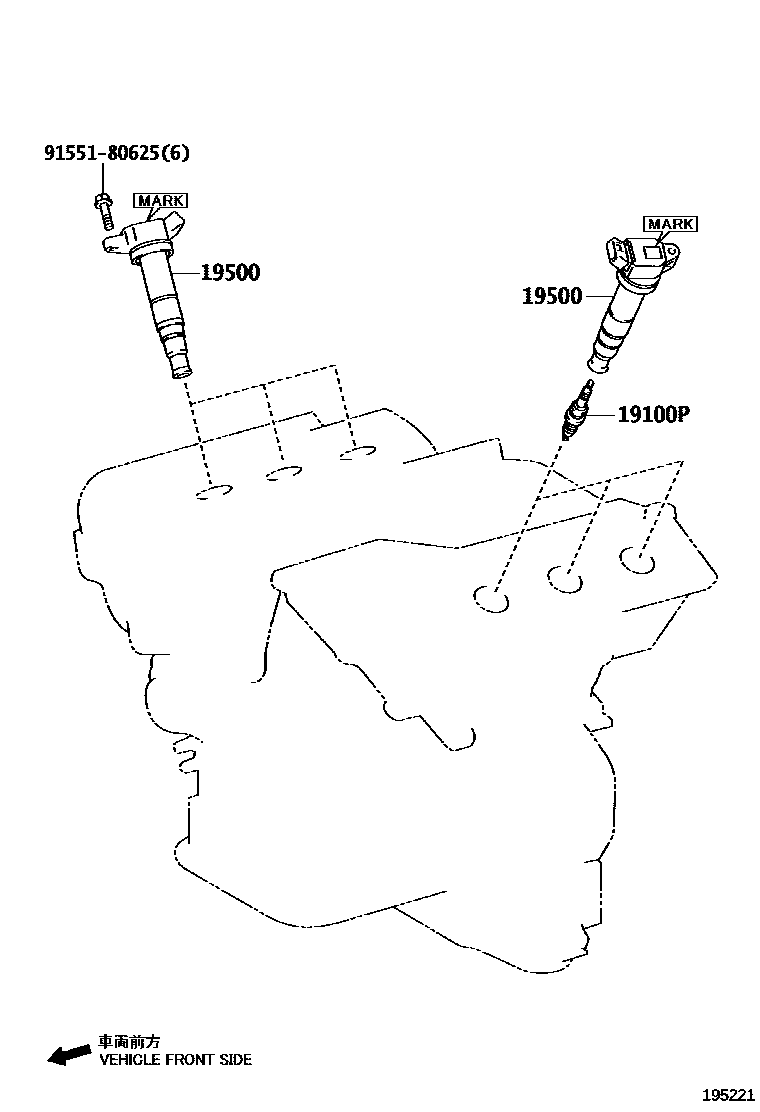

Parts diagram

19100PPLUG, SPARK

main90919-01249×6i201208-201611

19500COIL ASSY, IGNITION

main90919-02256×6i201208-201604

main90919-02273×6i201611

9155180625

main91551-80625

3 parts on this diagram · 1 diagram in section
