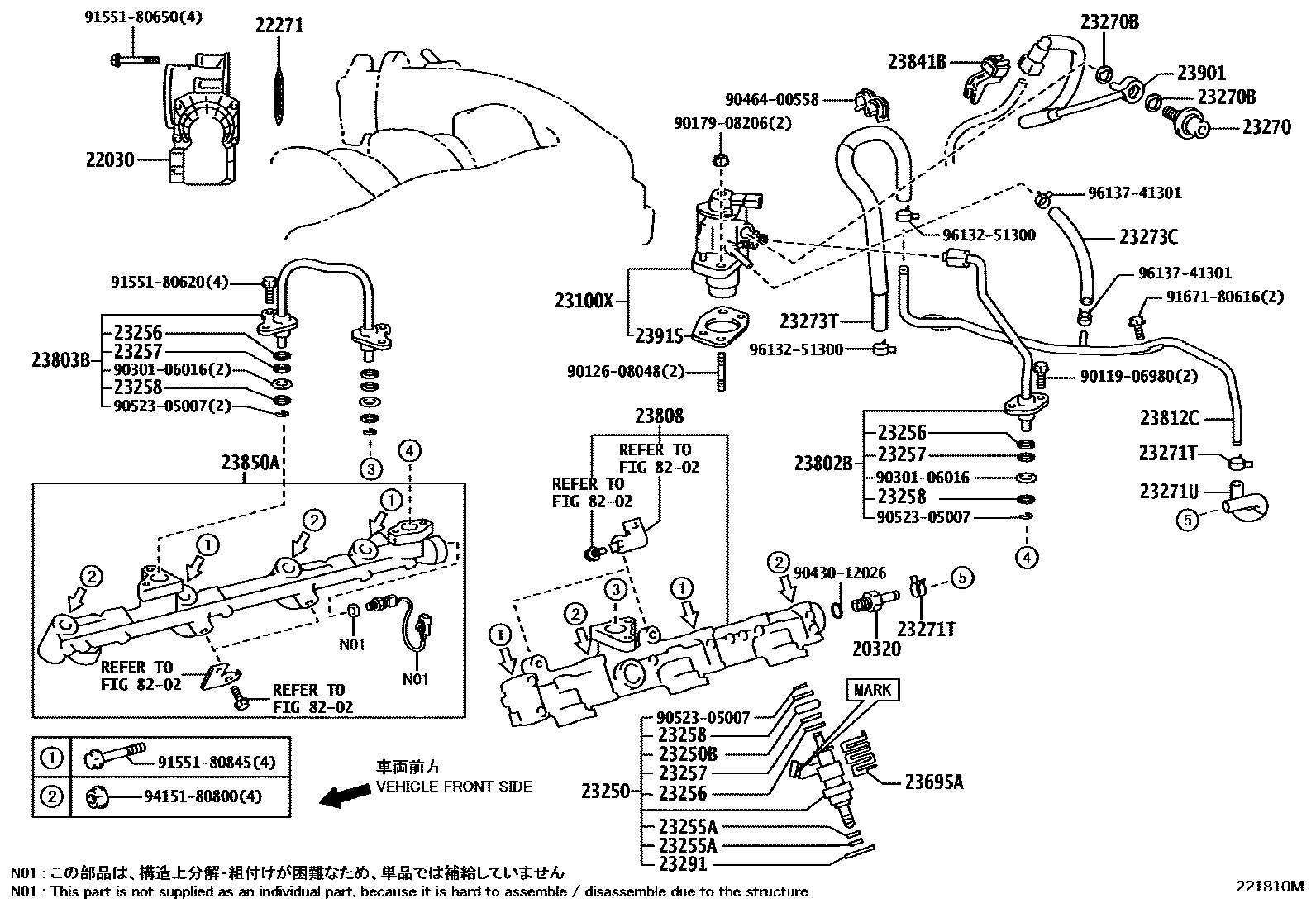

Toyota MARK X — FUEL INJECTION SYSTEM

20320VALVE ASSY, FUEL RELIEF

main20320-31010i3GRFSE,4GRFSE..GRX12#200610

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i3GRFSE,4GRFSE..GRX12#200411-200610

22271GASKET, THROTTLE BODY

main22271-31030i3GRFSE,4GRFSE..GRX12#200411-200610

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39615i3GRFSE,4GRFSE..GRX12#200411-200601

main23100-39617i3GRFSE,4GRFSE..GRX12#200610-200909

sub23100-39618

23250INJECTOR ASSY, FUEL

main23209-39055-A0×6i3GRFSE,4GRFSE..GRX12#200411-200505

MARK BLACK

main23209-39055-B0×6i3GRFSE,4GRFSE..GRX12#200411-200505

MARK BROWN

main23209-39056-A0×6i3GRFSE,4GRFSE..GRX12#200505-200506

MARK BLACK

main23209-39056-B0×6i3GRFSE,4GRFSE..GRX12#200505-200506

MARK BROWN

main23209-39057-A0×6i3GRFSE,4GRFSE..GRX12#200506-200610

MARK BLACK

main23209-39057-B0×6i3GRFSE,4GRFSE..GRX12#200610

MARK BROWN

23250BRING, O(FOR FUEL INJECTOR)

main90301-06013×6i3GRFSE,4GRFSE..GRX12#200411-200506

main90301-06018×6i3GRFSE,4GRFSE..GRX12#200506-200610

23255ASEAL, FUEL INJECTOR

main23255-31010×12i3GRFSE,4GRFSE..GRX12#200411-200610

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010×9i3GRFSE,4GRFSE..GRX12#200411-200610

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010×9i3GRFSE,4GRFSE..GRX12#200411-200610

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28010×9i3GRFSE,4GRFSE..GRX12#200411-200505

main23258-28011×9i3GRFSE,4GRFSE..GRX12#200505-200610

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i3GRFSE,4GRFSE..GRX12#200411-200610

sub23207-31021

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010×2i3GRFSE,4GRFSE..GRX12#200411-200610

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main96137-51501×2i3GRFSE,4GRFSE..GRX12#200411-200610

23271UHOSE, FUEL, NO.1

main23271-31040i3GRFSE,4GRFSE..GRX12#200411-200507

main23271-31060i3GRFSE,4GRFSE..GRX12#200507-200610

23273CHOSE, FUEL, NO.2

main23273-31010i3GRFSE,4GRFSE..GRX12#200411-200507

main23273-31050i3GRFSE,4GRFSE..GRX12#200507-200610

23273THOSE, FUEL, NO.3

main23273-31040i3GRFSE,4GRFSE..GRX12#200411-200610

23291INSULATOR, INJECTOR VIBRATION

main23291-31011×6i3GRFSE,4GRFSE..GRX12#200411-200610

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i3GRFSE,4GRFSE..GRX12#200411-200610

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31040i3GRFSE,4GRFSE..GRX12#200411-200505

main23802-31041i3GRFSE,4GRFSE..GRX12#200505-200506

main23802-31042i3GRFSE,4GRFSE..GRX12#200506-200610

main23802-31043i3GRFSE,4GRFSE..GRX12#200611

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-31010i3GRFSE,4GRFSE..GRX12#200411-200505

main23803-31011i3GRFSE,4GRFSE..GRX12#200505-200506

main23803-31012i3GRFSE,4GRFSE..GRX12#200506-200610

main23803-31013i3GRFSE,4GRFSE..GRX12#200611

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-31010i3GRFSE,4GRFSE..GRX12#200411-200610

23812CPIPE, FUEL, NO.2

main23812-31020i3GRFSE,4GRFSE..GRX12#200411-200610

sub23812-31050

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3GRFSE,4GRFSE..GRX12#200705-200909

main23841-28010i3GRFSE,4GRFSE..GRX12#200610-200704

23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH

main23850-31020i3GRFSE,4GRFSE..GRX12#200411-200610

23901TUBE SUB-ASSY, FUEL

main23901-31010i3GRFSE,4GRFSE..GRX12#200411-200507

main23901-31011i3GRFSE,4GRFSE..GRX12#200507-200610

23915INSULATOR, FUEL PUMP

main23915-46011i3GRFSE,4GRFSE..GRX12#200411-200610

8202

9011906980

main90119-06980

9012608048

main90126-08048

9017908206

main90179-08206

9030106016

main90301-06016

9043012026

main90430-12026

9046400558

main90464-00558

9052305007

main90523-05007

9155180620

main91551-80620

9155180650

main91551-80650

9155180845

main91551-80845

9167180616

main91671-80616

9415180800

main94151-80800

9613251300

main96132-51300

9613741301

main96137-41301

41 parts on this diagram · 1 diagram in section
