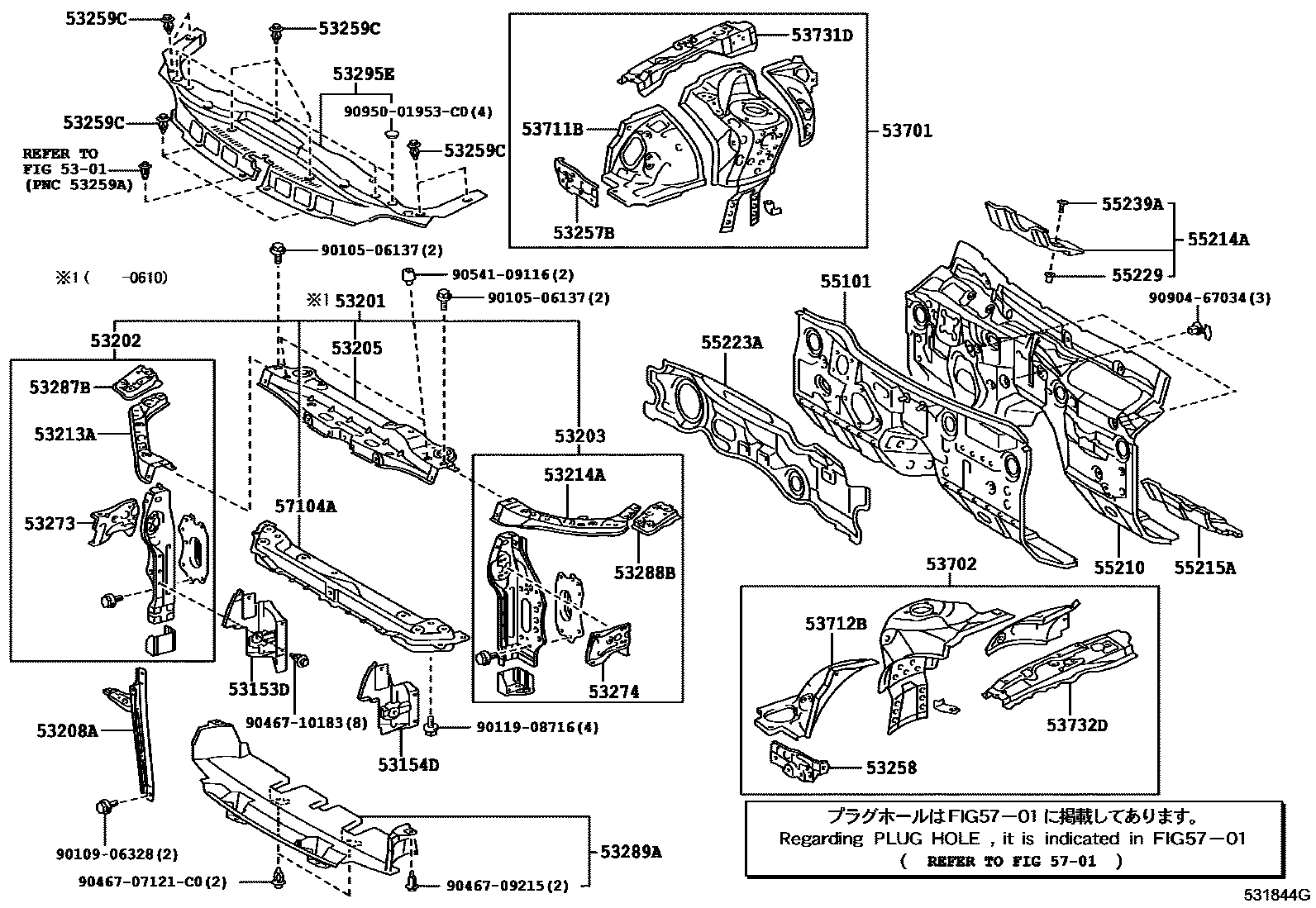

Toyota MARK X — FRONT FENDER APRON & DASH PANEL
5301
53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
53201SUPPORT SUB-ASSY, RADIATOR
sub90109-08088
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
sub53216-22161
53208ASUPPORT SUB-ASSY, HOOD LOCK
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
sub53712-24060
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55239APLATE, DASH PANEL INSULATOR, NO.3
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
9010506137
main90105-06137
9010906328
main90109-06328
9011908716
main90119-08716
9046707121C0
main90467-07121C0
9046709215
main90467-09215
9046710183
main90467-10183
9054109116
main90541-09116
9090467034
main90904-67034
9095001953C0
main90950-01953C0
43 parts on this diagram · 1 diagram in section
