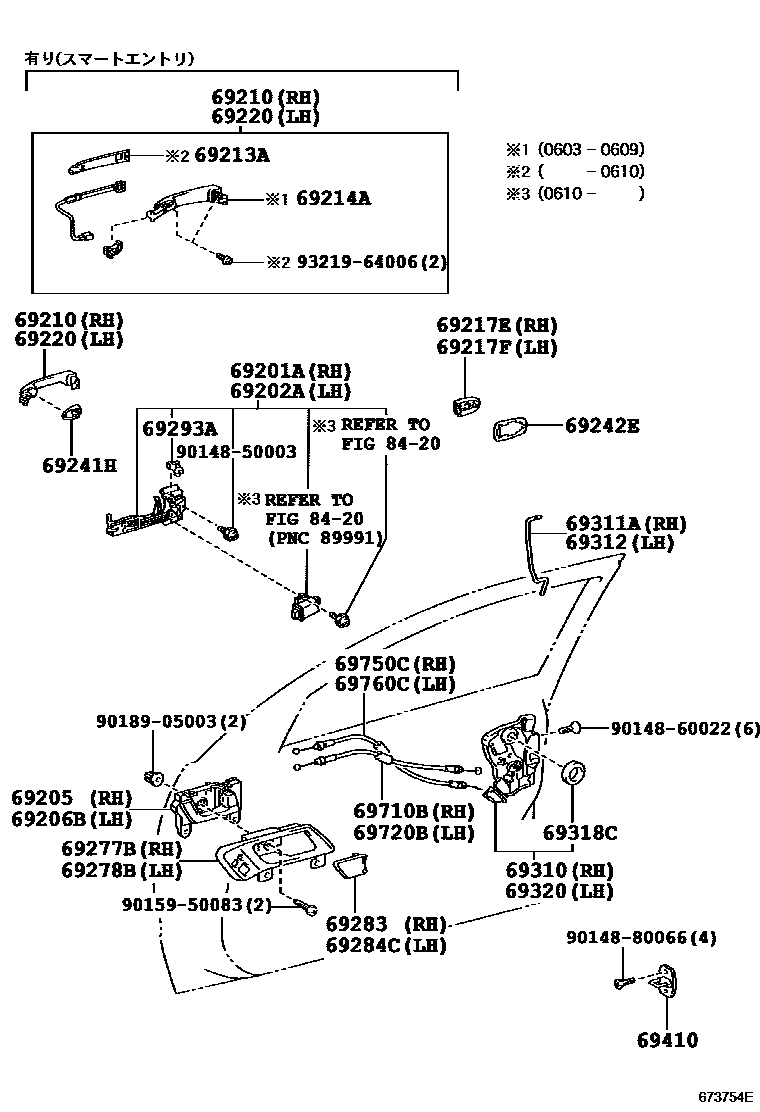

Toyota MARK X — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SILVER ME.,1F7
BLACK MC.,211
SILVER ME.,1F7
BLACK,202
TURQUOISE M.M.,776
69213AHANDLE, DOOR OUTSIDE, NO.1
69214AHANDLE, DOOR OUTSIDE, NO.2
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
BLACK MC.,211
BLACKISH RED MC.,3R0
TURQUOISE M.M.,776
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SILVER ME.,1F7
BLACK,202
BLACK MC.,211
BLACKISH RED MC.,3R0
TURQUOISE M.M.,776
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SILVER ME.,1F7
BLACK MC.,211
SILVER ME.,1F7
BLACK,202
BLACKISH RED MC.,3R0
TURQUOISE M.M.,776
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015950083
main90159-50083
9018905003
main90189-05003
9321964006
main93219-64006
34 parts on this diagram · 1 diagram in section
