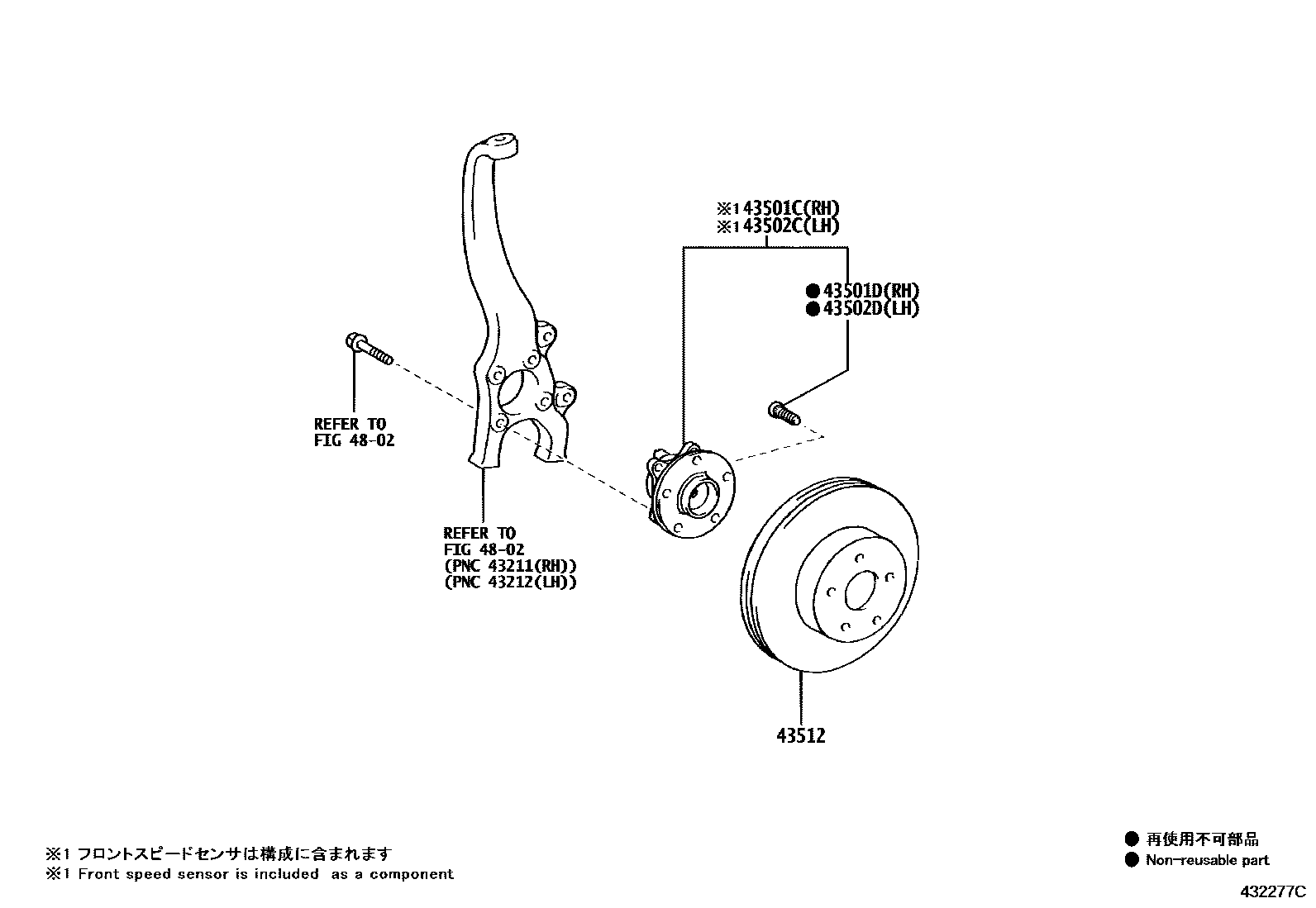

Toyota MARK X — FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30010iGRX130,133200910-201208

main43550-30011iGRX130,133201611

main43550-30030iGRX135201208-201507

main43550-30031iGRX135201508-201611

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iGRX13#201508-201611

main90942-02070×5iGRX13#200910-201208

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGRX130,133200910-201208

main43560-30011iGRX130,133201611

main43560-30030iGRX135201208-201507

main43560-30031iGRX135201611

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iGRX13#201611

main90942-02070×5iGRX135201208-201507

43512DISC, FRONT

main43512-30310×2iGRX130,135201611

main43512-30350iGRX133201208-201611

sub43512-30351

main43516-30040iGRX133200910-201208

sub43516-30041

main43512-30371iGRX133..350S201505-201510

sub43512-53050

main43512-WY010iGRX130,133..250G,350S201210-201611

sub43512-WY011

main43516-30061supersedes 43516-30040iGRX130,133..250S,35RDS201709

sub43516-53030

main43516-WY020iGRX130,133..250G,350S201210-201611

sub43516-WY021

4802

6 parts on this diagram · 2 diagrams in section
