Toyota MARK X — ELECTRONIC FUEL INJECTION SYSTEM

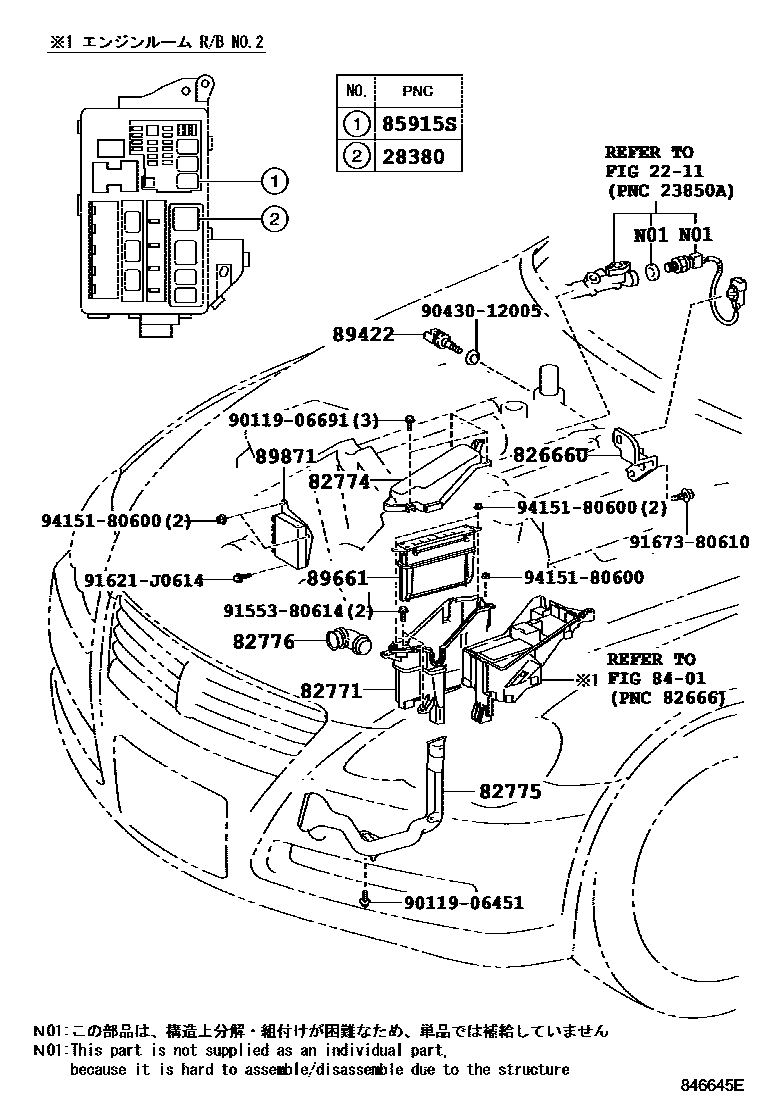

Parts diagram

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

28380RELAY ASSY, FUEL PUMP

main90987-03003i200411-200909

82666UHOLDER, CONNECTOR

main82666-30780i200411-200610

82771BOX, ENGINE ROOM ECU

main82771-30040i200411-200909

82774COVER, ENGINE ROOM ECU

main82774-30050i200411-200610

82775DUCT, ENGINE ROOM ECU INLET

main82775-22010i200411-200610

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-22030i200411-200610

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027i200411-200909

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200411-200610

89661COMPUTER, ENGINE CONTROL

main89661-22A00i200610

main89661-22A20i200610

main89661-22A30i200610

main89661-2A230i200411-200509

main89661-2A230i200411-200509

main89661-2A231i200509-200610

main89661-2A231i200509-200610

main89661-2A240i200411-200509

main89661-2A241i200509-200610

main89666-22070i200411-200509

main89666-22071i200509-200610

main89666-22080i200411-200509

main89666-22081i200509-200610

89871DRIVER, INJECTOR

main89871-30030i200411-200610

9011906451

main90119-06451

9011906691

main90119-06691

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167380610

main91673-80610

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota MARK X

This section contains 19 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota MARK X. Key components include: FUEL INJECTION SYSTEM, RELAY ASSY, FUEL PUMP, HOLDER, CONNECTOR, BOX, ENGINE ROOM ECU, COVER, ENGINE ROOM ECU.
