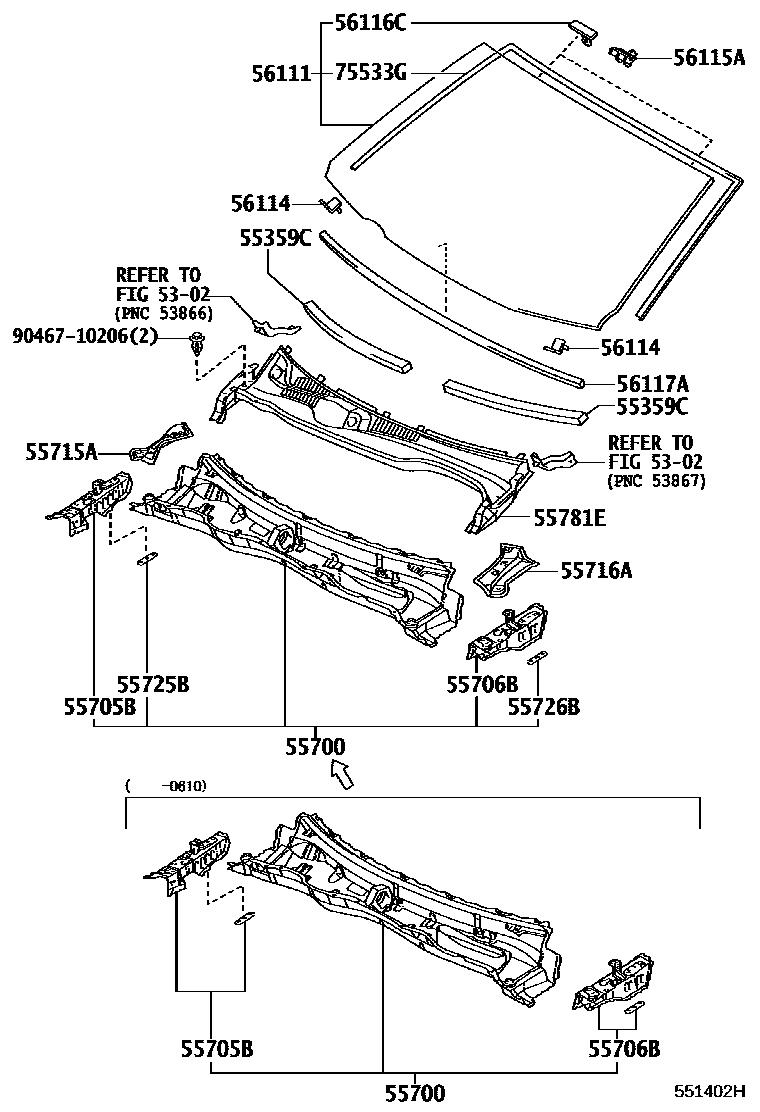

Toyota MARK X — COWL PANEL & WINDSHIELD GLASS

5302

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-22050×2iGRX12#200411-200610

55700PANEL ASSY, FRONT

main55700-2A160iGRX12#200610-200909

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-22050iGRX12#200411-200610

main55705-22060iGRX12#200610

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-22050iGRX12#200411-200610

main55706-22060iGRX12#200610

55715ABRACE, COWL TOP TO APRON, RH

main55715-22120iGRX12#200411-200610

55716ABRACE, COWL TOP TO APRON, LH

main55716-22110iGRX12#200610-200909

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020iGRX12#200610-200909

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-51020iGRX12#200610-200909

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-22090supersedes 55708-22080iGRX12#200610

56111GLASS, WINDSHIELD

main56101-22010supersedes 56101-22020iGRX120,125200806

main56101-22040supersedes 56101-22020iGRX120,125200610

main56101-22050supersedes 56101-22020iGRX120,125200411-200610

main56101-22170supersedes 56101-22160iGRX121200610

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iGRX12#200610

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iGRX12#200411-200610

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iGRX120,125200411-200610

56117ADAM, WINDOW GLASS ADHESIVE

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-22350iGRX12#200411-200610

9046710206

main90467-10206

17 parts on this diagram · 1 diagram in section
