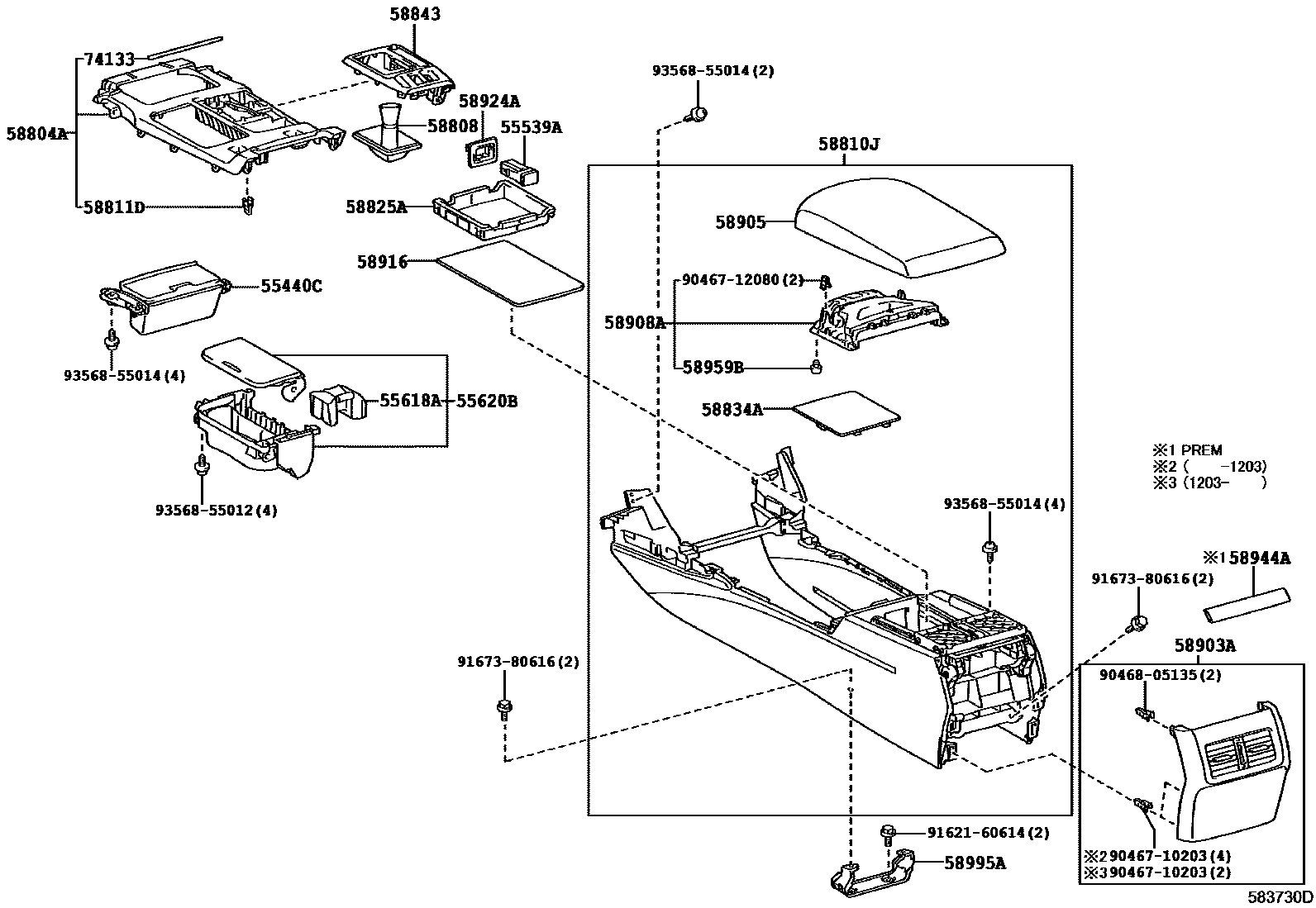

Toyota MARK X — CONSOLE BOX & BRACKET
55440CBOX ASSY, INSTRUMENT PANEL
GRAY,TRIM2#
BITTERBLACK,TRIM24
BLACK,TRIM2#
BLACK,TRIM2#
BROWN,TRIM0#,4#
IVORY,TRIM2#
SHELL,TRIM0#,2#
BLACK,TRIM2#
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
GRAY,TRIM2#
BITTERBLACK,TRIM24
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM2#
SHELL,TRIM0#,2#
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM2#
IVORY,TRIM2#
GRAY,TRIM2#
BITTERBLACK,TRIM24
BLACK,TRIM2#
IVORY,TRIM20
SHELL,TRIM0#,2#
BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,4#
BLACK,TRIM2#
BLACK/YELLOW,TRIM25,26
BLACK/GRAY,TRIM20,22,24
58810JBOX ASSY, CONSOLE
SHELL,TRIM0#
IVORY/BLACK,TRIM20
IVORY/BLACK/MELLOW WHITE,TRIM20
BLACK,TRIM22,24,26
BLACK/YELLOW,TRIM26
BLACK/GRAY,TRIM24
YELLOW,TRIM25
SHELL,TRIM0#
IVORY/BLACK,TRIM20
IVORY/BLACK/MELLOW WHITE,TRIM20
FLAXEN/BEIGE,TRIM0#
BLACK/ECRU,TRIM24
BLACK/RED,TRIM22,25
BLACK/LT.GRAY,TRIM21
58811DCLIP(FOR CONSOLE BOX)
58834ACOVER, CONSOLE, LOWER
58843BEZEL, SHIFTING HOLE
58903APANEL SUB-ASSY, CONSOLE REAR END
SHELL,TRIM0#
BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
SHELL,TRIM0#
IVORY/BLACK,TRIM20
IVORY/BLACK/MELLOW WHITE,TRIM20
BLACK,TRIM4#
BLACK/YELLOW,TRIM26
BLACK/GRAY,TRIM24
YELLOW,TRIM25
SHELL,TRIM0#
IVORY/BLACK,TRIM20
IVORY/BLACK/MELLOW WHITE,TRIM20
FLAXEN/BEIGE,TRIM0#
BLACK/ECRU,TRIM24
BLACK/RED,TRIM22,25
BLACK/LT.GRAY,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
SHELL,TRIM0#
BLACK,TRIM2#
58916MAT, BOX BOTTOM
58924APANEL, CONSOLE REAR END, NO.2
58944COVER, PARKING BRAKE HOLE
58944ACOVER, CONSOLE, REAR
BROWN,TRIM0#
IVORY,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
74133SEAL, FRONT ASH RECEPTACLE
9046710203
main90467-10203
9046712080
main90467-12080
9046805135
main90468-05135
9162160614
main91621-60614
9167380616
main91673-80616
9356855012
main93568-55012
9356855014
main93568-55014
28 parts on this diagram · 2 diagrams in section
