Toyota MARK X — ARMREST & VISOR

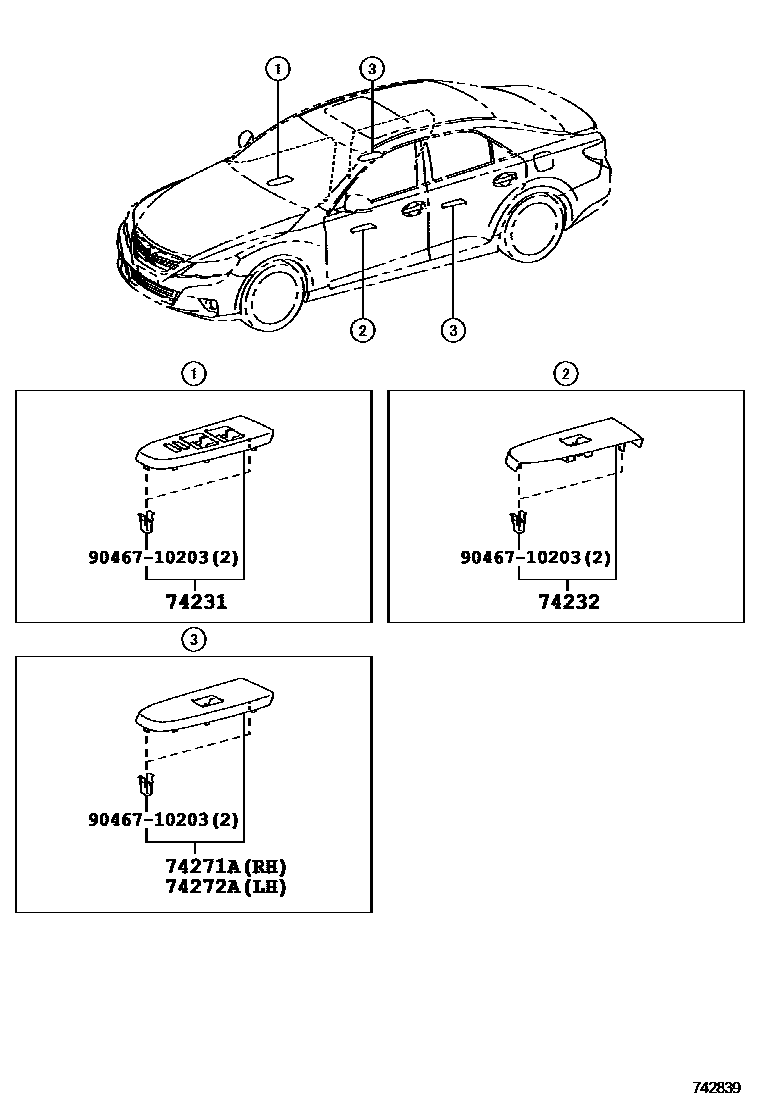

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-22520-B0i200910-201208
GRAY,TRIM2#
main74231-22520-B1i201208-201611
BITTERBLACK,TRIM24
main74231-22520-C0i201208-201611
BLACK,TRIM22
main74231-22520-C2i201611
BLACK,TRIM2#
main74231-22520-E0i200910-201208
BROWN,TRIM0#,4#
main74231-22520-E1i201208-201611
IVORY,TRIM2#
main74231-22520-E2i201611
SHELL,TRIM0#,2#
main74231-22550-C0i201611
BLACK,TRIM2#
main74231-22530i201210-201407
main74231-22540-C0i201407-201611
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-22330-B0i200910-201208
GRAY,TRIM2#
main74232-22330-B1i201208-201611
BITTERBLACK,TRIM24
main74232-22330-C0i201208-201611
BLACK,TRIM22
main74232-22330-C2i201611
BLACK,TRIM2#
main74232-22330-E0i200910-201208
BROWN,TRIM0#,4#
main74232-22330-E1i201208-201611
IVORY,TRIM2#
main74232-22330-E2i201611
SHELL,TRIM0#,2#
main74232-22360-C0i201611
BLACK,TRIM2#
main74232-22340i201210-201611
main74232-22350-C0i201407-201611
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-22390-B0i200910-201208
GRAY,TRIM2#
main74271-22390-B1i201208-201611
BITTERBLACK,TRIM24
main74271-22390-C0i201208-201611
BLACK,TRIM22
main74271-22390-C2i201611
BLACK,TRIM2#
main74271-22390-E0i200910-201208
BROWN,TRIM0#,4#
main74271-22390-E1i201208-201611
IVORY,TRIM2#
main74271-22390-E2i201611
SHELL,TRIM0#,2#
main74271-22420-C0i201611
BLACK,TRIM2#
main74271-22400i201210-201611
main74271-22410-C0i201407-201611
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-22390-B0i200910-201208
GRAY,TRIM2#
main74272-22390-B1i201208-201611
BITTERBLACK,TRIM24
main74272-22390-C0i201208-201611
BLACK,TRIM22
main74272-22390-C2i201611
BLACK,TRIM2#
main74272-22390-E0i200910-201208
BROWN,TRIM0#,4#
main74272-22390-E1i201208-201611
IVORY,TRIM2#
main74272-22390-E2i201611
SHELL,TRIM0#,2#
main74272-22420-C0i201611
BLACK,TRIM2#
main74272-22400i201210-201611
main74272-22410-C0i201407-201611
9046710203
main90467-10203

5 parts on this diagram · 2 diagrams in section
