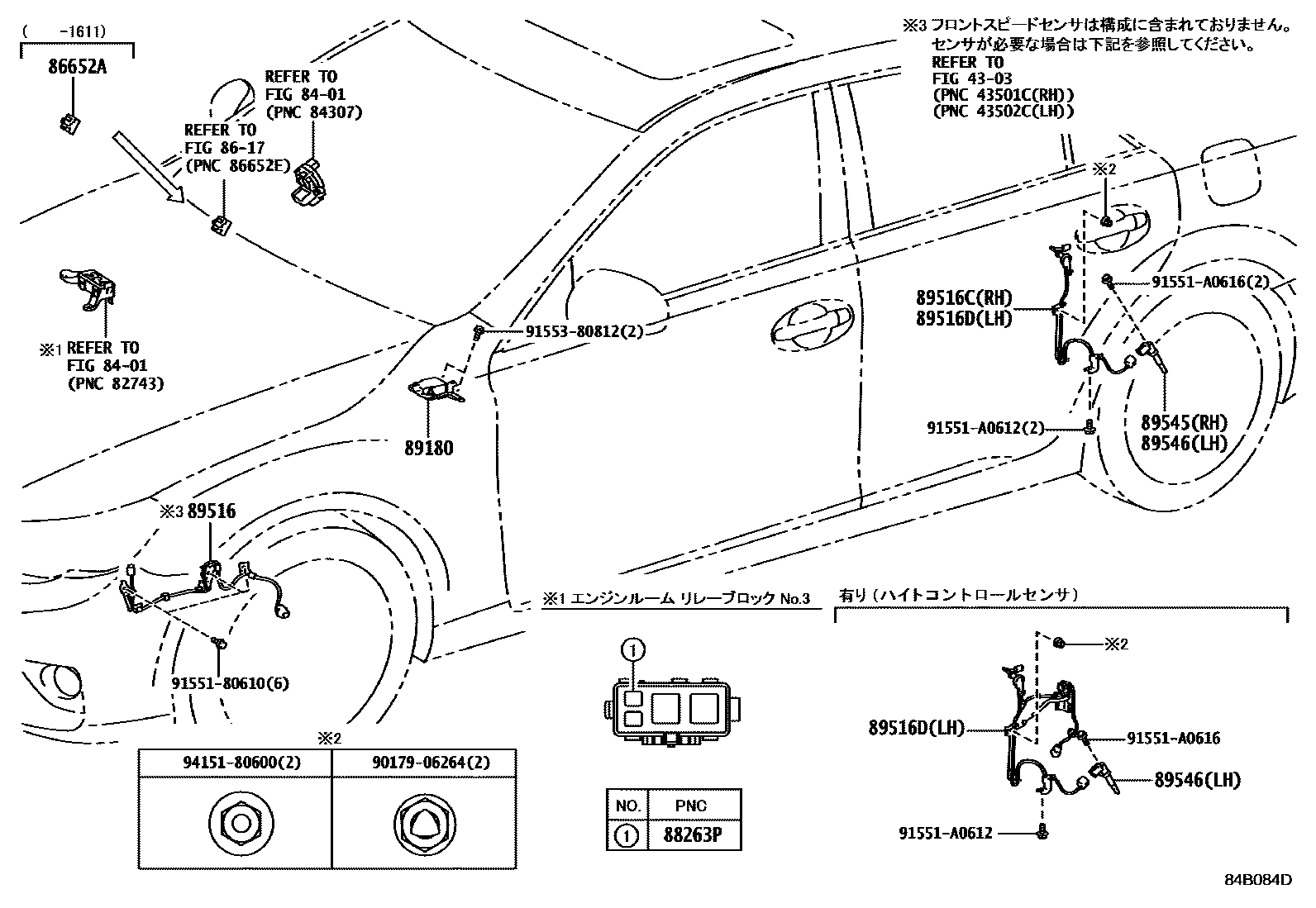

Toyota MARK X — ABS & VSC

0001 1 0002 1

4303

8401

8617

86652ABUZZER ASSY, SKID CONTROL

main86652-50010supersedes 86652-50010iGRX133..350S200910-201208

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGRX133201208-201611

89180SENSOR ASSY, YAWRATE

main89180-22030iGRX13#201811

main89180-30090iGRX13#201208-201611

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGRX130,133200910-201203

main89516-30030iGRX130,133200910-201208

main89516-30040iGRX135200910-201203

main89516-30050iGRX135200910-201208

main89516-30150iGRX130,133201208-201611

main89516-30190iGRX135201611

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-22020iGRX13#201611

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-22040iGRX13#200910-201208

main89516-22010iGRX130,135200910-201208

89545SENSOR, SPEED, REAR RH

main89545-30070iGRX13#200910-201208

89546SENSOR, SPEED, REAR LH

main89546-30070iGRX13#200910-201208

9017906264

main90179-06264

9155180610

main91551-80610

91551A0612

main91551-A0612

91551A0616

main91551-A0616

9155380812

main91553-80812

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
