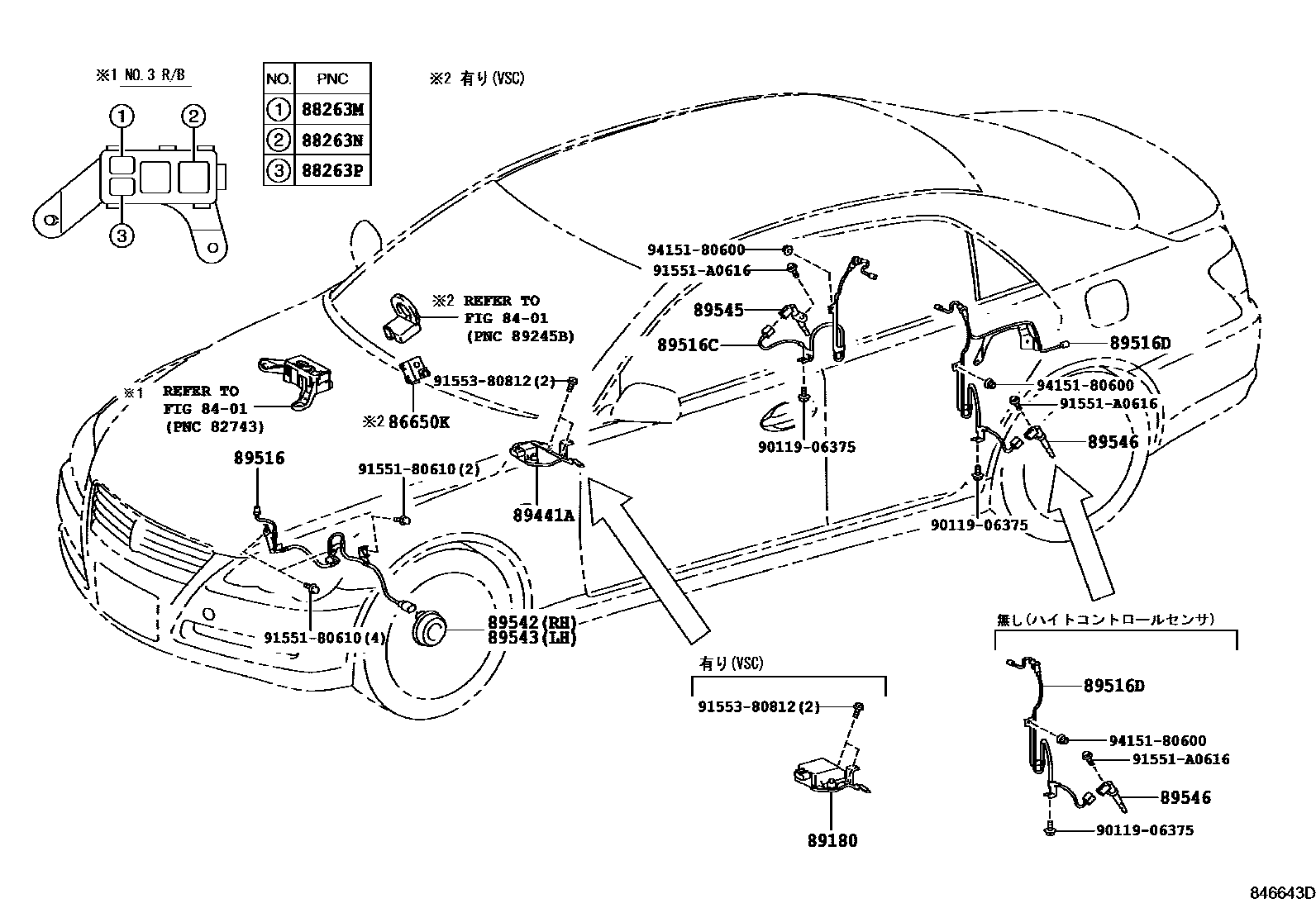

Toyota MARK X — ABS & VSC

0001 1 0002 1

8401

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iGRX121..300GP200411-200610

88263MRELAY, ABS SOLENOID

main88263-32070iGRX121..300GP200411-200610

88263NRELAY, ABS MOTOR

main88263-21010iGRX121..300GP200411-200610

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGRX121..300GP200411-200610

89180SENSOR ASSY, YAWRATE

main89180-22020iGRX121..300GP200610

89441ASENSOR, DECELERATION

main89440-22040iGRX12#..250G,300G200610

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGRX120,121200610-200909

sub89516-30150

main89516-30030iGRX120,121200610-200909

main89516-30040iGRX125200411-200610

sub89516-30190

main89516-30050iGRX125200411-200610

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-22020iGRX12#200411-200610

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-22010iGRX120,125200411-200610

89542SENSOR, SPEED, FRONT RH

main89542-30260iGRX120,121200411-200610

main89542-30270iGRX125200610-200909

89543SENSOR, SPEED, FRONT LH

main89543-30260iGRX120,121200610-200909

main89543-30270iGRX125200610-200909

89545SENSOR, SPEED, REAR RH

main89545-30070iGRX12#200411-200610

89546SENSOR, SPEED, REAR LH

main89546-30070iGRX12#200411-200610

9011906375

main90119-06375

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
