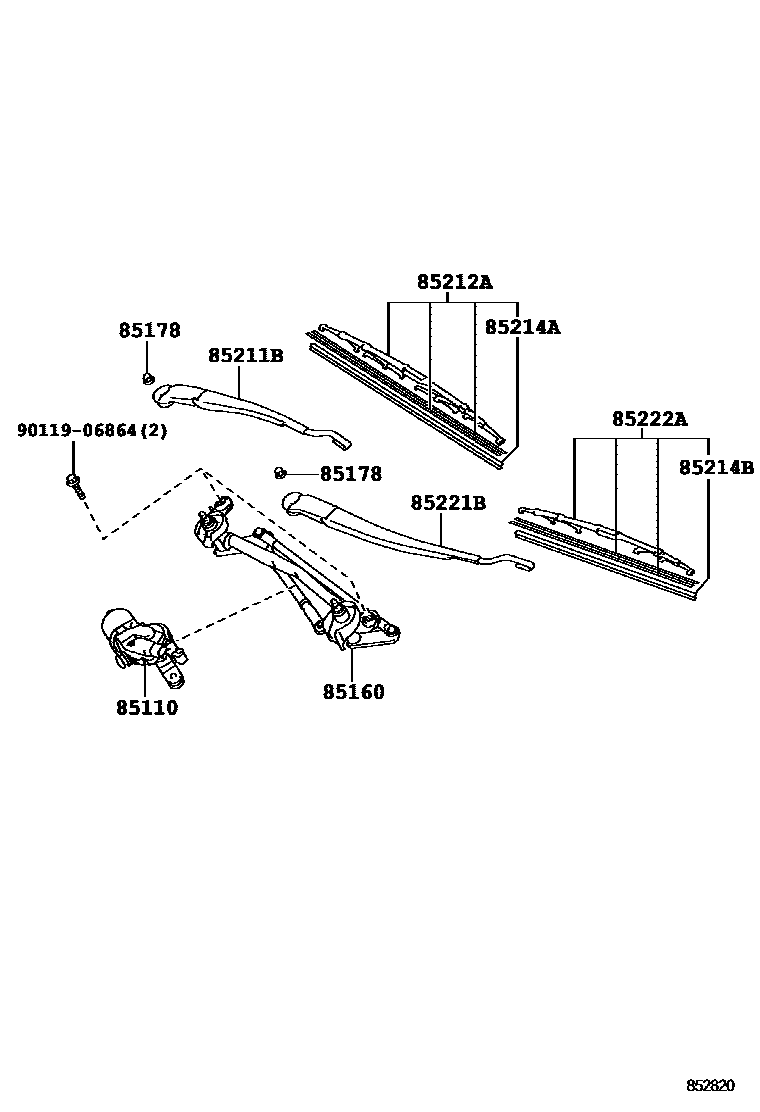

Toyota MARK X — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22630iGRX130201112-201208

85160LINK ASSY, WINDSHIELD WIPER

main85150-22600iGRX130201112-201208

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iGRX130201112-201208

85211BARM, FRONT WIPER, RH

main85211-22510iGRX130201112-201208

main85211-22530iGRX130201208

85212ABLADE, FR WIPER, RH

main85212-22450iGRX130201208

main85212-30370iGRX130201112-201208

85214ARUBBER, WIPER, RH

main85214-30380iGRX130201208

main85214-50100iGRX130201112-201208

85214BRUBBER, WIPER, LH

main85214-28090iGRX130201208

main85214-50061iGRX130201112-201208

85221BARM, FRONT WIPER, LH

main85221-22410iGRX130201112-201208

85222ABLADE, FR WIPER, LH

main85222-12A20iGRX130201208

main85222-13041iGRX130201112-201208

9011906864

main90119-06864

10 parts on this diagram · 1 diagram in section
