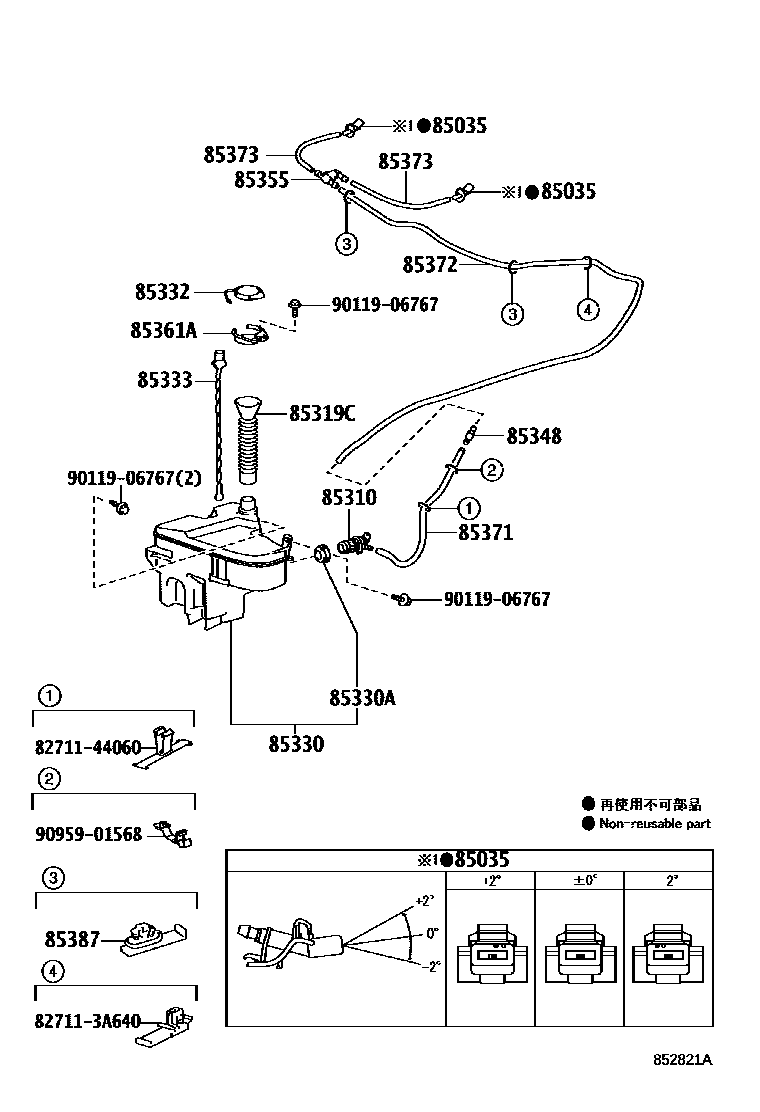

Toyota MARK X — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300i201112-201208

ANGLE 0

main85381-12310i201112-201208

ANGLE -2

main85381-12320i201112-201208

ANGLE +2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201112-201208

85319CHOSE, WASHER

main85319-30360i201112-201208

85330JAR ASSY, WINDSHIELD WASHER

main85315-30360i201112-201208

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201112-201208

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i201112-201208

85333FILTER, WINDSHIELD WASHER JAR

main85312-30080i201112-201208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201112-201208

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201112-201208

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-48060i201112-201208

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201112-201208

L=1450(*H,L=500)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33589i201112-201208

L=3300(*H,L=1900)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i201112-201208

L=1450(*H,L=370)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090i201112-201208

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

9011906767

main90119-06767

9095901568

main90959-01568

18 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota MARK X

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MARK X. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
