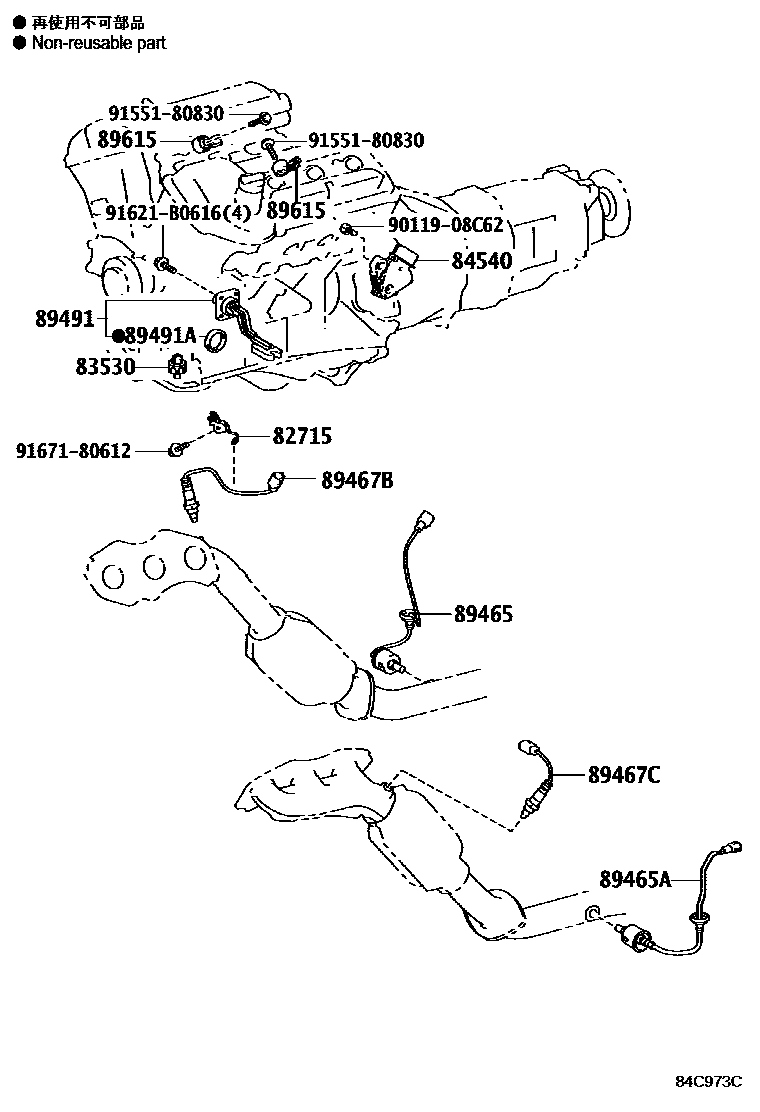

Toyota MARK X — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1SEAT 0008 1DOOR,ROOF,FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-22850iGRX130201208

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRX130201112-201208

DENSO

main83530-60020iGRX130201112-201208

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRX130201309-201611

(L)

main84540-71010iGRX130201208-201309

89465SENSOR, OXYGEN

main89465-30730iGRX130201208

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRX130201208

89467BSENSOR, AIR FUEL RATIO

main89467-22050iGRX130201112-201208

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22030iGRX130201112-201208

89491SENSOR, ENGINE OIL LEVEL

main89491-30061iGRX130201112-201208

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRX130201112-201208

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRX130201112-201208

9011908C62

main90119-08C62

9155180830

main91551-80830

91621B0616

main91621-B0616

9167180612

main91671-80612

14 parts on this diagram · 8 diagrams in section
