Toyota MARK X — SPEAKER

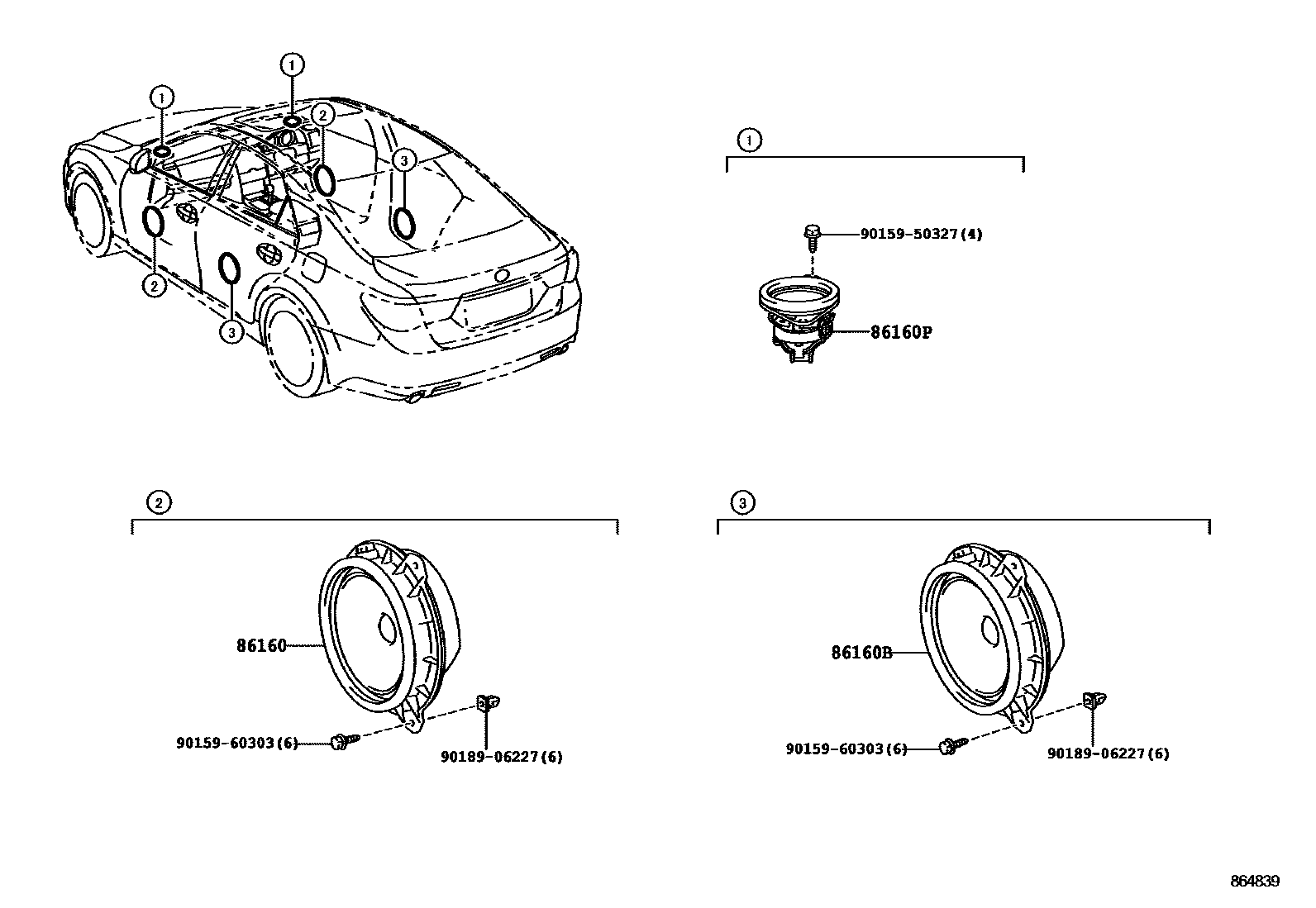

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-2B580i201112-201208

main86160-52300i201208

86160BSPEAKER ASSY, REAR

main86160-2B580i201112-201208

main86160-52300i201208

86160PSPEAKER ASSY, FRONT NO.2

main86160-58260i201112-201208

9015950327

main90159-50327

9015960303

main90159-60303

9018906227

main90189-06227

6 parts on this diagram · 1 diagram in section
