Toyota MARK X — MANIFOLD
1104CYLINDER HEAD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
*114=TOYOTA/R31640/Y
*114=TOYOTA/R31760/Y
17105MANIFOLD SUB-ASSY, EXHAUST, LH
*114=TOYOTA/L31640/Y
*114=TOYOTA/L31760/Y
17111MANIFOLD, INTAKE
17126STAY, SURGE TANK, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17190TANK ASSY, INTAKE AIR SURGE
19517BRACKET, IGNITION COIL COVER
2211FUEL INJECTION SYSTEM
9011006035
main90110-06035
9012606030
main90126-06030
9033909003
main90339-09003
9046714003
main90467-14003
9155180825
main91551-80825
9167110825
main91671-10825
9167180616
main91671-80616
9167180820
main91671-80820
9415180600
main94151-80600
9415180800
main94151-80800
9415180841
main94151-80841

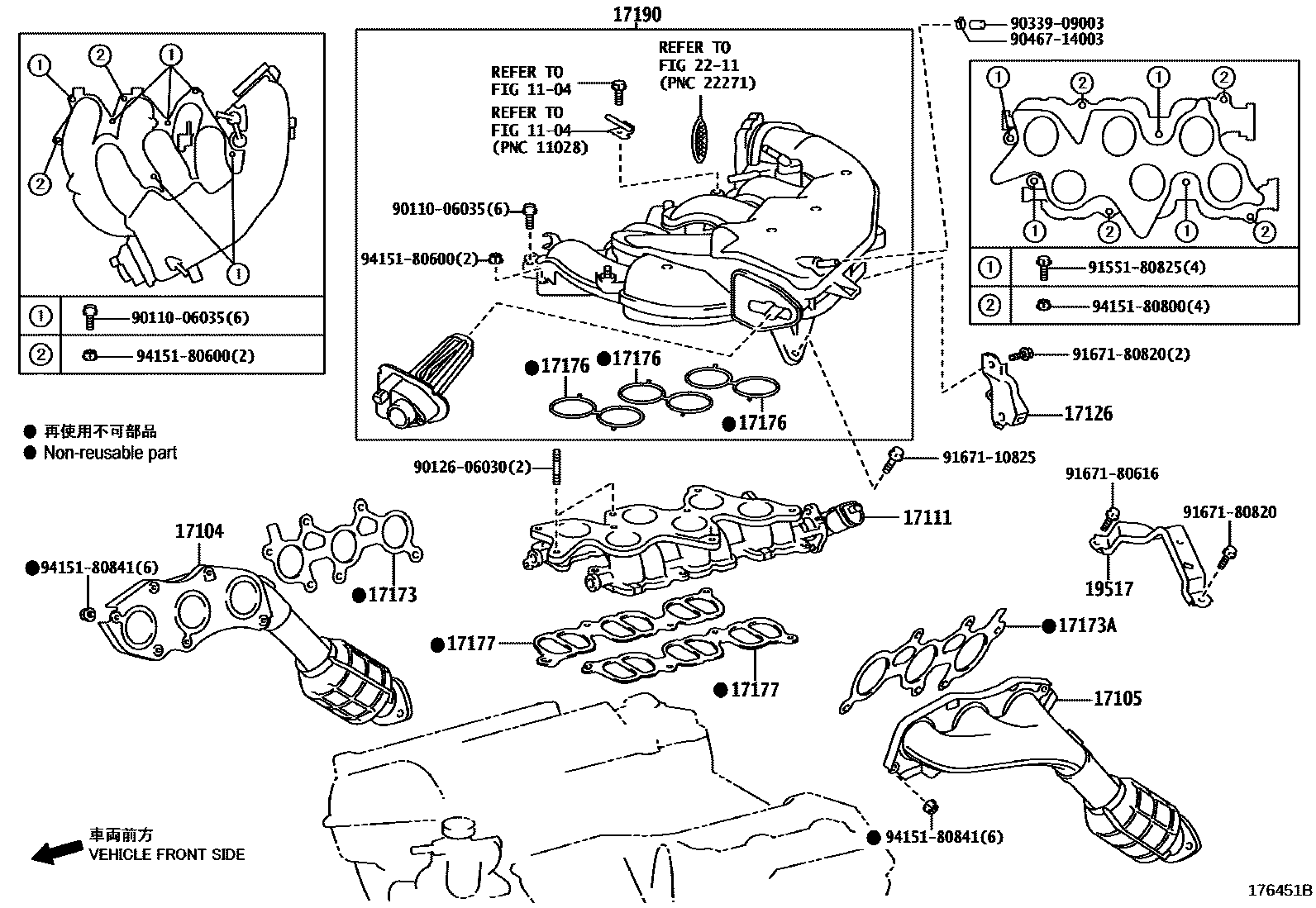

23 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota MARK X
This section contains 23 genuine Toyota parts for the MANIFOLD system of the Toyota MARK X. Key components include: CYLINDER HEAD, MANIFOLD SUB-ASSY, EXHAUST, RH, MANIFOLD SUB-ASSY, EXHAUST, LH, MANIFOLD, INTAKE, STAY, SURGE TANK, NO.2.
